Quick-response Inputs (CPM1/CPM1A Only) Section 2-6
Setting Quick-response
Inputs

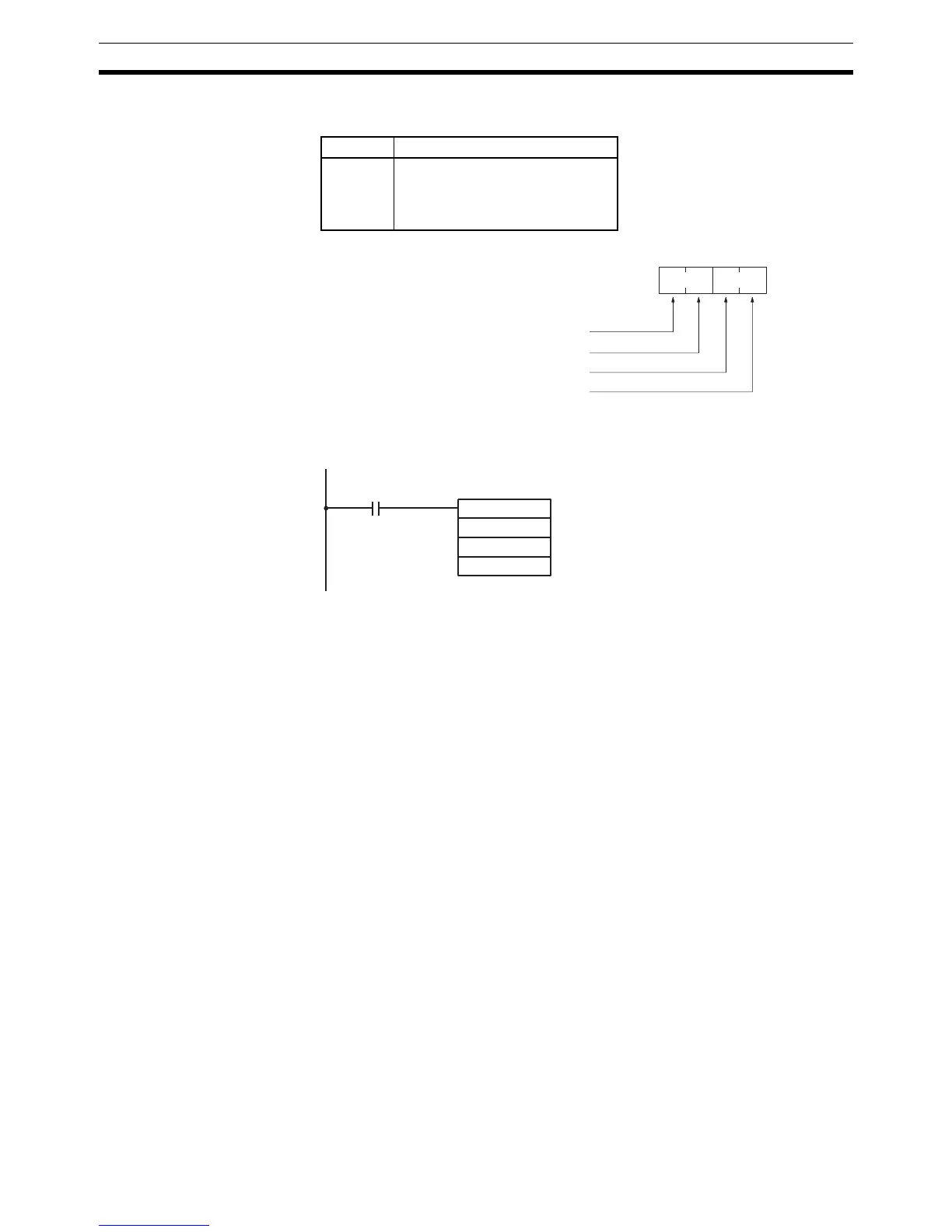

The input bits in the above table can be set as quick-response inputs in
DM 6628, as shown in the following table.
Program Example
In this example, DM 6628 has been set to 0002.
Word Settings
DM 6628 0: Normal input
1: Interrupt input
2: Quick-response input
(Default setting: 0)
15 0
DM 6628
Bit
Setting for input 00006: Set to 2
Setting for input 00005: Set to 2
Setting for input 00004: Set to 2
Setting for input 00003: Set to 2
25315 First Cycle Flag
ON for 1 cycle
@INT(89)
000
000
#000E
Mask/unmask input interrupts.
Unmasks 00003 (interrupt input 0), masks others.
