Documents
Software
Top Foam Insert
Bottom Foam
Insert
Accessories
Shipping
Container
1

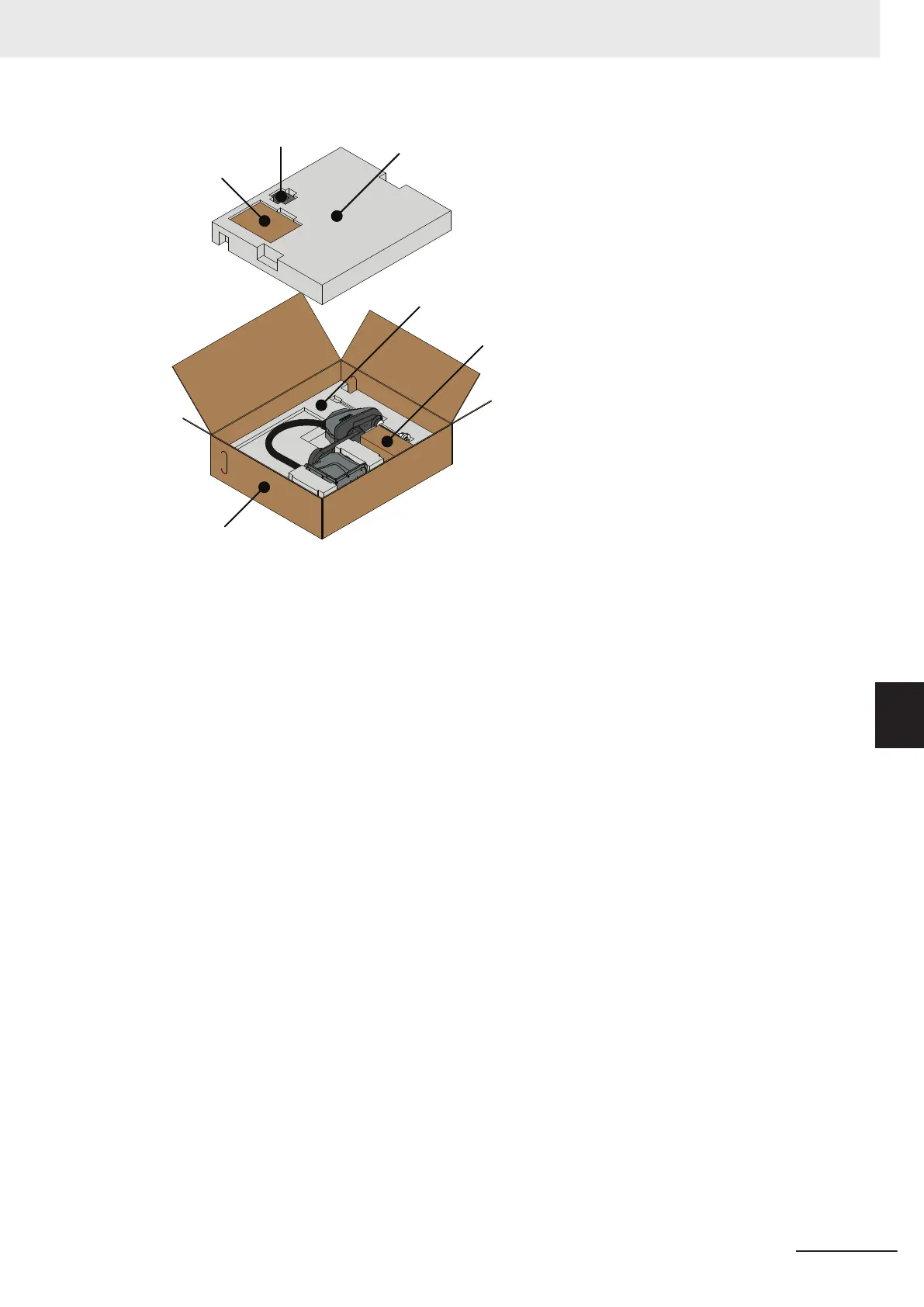

Open the shipping container and remove the top foam insert. Place the top foam insert in a
safe location.
2 Remove the accessories box and place it in a safe location.
3 Lift the robot out of the bottom foam insert using the inner link and base as lifting points. Never
lift the robot by the flyover or quill assemblies.
4 Fasten the robot to the mounting surface using the 3-2-2 Mounting Procedure on page 3-3.
5 Inspect the entire robot for damage before proceeding with further installation. If any damage is
evident, contact your local OMRON representative.
6
After the robot is fastened to the mounting surface, the unpacking procedure is complete.
