Physical Specifications
This section provides physical specifications for the i4L robot.
2-1-1
Robot Overall Dimensions
Use the diagrams below to understand the robot's overall physical dimensions.

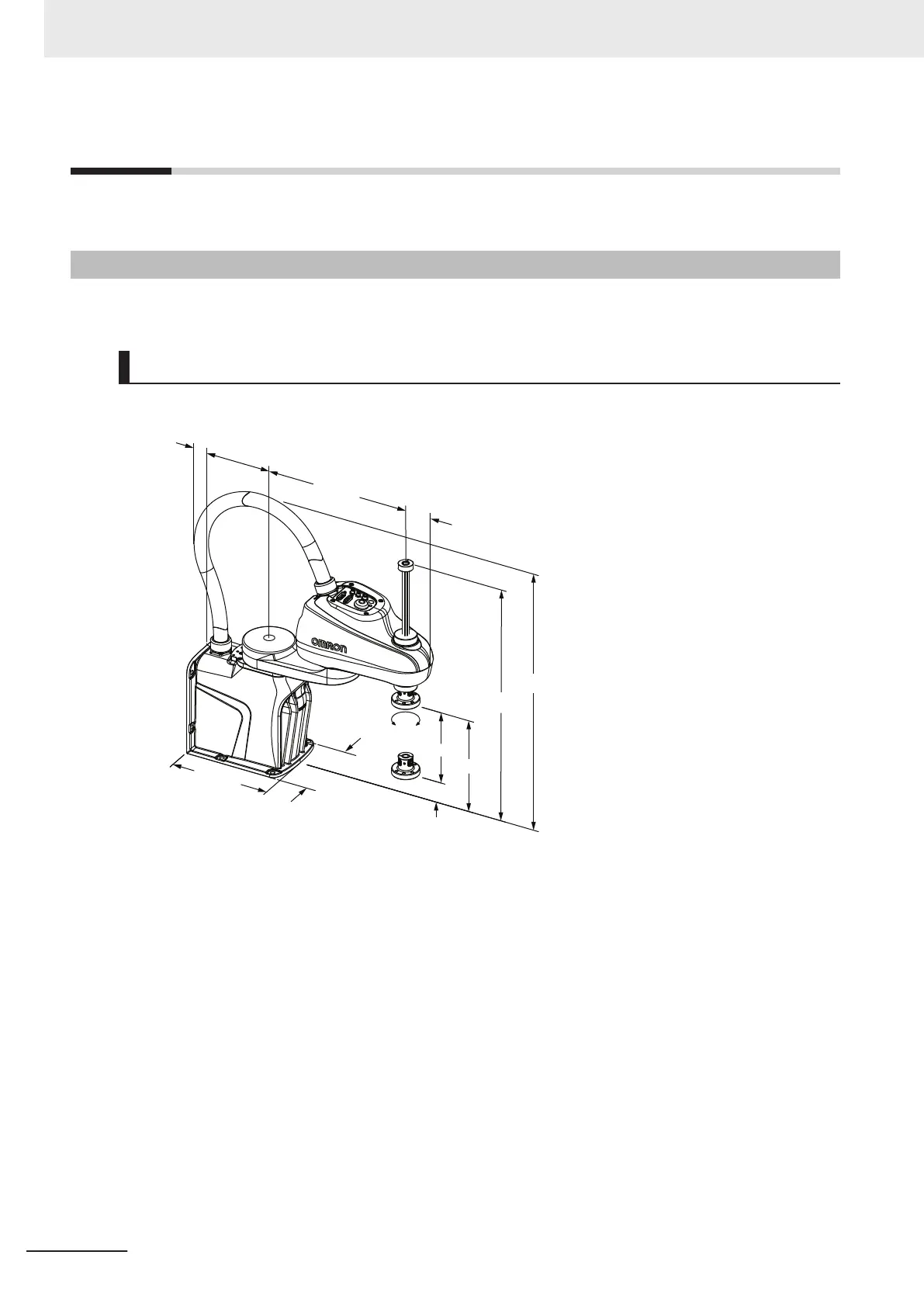

i4-350L Dimensions
Overall dimensions for the i4-350L are provided below.
30 mm
160 mm
350 mm
61 mm
590 mm
656 mm
+/- 360°
180 mm
232.5 mm
52.5 mm
180 mm
240 mm
