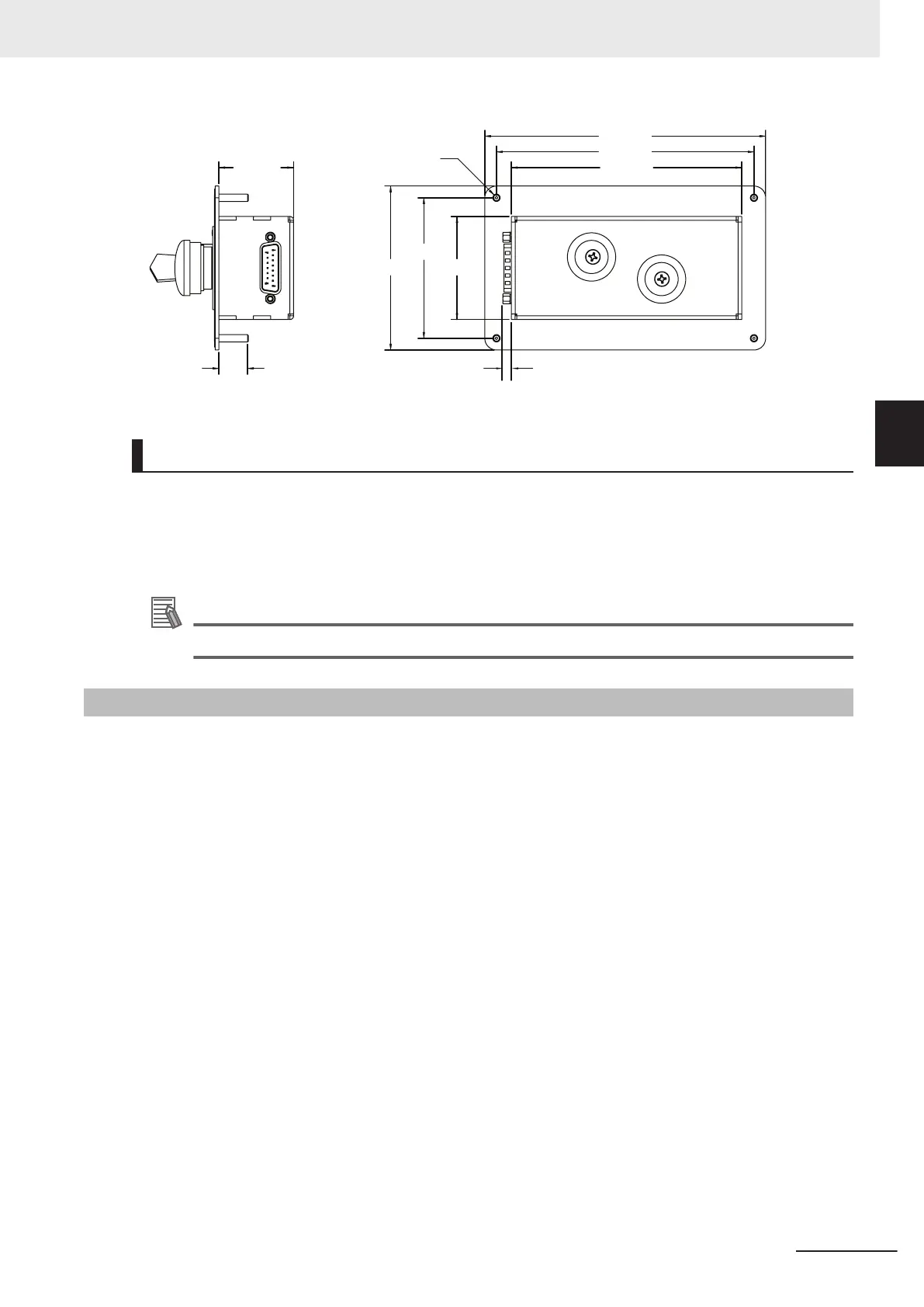

56 mm
76 mm
89 mm
125 mm
152 mm
140 mm
41 mm
16 mm
Ø 4 mm
5 mm
Front Panel Connections
The Front Panel is connected directly to the XFP connector on the XSYSTEM cable with the 3 m ex-
tension cable supplied with the Front Panel as shown in the figure below.
• The part number of the extension cable is 10356-10500.
• The length of the extension cable is 3 m.
Additional Information
Refer to XFP Connections on page 3-23 for more information.
3-8-2
Safety Circuits
The XSYSTEM cable provides connections for all emergency stop circuits. All emergency stop circuits
are dual-channel and voltage-free. These voltage-free contacts are provided by a redundant, cyclical-
ly-checked, positive-drive, safety relay circuit for Category 3 PL-d per ISO 13849 operation.
The XUSR connector provides access to the following safety circuits.
• Dual channel emergency stop inputs.
• Dual channel emergency stop status outputs.
• Dual channel muted safety gate inputs.
• Dual channel Automatic / Manual mode status outputs.
The XFP connector provides access to the following safety circuits that are typically used with the
Front Panel.
• Dual channel emergency stop inputs.
• Dual channel Automatic / Manual mode selection inputs.
• High power indicator output.
• High power enable input.
• Control power indicator output.
The XMCP connector provides access to the following safety circuits that are use with a connected
Teach Pendant.
• Dual channel E-stop button inputs.
• Dual channel pendant enable switch inputs.
Use the diagram below to understand safety circuits.
3 Installation
3-21
i4L Robots User's Manual (I658)
3-8 Installing Safety Equipment
3
3-8-2 Safety Circuits
