Manual Mode
Automatic Mode
Force-Guided
Relay Cycle
Check Control
Circuit
Muted Safety
Gate
48 VDC High
Power Input
(External)
Internal High
Power
Emergency Stop
Status Outputs
Automatic Mode
Status Outputs
Automatic / Manual
Mode Selection
High Power
Indicator /
Button

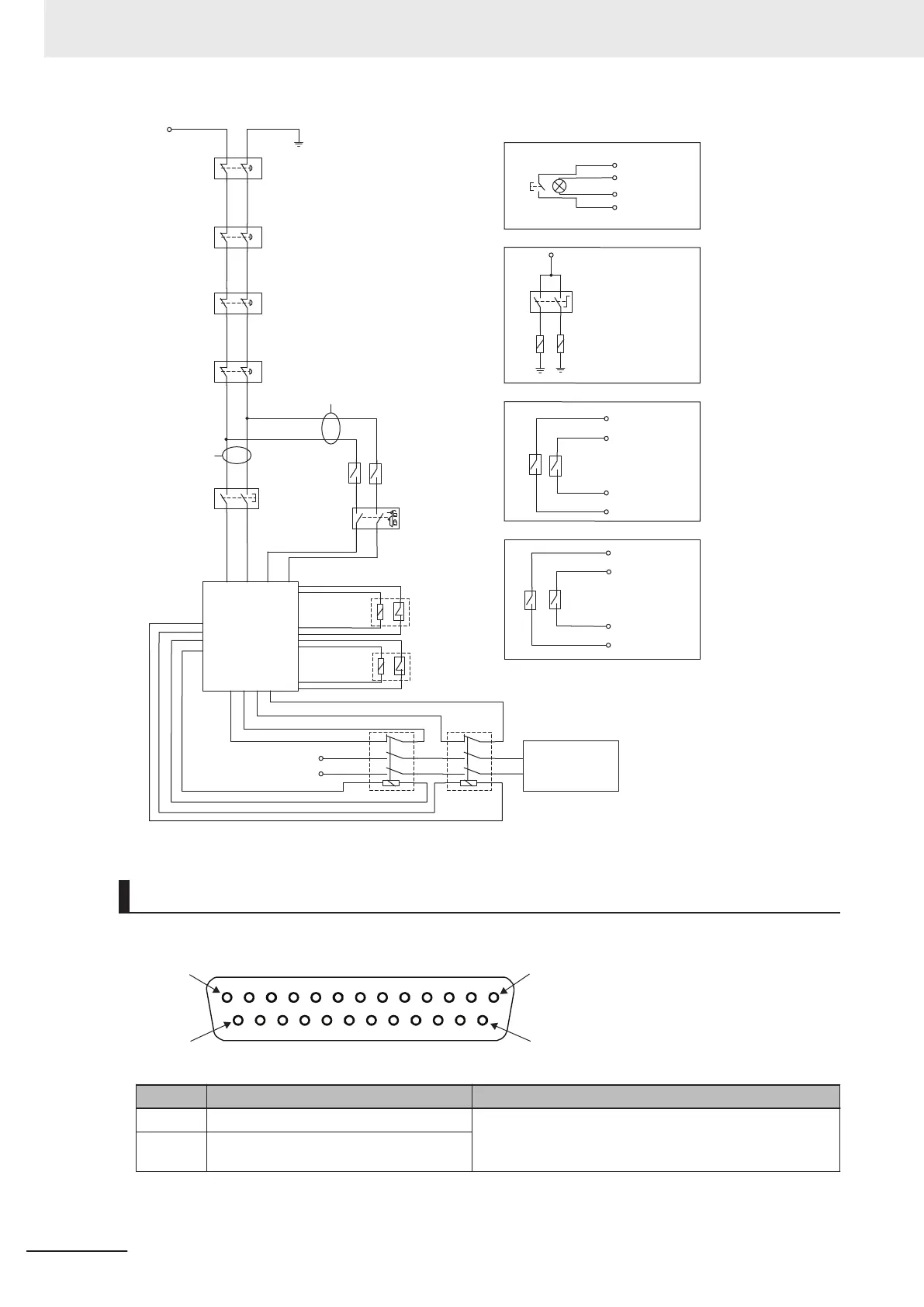

XUSR Connections
Use the information in the following table to understand the signals provided on the XUSR connector.
PIN 1
PIN 14
PIN 13
PIN 25
Pins Description Additional Information
1, 14 Emergency stop channel 1 input Typically connected to normally closed contacts on user-
supplied safety devices such as E-stop buttons, safety
switches, or safety relays.
2, 15 Emergency stop channel 2 input
3 Installation
3-22
i4L Robots User's Manual (I658)

Omron i4L Series Specifications

General

Brand	Omron
Model	i4L Series
Category	Robotics
Language	English
