Chapter 8: Maintenance
This chapter describes periodic maintenance and how to replace user-serviceable parts in an
LD-250. See also: Docking Station Maintenance on page 120.
WARNING: PERSONALINJURYORPROPERTYDAMAGERISK
Use only the specified tools, equipment, lubricants, and Omron-supplied spare
parts to service and maintain the LD-250 according to the specified service
interval. Failure to do so could result in an unsafe operating state than might
result in personal injury or damage to property.
WARNING: PERSONALINJURYORPROPERTYDAMAGERISK
Read and follow the Safety Data Sheet (SDS) for all chemicals, lubricants, and
cleaning materials required for maintenance operations. Contact Omron sup-
port if you do not have the required SDS.

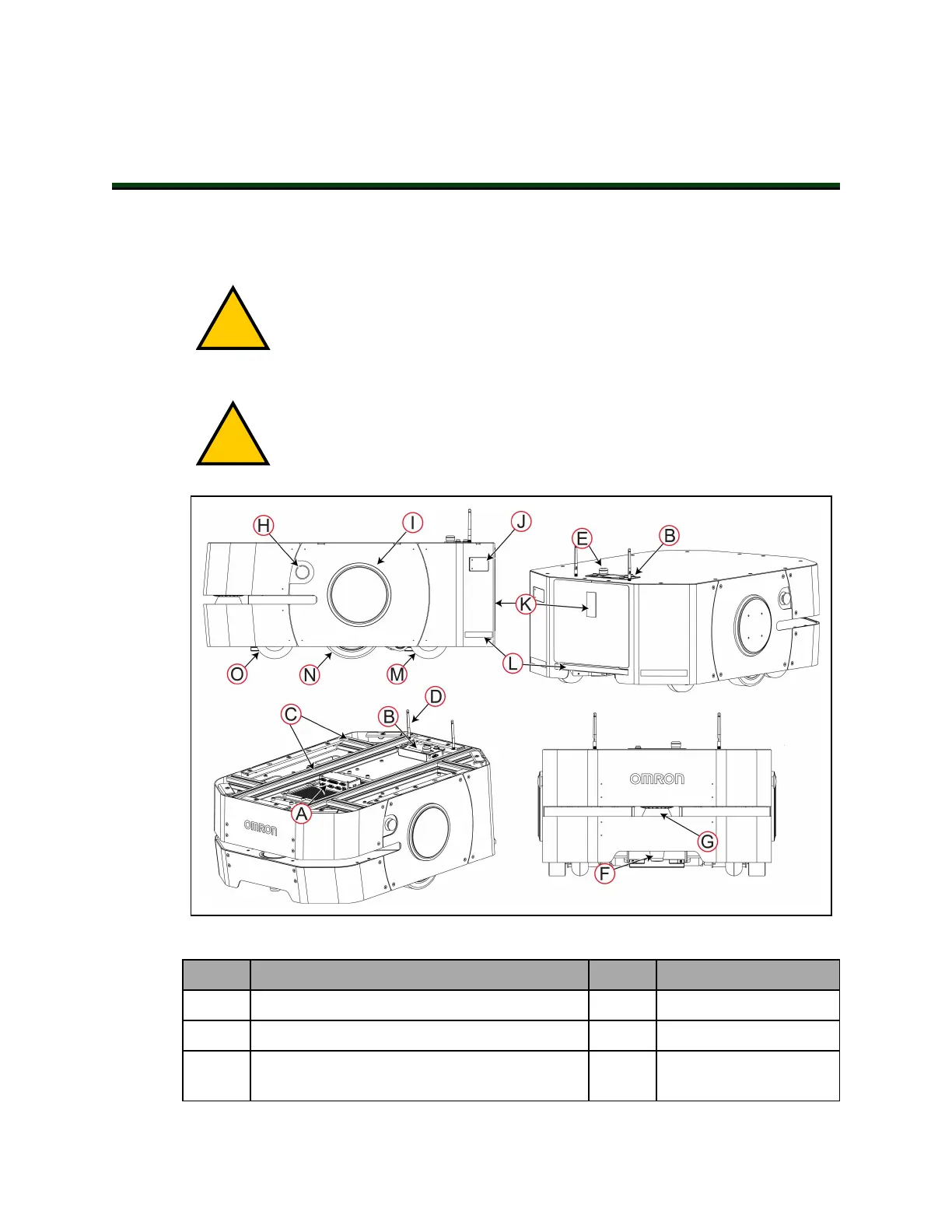

Location of Parts on the LD-250
Callout Description Callout Description
A LD-250 Core I Wheel light discs
B Operator Panel (HMI) J Connection ports
C Load bars K Battery skin (secured by
a latch)
20472-000 Rev B LD-250 Platform User's Guide 141
