Chapter 11: Modify the Safety Zones
11.3 Equipment Required to Modify OS32C Safety Zones
You require the following:
1.

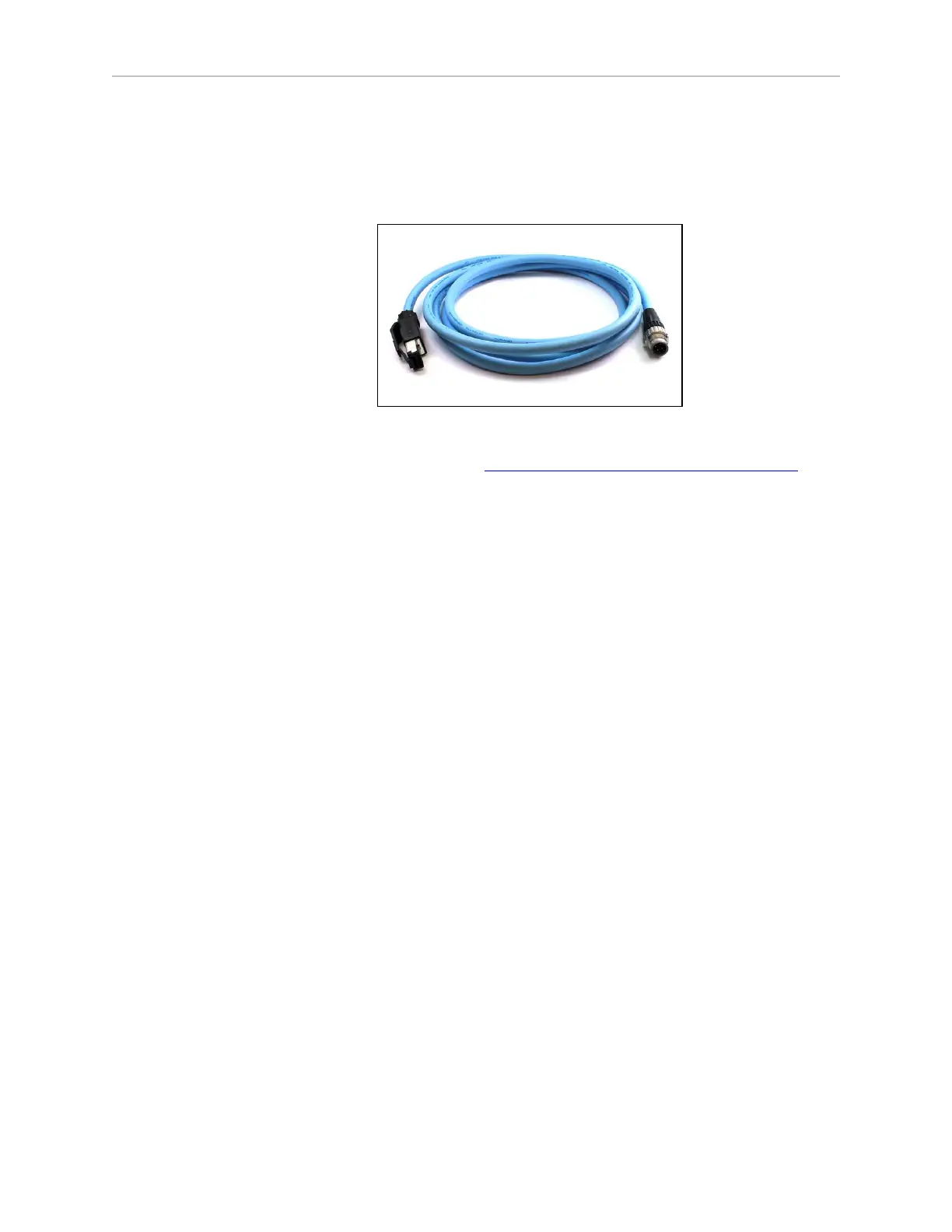

OS32C Laser configuration cable model OS32C-ECBL-XXM, where XX is 02, 05 or 15
meters representing the length of the cable.
2.
PC running a supported version of Windows (see the Configuration Tool specifications).
3.
The OS32C Configuration Tool. See: https://industrial.omron.us/en/products/os32c.
4.
OS32C Laser, properly installed, leveled, and cabled on the target AMR.
Follow the instructions in the Laser documentation, available for download from the Omron
Web site in your locale.
You should follow an iterative process of testing and adjusting the safety zone sizes using suit-
able sample obstacles (specified in industry standards) to determine that the fully-loaded AMR
can decelerate and stop safely.
20472-000 Rev B LD-250 Platform User's Guide 199
