Chapter 3: Setup

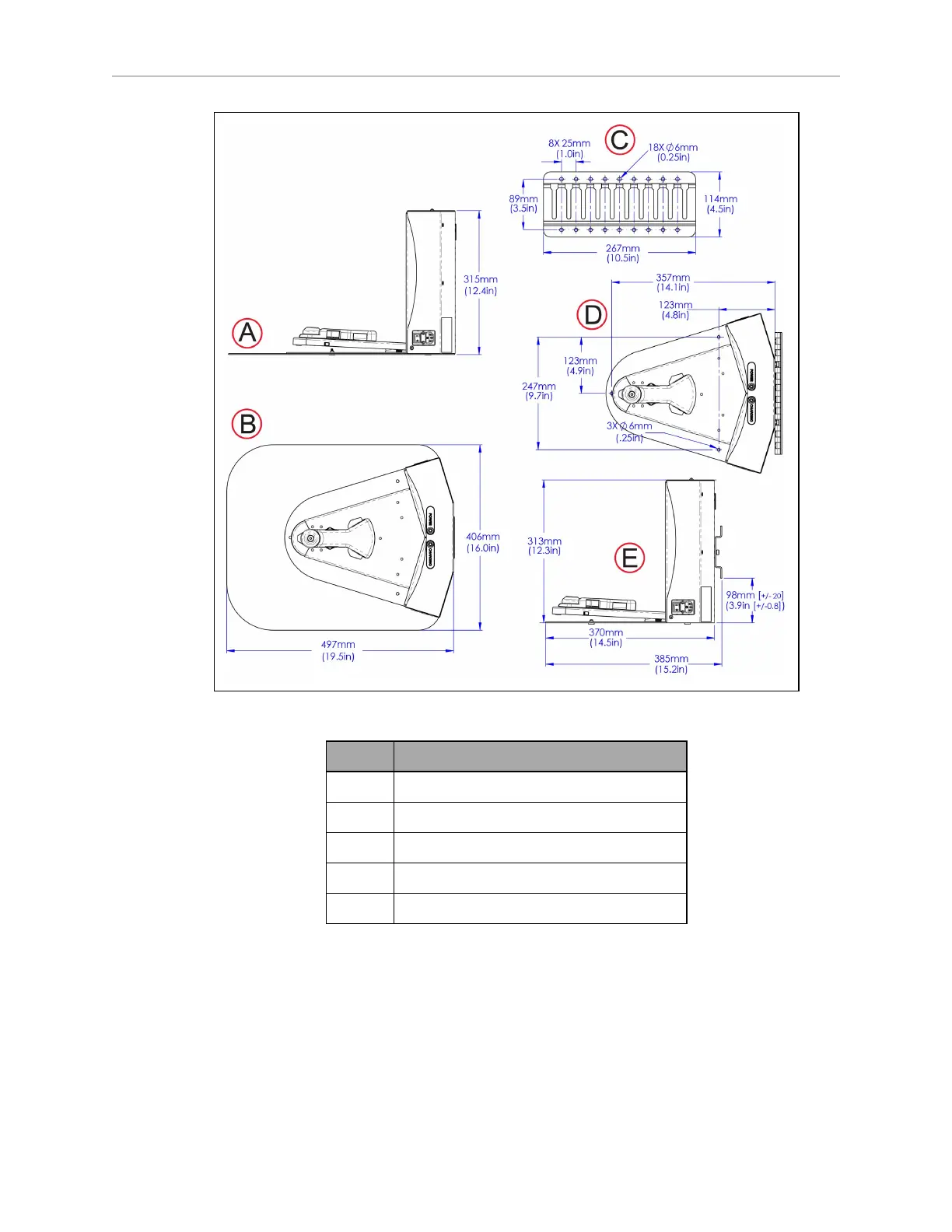

Figure 3-14 Docking Station Dimensions
Callout Installation Method and Orientation
A Free standing, side view
B Free standing, side view
C Wall mount bracket
D Wall and floor mount, top view
E Wall and floor mount, side view
Wall Bracket Mount
1.
Fasten the docking station mounting bracket to a wall, with the bottom edge of the
bracket 98±20 mm (3.8±0.8 inches) above the floor.
2.
Fasten two shoulder bolts, each with a washer, into the rear of the docking station.
Tighten to 9 N·m (80 in-lb).
