Chapter 10: Technical Specifications
This chapter lists the LD-250's specifications, operating requirement and system limits.
10.1 Dimension Drawings
962.60
488
44.96
298.21 271.79
380.01
382.01
178.36
B
H
G
F
E
D
C
A
I
J

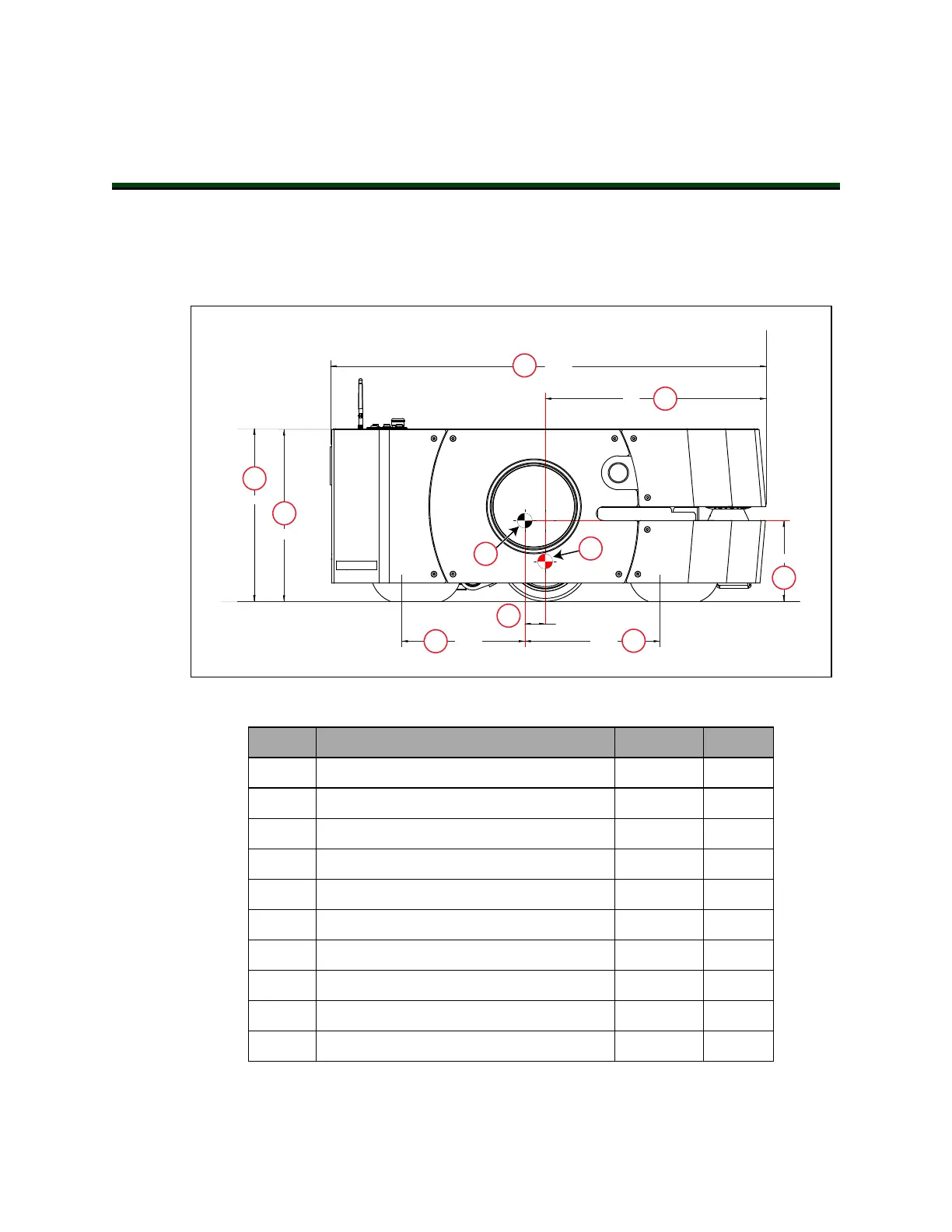

Figure 10-1 Length Dimensions From Side of AMR
Callout Description MM Inch
A Length 963 38
B Height to top cover plate 383 15
C Height to load bars in the payload bay 380 15
D Front to wheel axis 488 19
E Center of gravity to the floor 178 7
F Rear caster axle to center of gravity 272 11
G Front caster axle to center of gravity 298 12
H Wheel axis to center of gravity 45 2
I Center of gravity N/A N/A
J Center of rotation N/A N/A
