5.2 Considerations

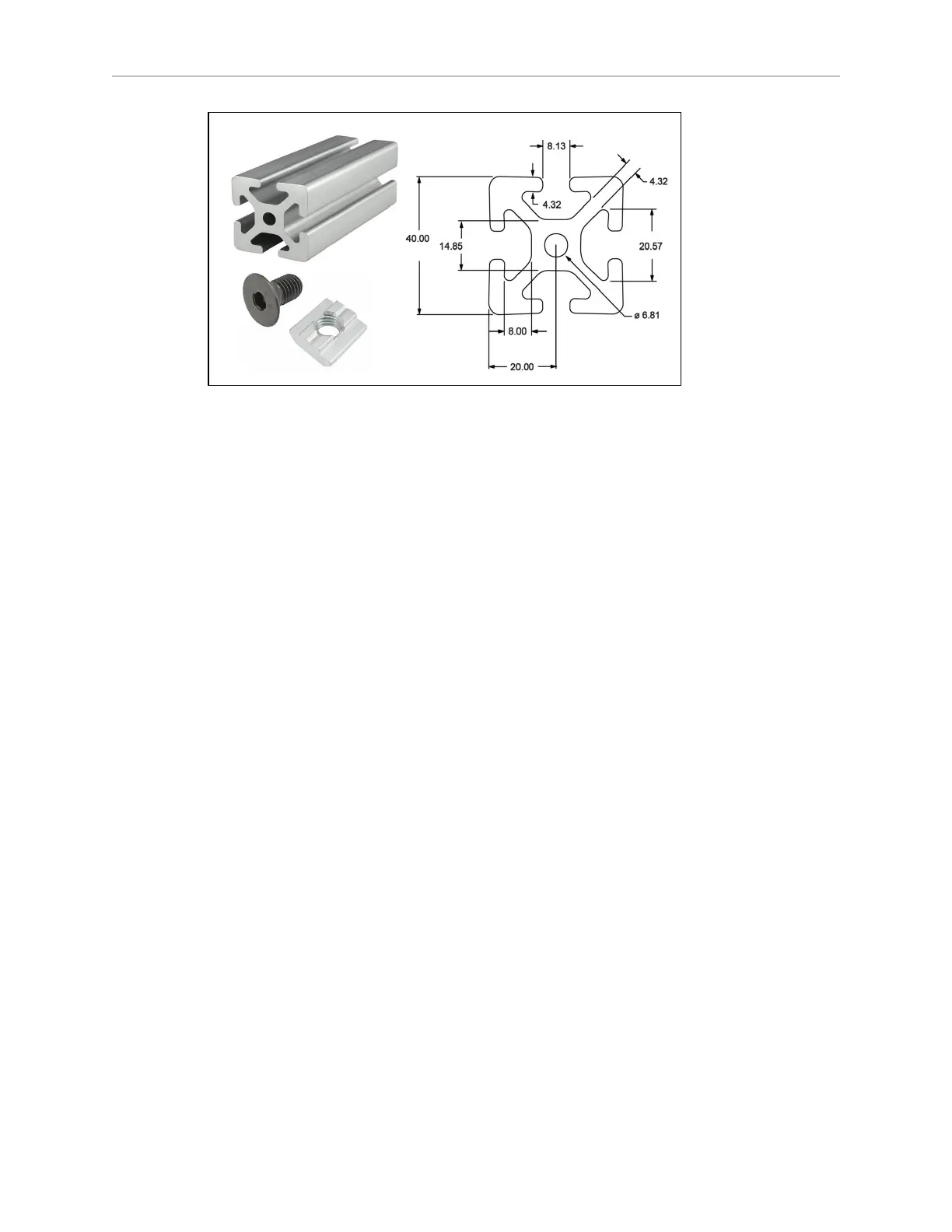

Figure 5-2 Payload Mount Extrusion, Dimensions in Millimeters and T-nut
These extrusions bear the main structural load of any payload, transferring stresses directly to
the LD-250's formed steel chassis. You can easily adjust and move your payload in rela-
tionship to the LD-250's center of gravity (see: Center of Gravity (CG) on page 86).
