5-77
5-16 User Parameters
5
Operating Functions
Explanation of Settings
• Use this parameter to set the phase−B logic for pulse output (−B: CN1 pin 48, +B: CN1 pin 49).
• This parameter can be used to invert the output direction of the phase−B pulse to reverse the
relation of the phase−B pulse to the phase-A pulse.
Pn46
Encoder Output Direction Switch
Setting range 0 or 1 Unit --- Default setting 0
Power OFF→ON
Yes

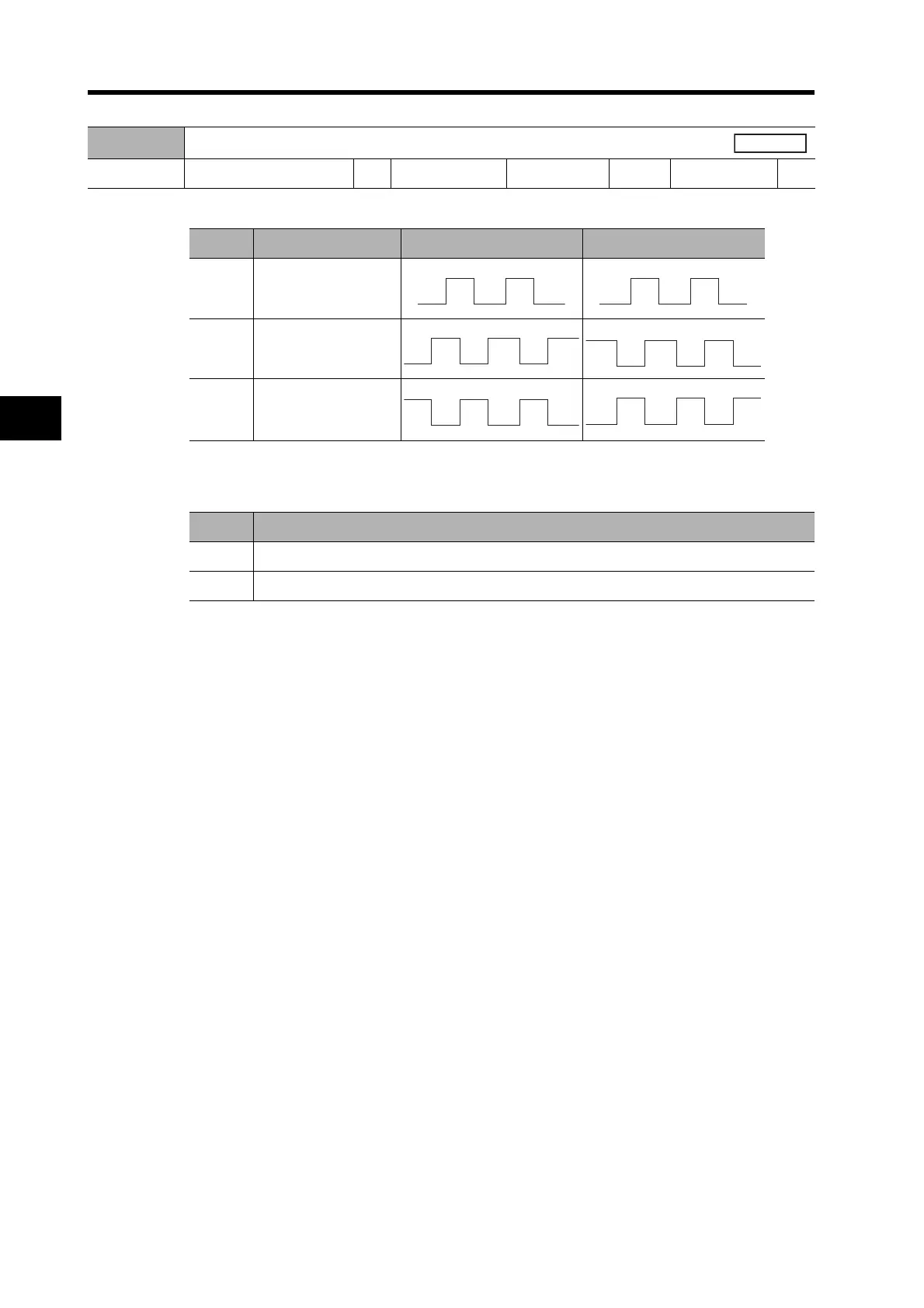

Setting Phase Forward motor operation Reverse motor operation
--- Phase A
0 Non-inverted phase B
1 Inverted phase B
Setting Explanation
0Phase
−B output: Not inverted, Output source: Encoder position
1Phase
−B output: Inverted, Output source: Encoder position
