ZFX-C User’s Manual
Setting Calibration by Specifying Points
With this method, calibration is set by specifying desired points (in pixel units). When the actual coordinates of
a specified position are input, the calibration data is automatically calculated.
Setup method
X
MENU mode - [Setup] - [Cameras] - [Camera 0/1] - [Calibration] - [Specifying point]

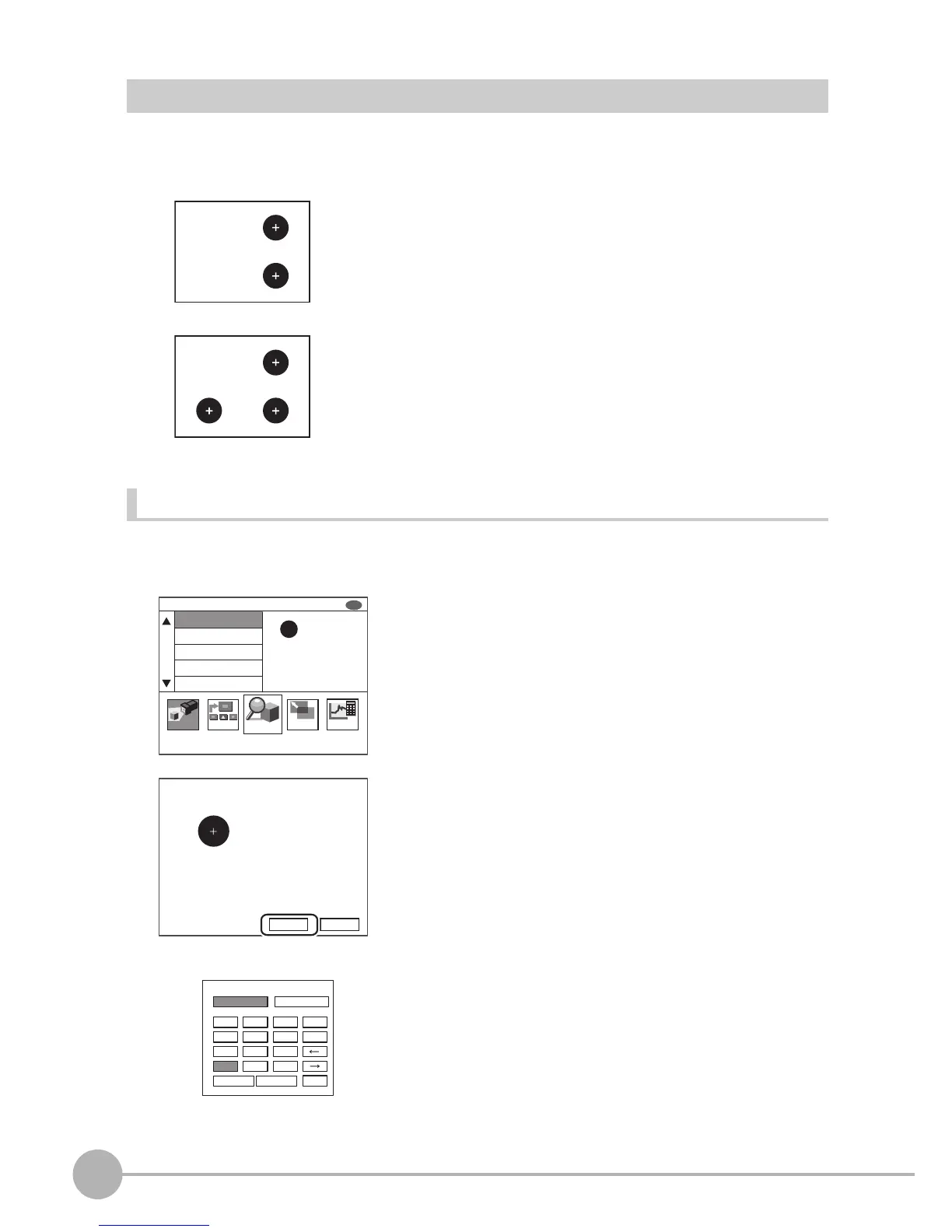

1 Place the measurement target at the 1st point, and se-
lect either [Set 2 places.] or [Set 3 places.].
2 Move the crosshair cursor to the 1st point, and select
[Apply].
3 Input the actual coordinates of the 1st point.
When the scale in the X and Y directions is the same
Specify 2 locations and input the actual coordinates.
When each of the scales in the X and Y directions are different
Specify 3 locations and input the actual coordinates.
To Next Page
