Omron ZFX-C User Manual

Connection
158
ZFX-C User’s Manual
Parallel I/O Connector 1 (Extended Parallel Port)

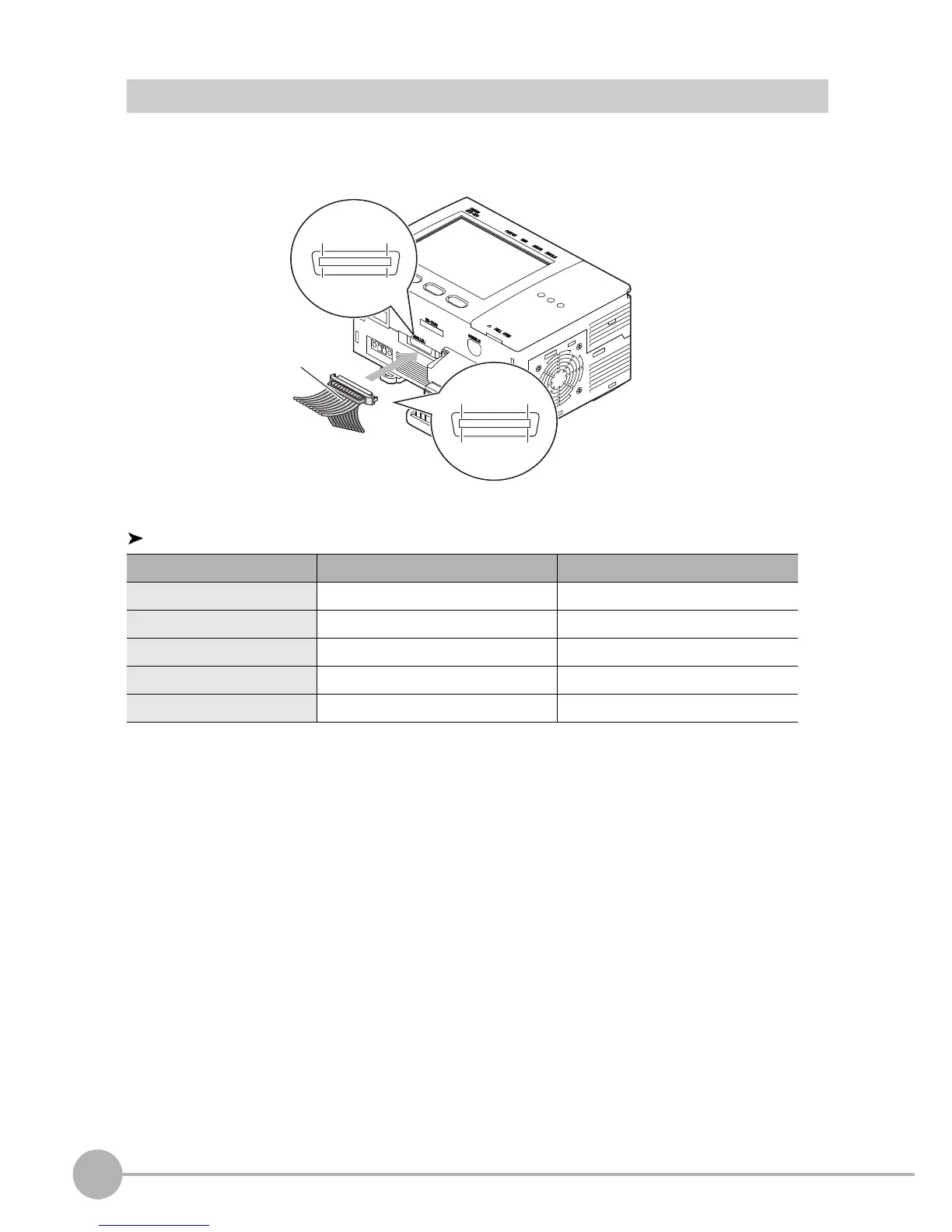

Hold down the two latch locks on both sides of the connector of the parallel I/O cable (ZFX-VP) to unlock the connector,
and connect it to the Controller's parallel I/O connector 1.
To lock the connector again, release the latch locks.
.
Specification of a parallel I/O cable
Item Connector Flat cable
Manufacturer name
Hirose electric Co. Ltd.
Hitachi Cable, Ltd.
Model number FX2B-20SA-1.27R UL20012-ST10X28AWG
Electric wire size (thickness) -
0.89 mm
Total cable width -
12.70 mm
Cable length -
2 m/5 m
2
3
4
1
20
20
11
11
10
10
1
1
Pin No.
2011
101
Pin No.
Parallel I/O cable
ZFX-VP (2 m/5 m)
