Mounting and Connecting Devices
ZFX-C User’s Manual
1
BEFORE USE
23

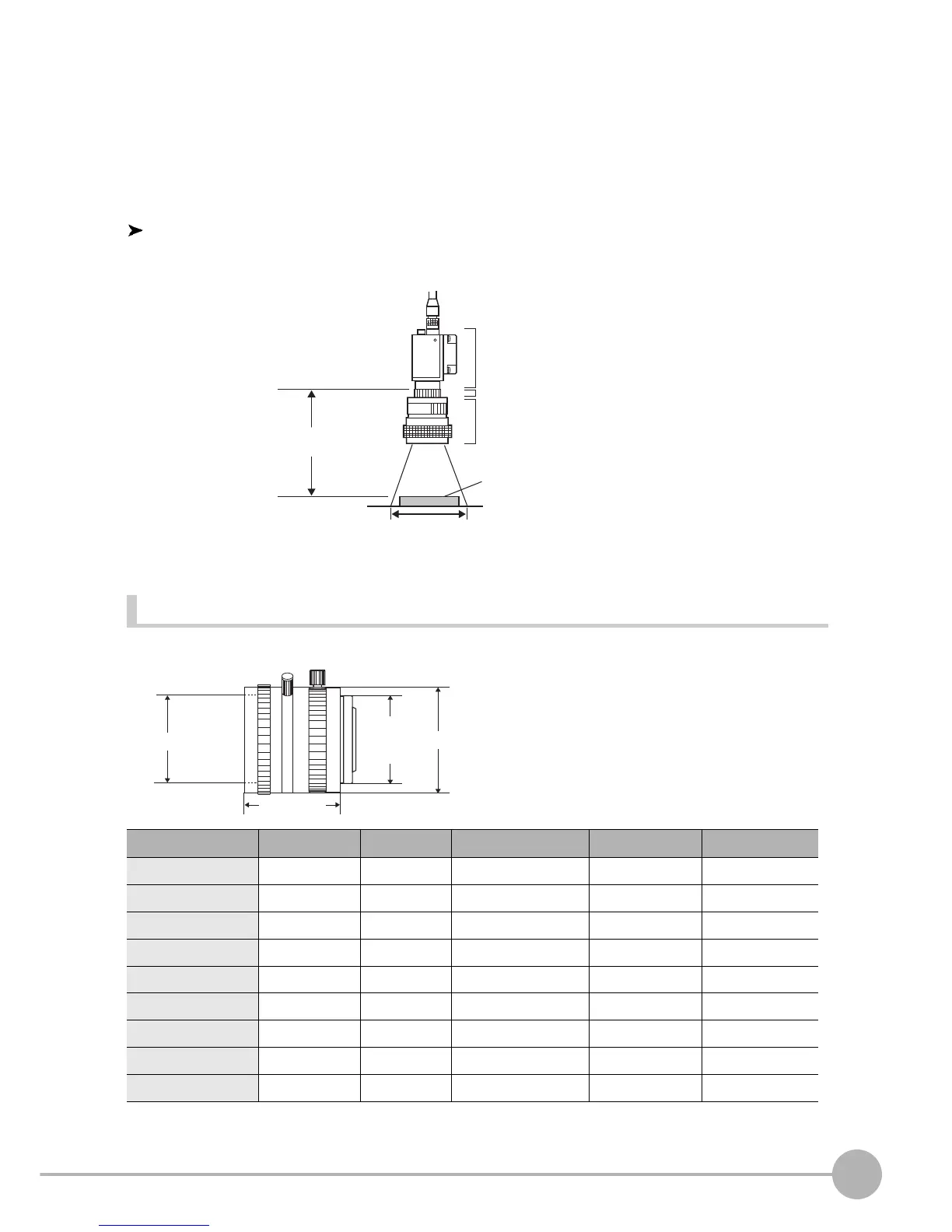

The X axis of the optical chart shows detection range L (mm), and the Y axis shows the camera distance A
(mm). The curves on the optical chart show the relationship between the detection range and camera distance
for each CCTV lens. The values are significantly different for each lens, so double-check the model of the lens
before using the graph. The “t” values indicate the lengths of the Extension Tubes. The value “t0” shows the
case where an Extension Tube is not required and the value “t5.0” shows the case where a 5-mm Extension
Tube is used.
Example
When a 3Z4S-LE ML-5018 CCTV Lens is being used and a detection range of 40 mm is required at the
measurement target, a camera distance of 500 mm and 5-mm Extension Tube are required.
Lenses and lens diameters
Lens Focal length Brightness
Maximum outer diameter
Total length Filter size
3Z4S-LE ML-0614 6 mm F1.4 30 mm dia. 30 mm M27 P0.5
3Z4S-LE ML-0813 8 mm F1.3 30 mm dia. 34.5 mm M25.5 P0.5
3Z4S-LE ML-1214 12 mm F1.4 30 mm dia. 34.5 mm M27 P0.5
3Z4S-LE ML-1614 16 mm F1.4 30 mm dia. 24.5 mm M27 P0.5
3Z4S-LE ML-2514 25 mm F1.4 30 mm dia. 24.5 mm M27 P0.5
3Z4S-LE ML-3519 35 mm F1.9 30 mm dia. 29 mm M27 P0.5
3Z4S-LE ML-5018 50 mm F1.8 32 mm dia. 37 mm M30.5 P0.5
3Z4S-LE ML-7527 75 mm F2.7 32 mm dia. 42.5 mm M30.5 P0.5
3Z4S-LE ML-10035 100 mm F3.5 32 mm dia. 43.9 mm M30.5 P0.5
To Next Page
