Inspection Setup and Measurement
40
ZFX-C User’s Manual
Setting measurement regions

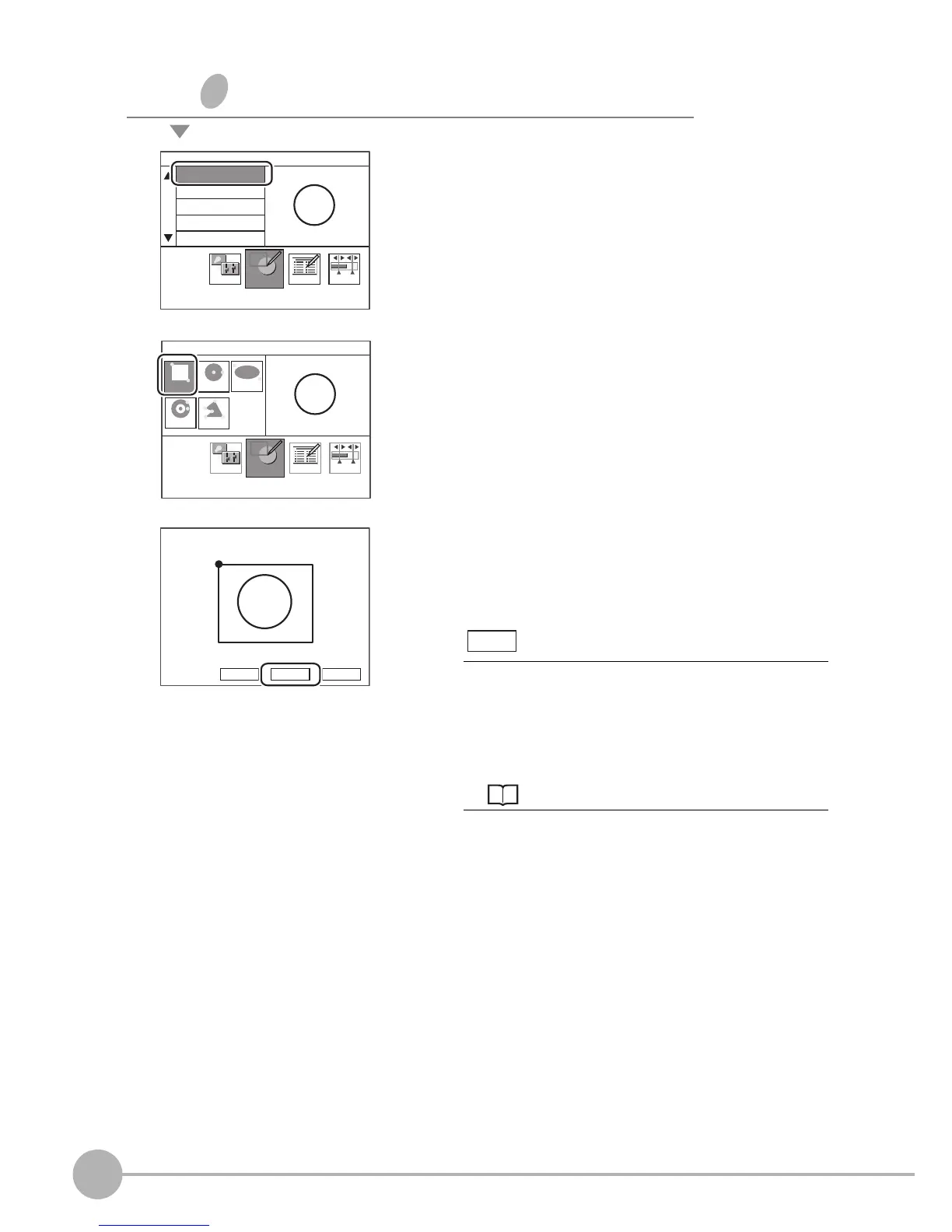

1 Select [Register model].
2 Select [Box].
3 Enclose the desired measurement area.
First, move the region. Next, select [Size] and apply the
size.
4 Select [Apply].
The location of the region can be changed or the region
resized by the amount of drag movement if you drag any-
where on screen. (The drag start position need not be the
line of the region.) To set a region on top of [Cancel] or
other buttons at the bottom of the screen, drag somewhere
else on screen.
Setting the Region p.213
