NOTE:
The osets are applied in the non-rotated frame of the detected workpiece.
For this reason, it is more intuitive to adjust the picking osets first, and the
picking orientation afterwards.

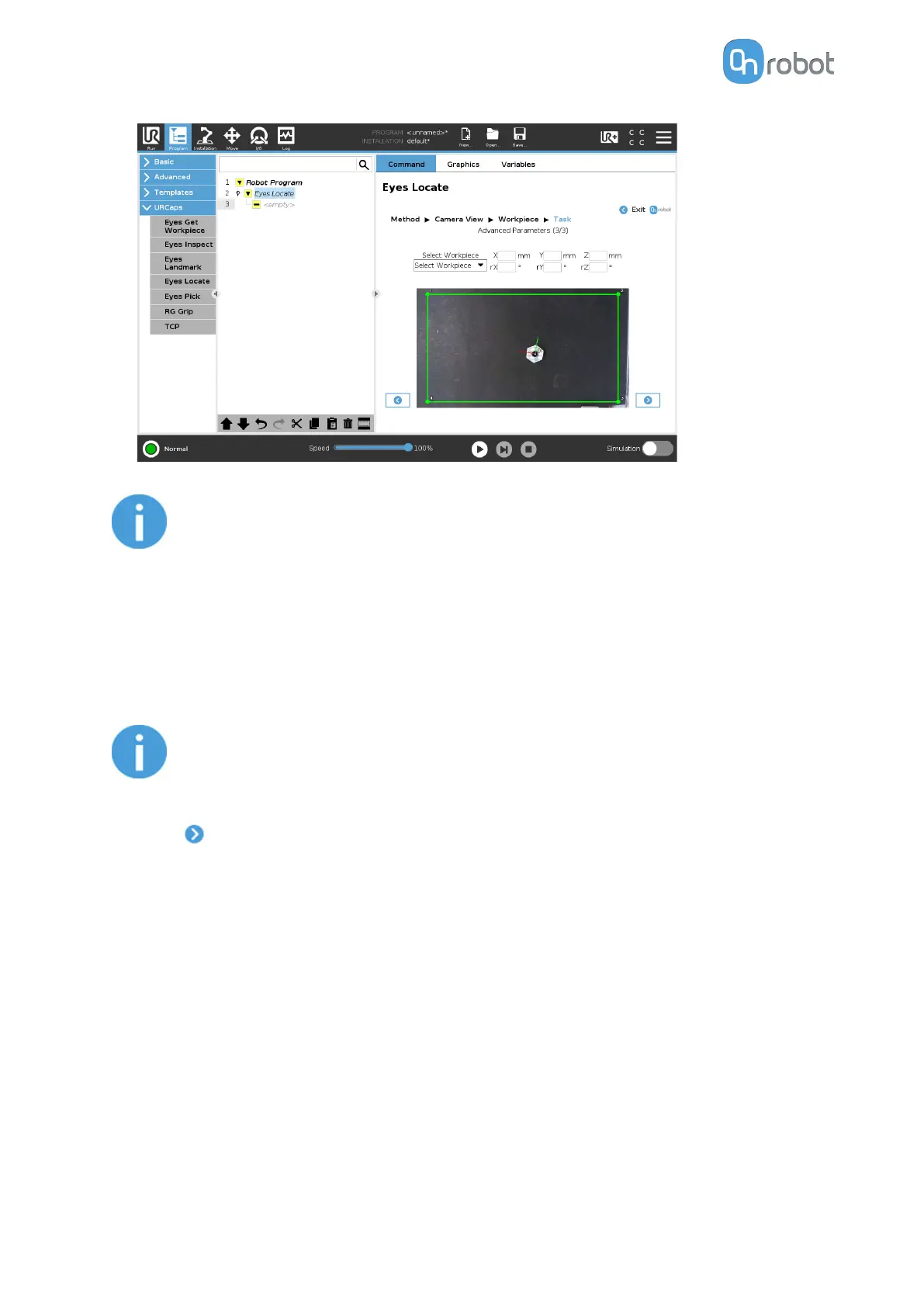

You can adjust the region of interest, which is marked by a yellow rectangle in the image.
To change the region of interest, you have to adjust each corner of it. Select a corner with
the buttons next to the camera feed and click on the image to mark the new position of
the corner.
NOTE:
Each workpiece is stored with the camera view that was used to define it.
Sorting can only be done between workpieces with the same camera view.
•
Press
and go to the first page of Task Using Detection by the Workpiece's Outline.
II/5. Finish
Configuration
•
Eyes Part Location configuration is finished.
