1. Printer cover
Protecting the printer
2. Receipt dispenser
This is where the receipt comes out
3. Customer display
Shows the customer the price, total, change
due, department and PLU codes
4. Operator display
The LCD display shows the operator the price,
total, change due, department and PLU codes
5. Control lock
Allows you to change the register mode
6. Cash drawer
Stores cash, cheques etc.
7. Keyboard
Used to input sales information etc.
Communication port of machines
The two standard RJ9 communication port of machines, Max. link four Kitchen Printer.
USB communication port of machines for USB Memory communication and PC communication and
link Barcode scanner.
1.Before PC communication turn the control lock to the “L” position. If the control lock in the other
position, the communication fails.
2.USB communication ( Please refer to chapter 8.2.2 “Using USB Memory for Uploading and
Downloading Data” for instructions.)
3. Link barcode scanner of machine. (use in the "P" or "R" position)

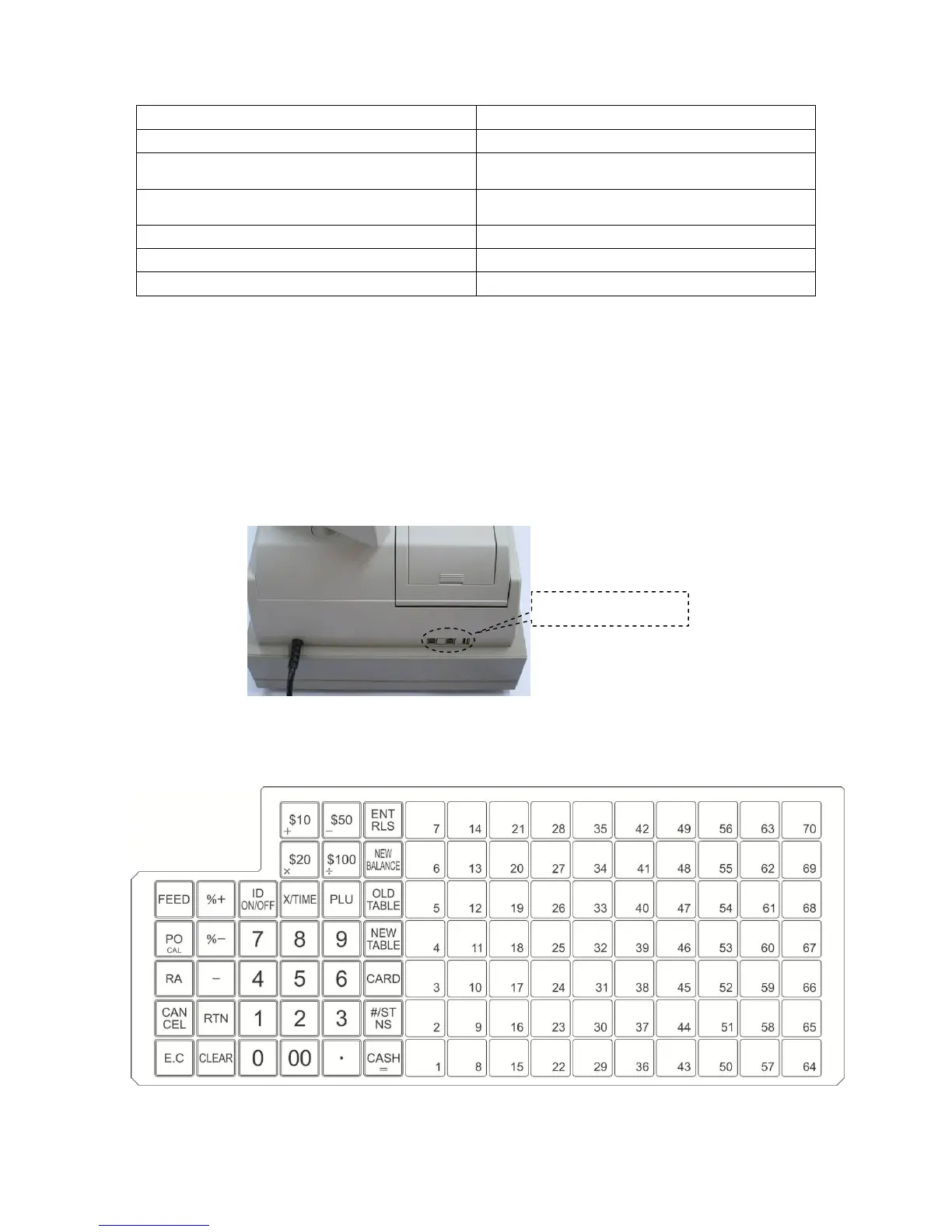

keyboard layout
