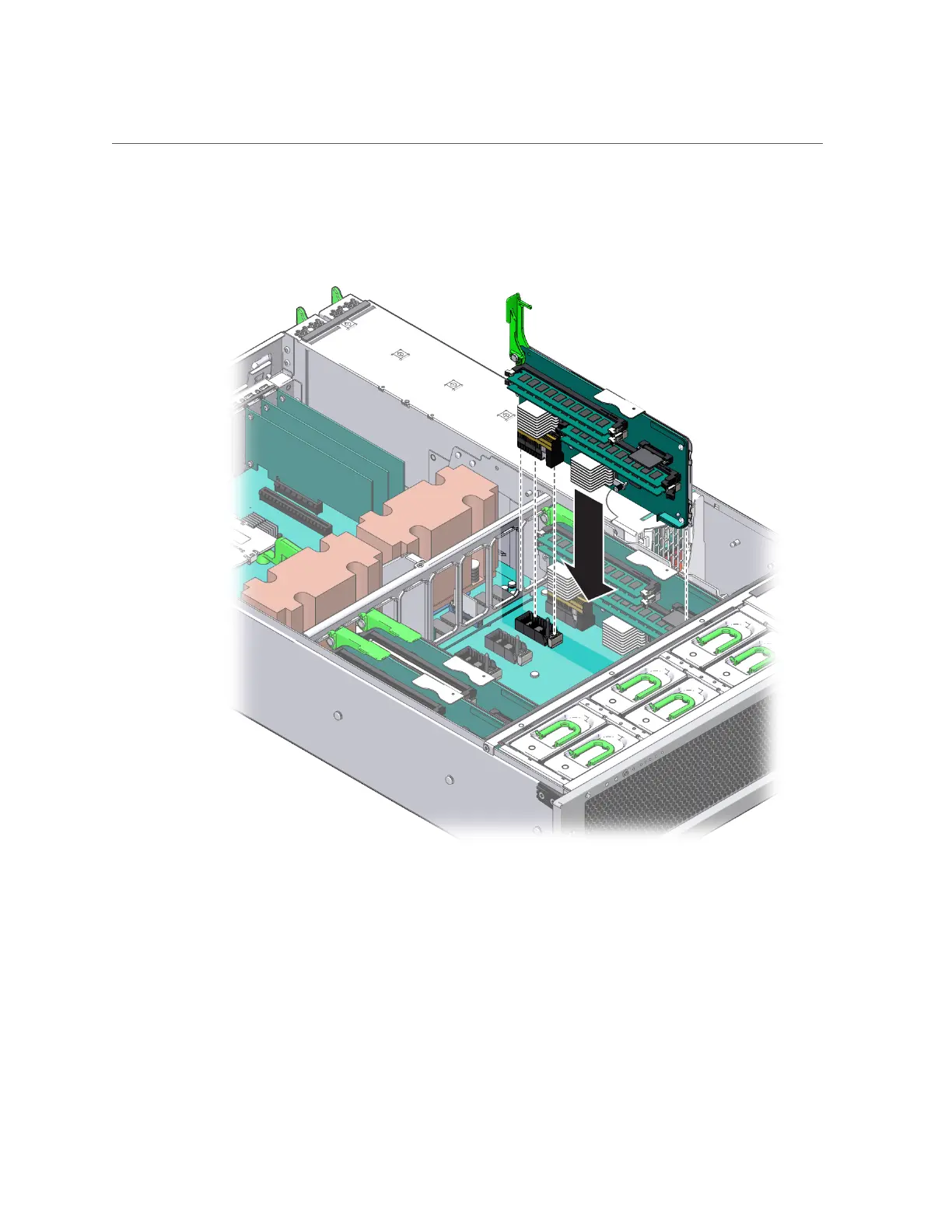

Install a Memory Riser

Push the memory riser module into the associated CPU memory riser slot until

the riser module locks in place.

Tighten the captive screw that secures the memory riser to the chassis.

Servicing Memory Risers and DIMMs 107
