Install the SPM
4.

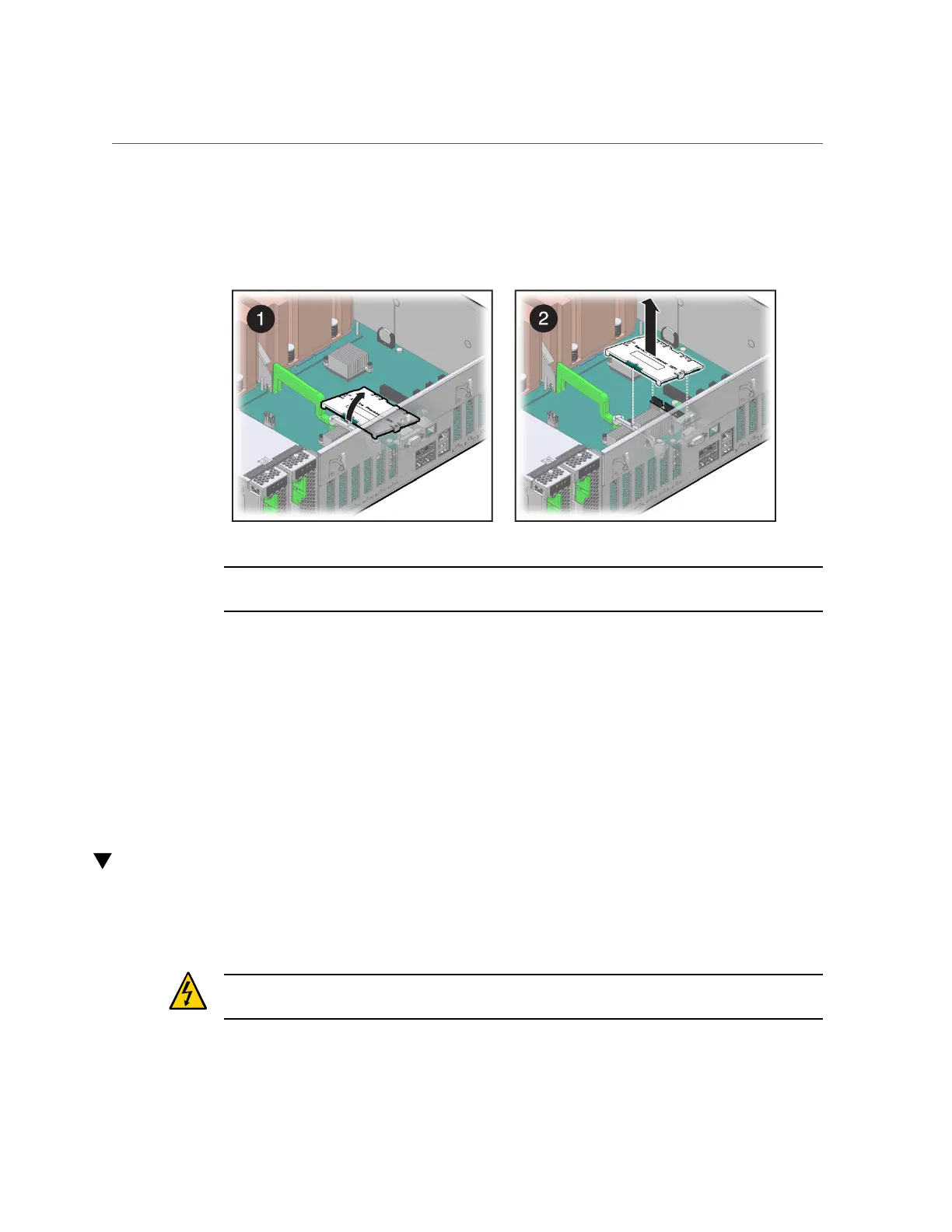

Grasp the SPM by the two grasp points and lift up to disengage the SPM from
the connectors on the motherboard (panel 1).
Note - If you are removing the SPM because you are replacing the motherboard, set the SPM
aside where it is protected from static. You must reinstall the SPM on the new motherboard.
5.
Lift the SPM up and away from the motherboard (panel 2).
6.
Install a new SPM.
See “Install the SPM” on page 137.
Related Information
■
“SPM Firmware and Configuration” on page 135
■
“Install the SPM” on page 137
Install the SPM
Replacing the SPM is a cold-service procedure that must be performed by qualified service
personnel. The server must be completely powered down before performing this procedure.
Caution - This procedure requires that you handle components that are sensitive to ESD which
can cause server components to fail.
Servicing the SPM 137
To Next Page
