Memory Riser and DIMM FRU Names

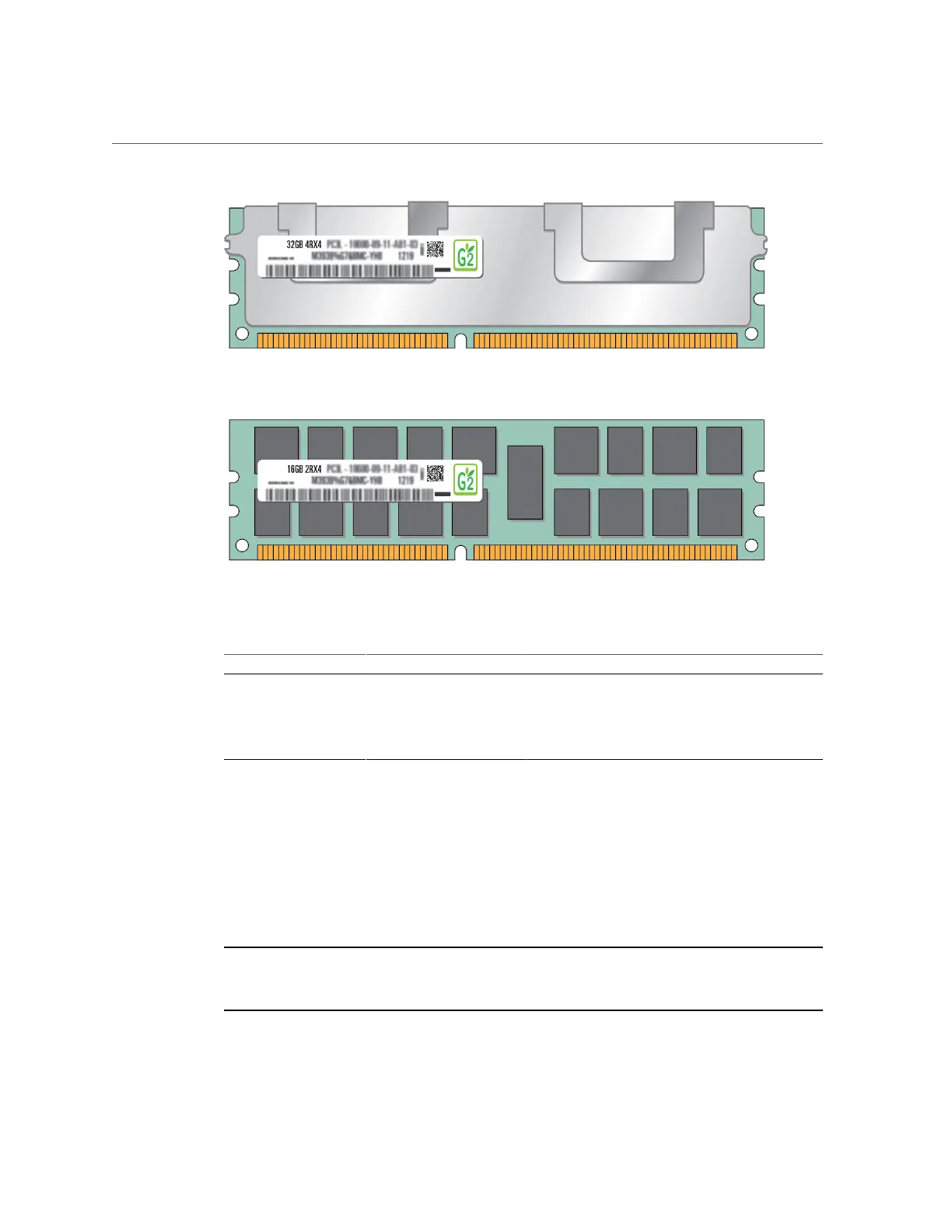

The following DIMMs are supported:
DIMM Capacity DRAM Density Rank Classification Label
16 Gbyte 4 Gbit Dual-rank x4 2Rx4
32 Gbyte 4 Gbit Quad-rank x4 4Rx4
32 Gbyte 8 Gbit Dual-rank x4 2Rx4
64 Gbyte 8 Gbit Quad-rank x4 4Rx4
Memory Riser and DIMM FRU Names
This server includes eight memory risers. Four memory risers are associated with each CMP in
the server. A label is next to each memory riser that shows the number of the CMP and of the
riser. Four DIMM slots are on each memory riser.
Note - The server fails to boot unless all memory riser slots are populated. For more
information about memory riser configuration, see “Memory Riser and DIMM
Configuration” on page 91.
