Install a DVD Drive

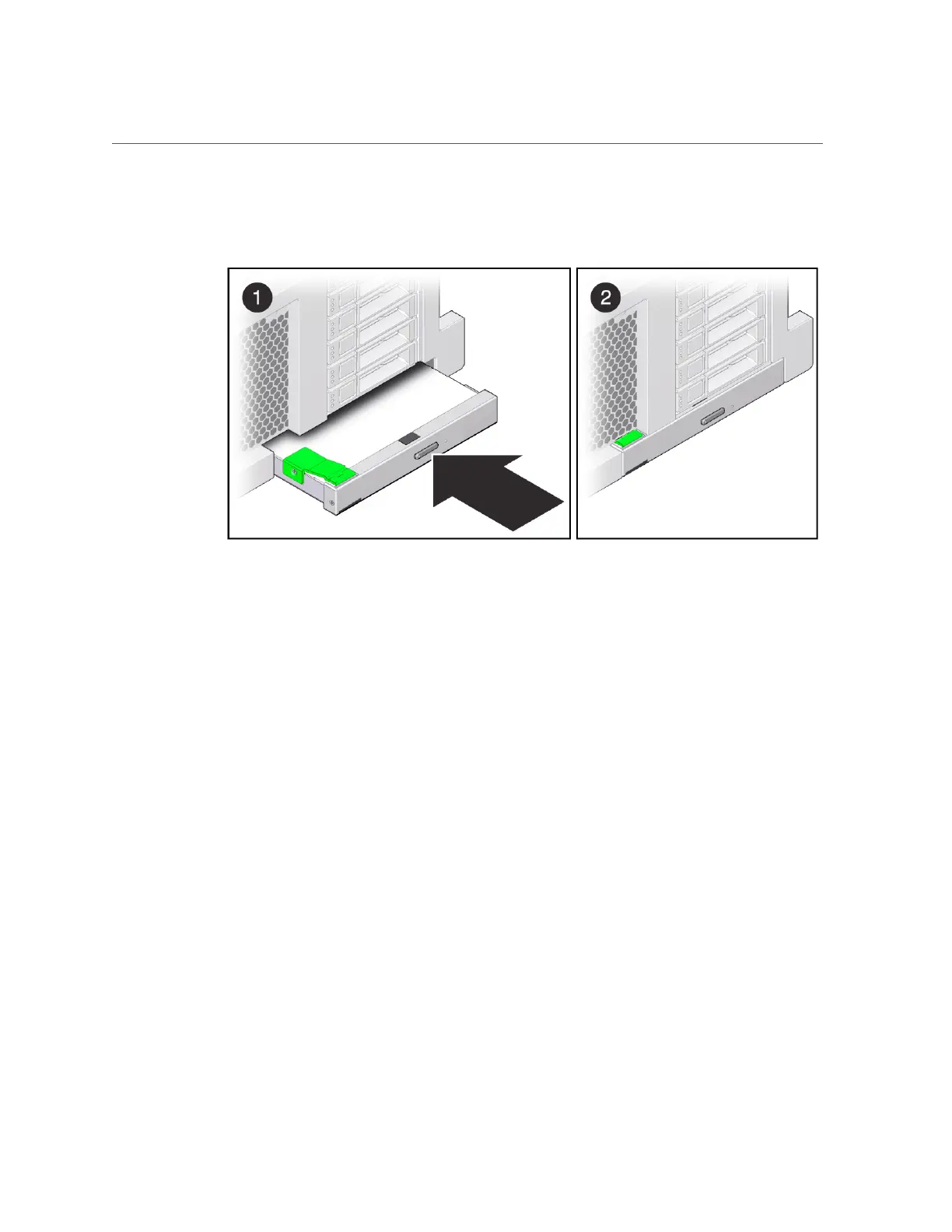

Slide the DVD drive into the front of the chassis until it seats.

Return the server to operation.

See “Returning the Server to Operation” on page 171.

Related Information

■

“Remove a DVD Drive” on page 113

Servicing the DVD Drive 115
