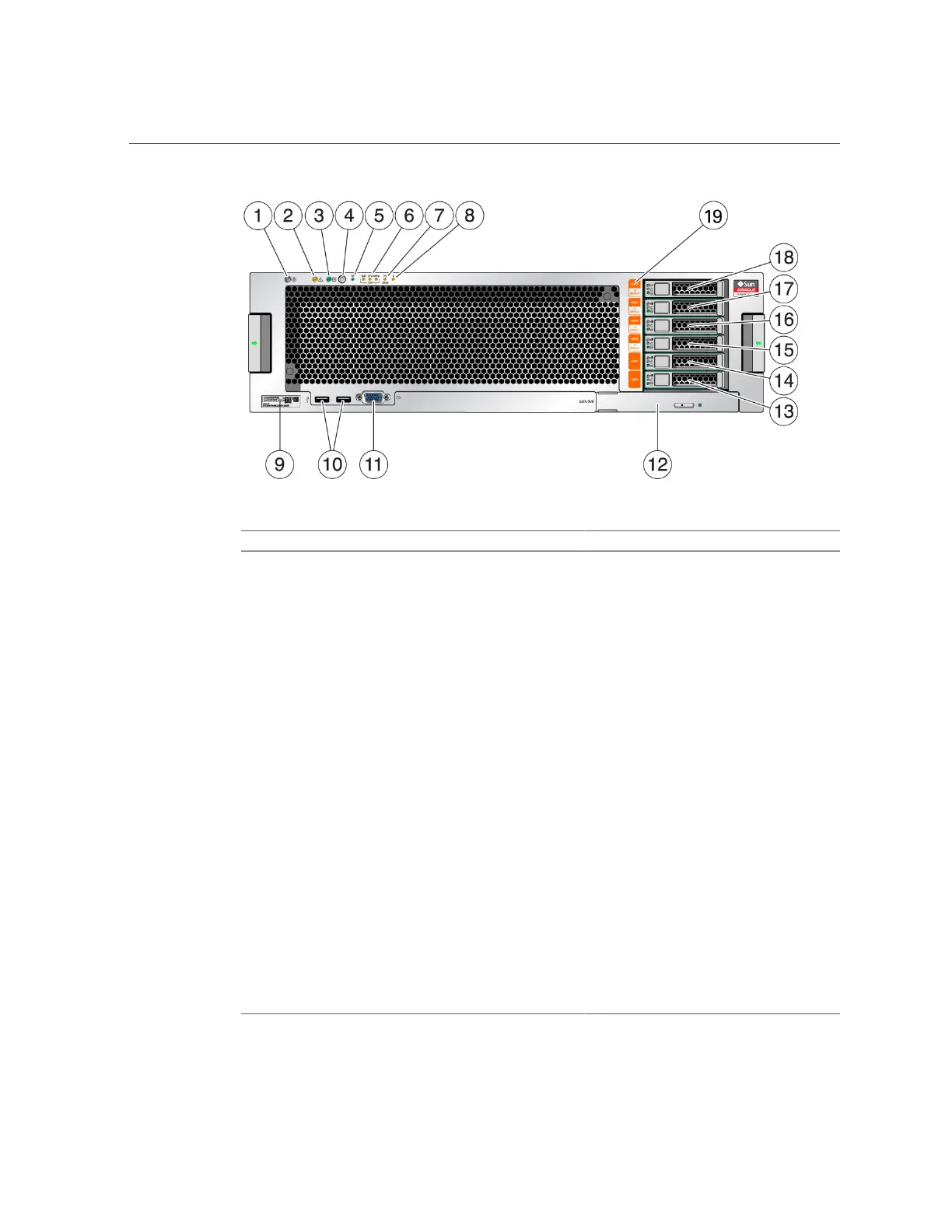

Front Panel Components (Service)
No. Description Links
1 Locator LED (white) “Front Panel Controls and
LEDs” on page 36
2 Service Action Required LED (amber) “Front Panel Controls and
LEDs” on page 36
3 Power/OK LED (green) “Front Panel Controls and
LEDs” on page 36
4 Power button “Front Panel Controls and
LEDs” on page 36
5 SP OK/Fault LED (green or amber) “Front Panel Controls and
LEDs” on page 36
“Servicing the SPM” on page 135
6 Three Service Action Required LEDs (amber) for fan
module (FAN), processor (CPU), and memory (MEM)
“Servicing Fan Modules” on page 77
“Servicing the Motherboard” on page 147
“Servicing Memory Risers and
DIMMs” on page 91
7 PS Service Action Required LED (amber) “Servicing Power Supplies” on page 85
8 Overtemp LED (amber) “Front Panel Controls and
LEDs” on page 36
9 Serial number
10 Two USB 2.0 connectors Server Installation, USB port
11 DB-15 video connector Server Installation, video port
12 SATA DVD drive “Servicing the DVD Drive” on page 113
13 Drives 0 to 5 (numbered bottom to top) “Servicing Drives” on page 65
14 SPARC T7-2 Server Service Manual • July 2019
