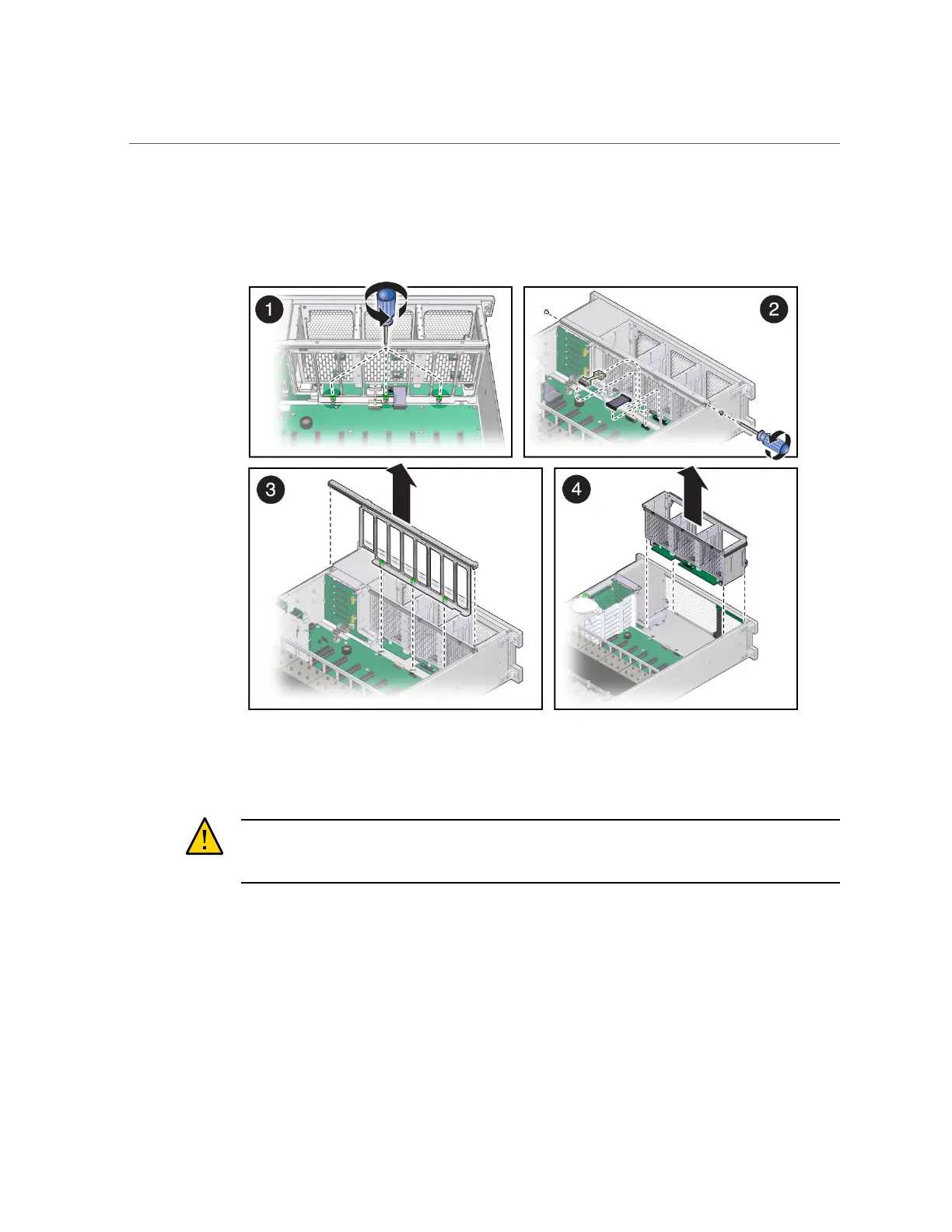

Remove the Fan Board
5.
Loosen the three captive screws connecting the front memory riser guide to the
motherboard (panel 1).
6.
Remove the two screws on each side of the outside of the chassis that hold the
fan board in place and unplug the fan board and power cables from motherboard
(panel 2).
Caution - When removing the ribbon cable from the motherboard, grasp the cable connector on
either side and pull straight up to disconnect the cable. Do not rock the cable side to side. Doing
so could damage the connector.
Save the cables for use with the new fan board.
7.
Remove the front memory riser guide by pulling it up and out of the chassis
(panel 3).
8.
Pull the fan board back and out of chassis (panel 4).
142 SPARC T7-2 Server Service Manual • July 2019
