Install a Drive
3.

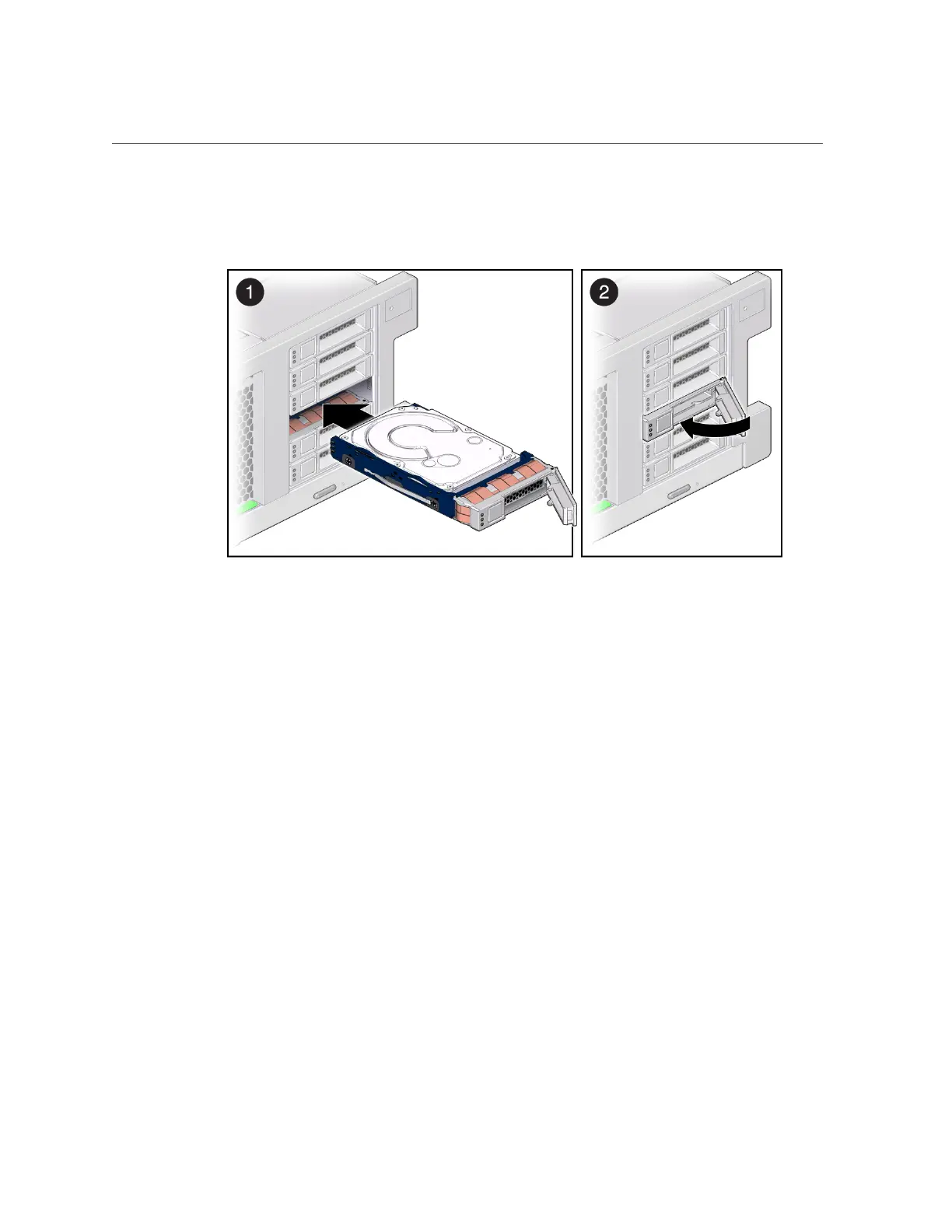

Install the drive by completing the following tasks.
a.
Slide the drive into the drive slot until it is fully seated.
b.
Close the latch to lock the drive in place.
4.
Return the drive to operation by doing one of the following:
■ If you cold-serviced the drive, restore power to the server.
See “Power On the Server (Oracle ILOM)” on page 174 or “Power On the Server
(System Power Button)” on page 175.
■
If you hot-serviced the drive, configure it using the cfgadm -c configure
command. The following example shows the drive at c0::dsk/c1t1d0 being
configured.
# cfgadm -c configure c0::dsk/c1t1d0
Replace c0:dsk/c1t1d0 with the drive name that applies to your situation.
■ If you hot-serviced an NVMe drive, it should automatically power up and
attach. If not, power up and attach the drive manually.
Servicing Drives 73
