Oracle X5-2 User Manual

Configure RAID in Legacy BIOS Boot Mode

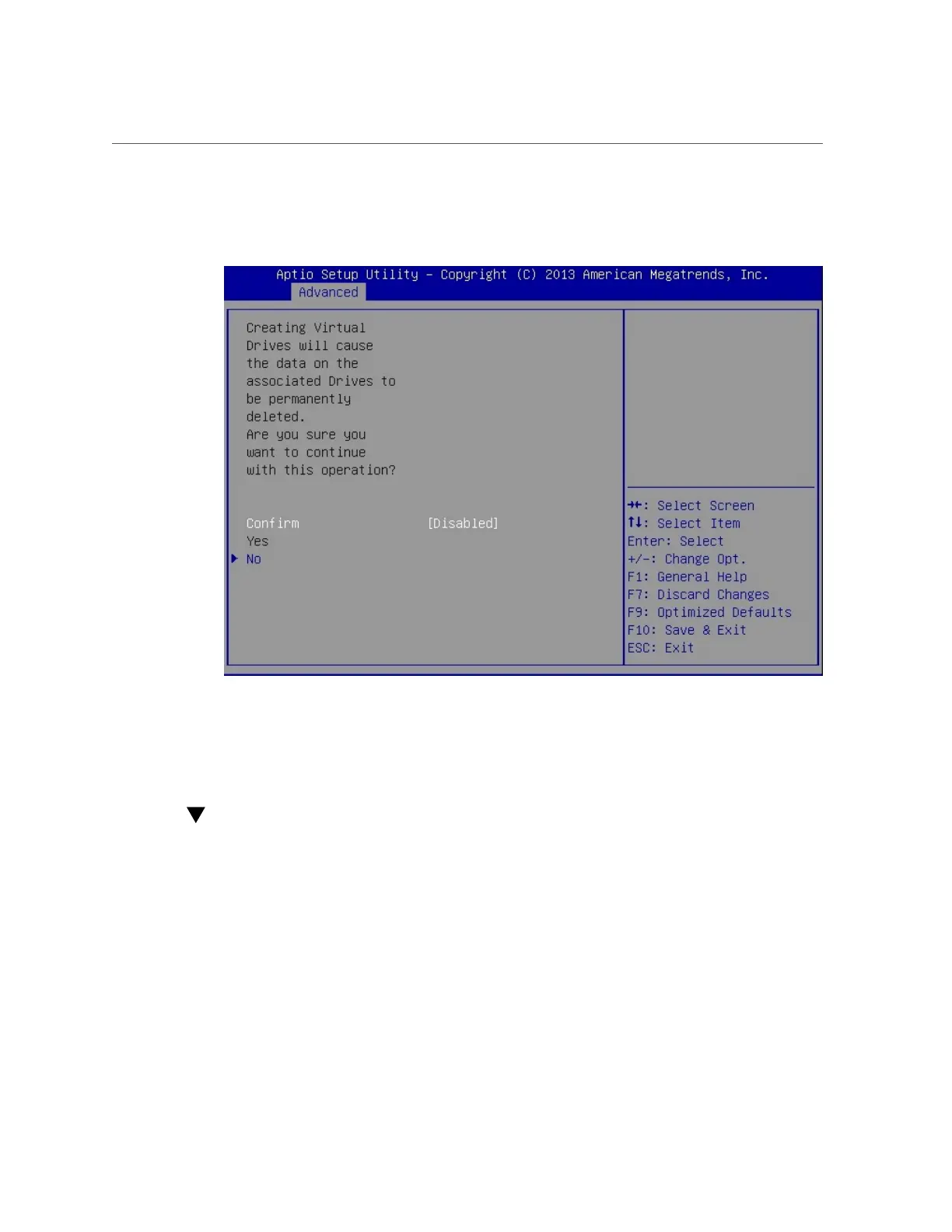

The RAID Configuration Confirmation screen appears.
12.
Confirm that you want to proceed, and then press Enter.
This completes the RAID configuration.
Configure RAID in Legacy BIOS Boot Mode
The BIOS RAID configuration utilities reside in the HBA firmware. Use this procedure when:
■
You want to configure RAID on the intended OS installation hard drive and the server does
not have Oracle System Assistant or you do not want to use it.
■
You want to create a RAID volume level 6, 50, or 60 using the storage drive on which you
plan to install the operating system.
Configuring Storage Drives for Operating System Installation 127

Oracle X5-2 Specifications

General

Number of Processors	2
Cores per Processor	Up to 18
Form Factor	2U Rackmount
Processor	Intel Xeon E5-2600 v3
Memory	Up to 768 GB DDR4
Power Supply	1200W
Operating System	Oracle Linux, Oracle Solaris
Network	4 x 10Gb Ethernet ports
