To install the mounting brackets onto the sides of the server:
1.

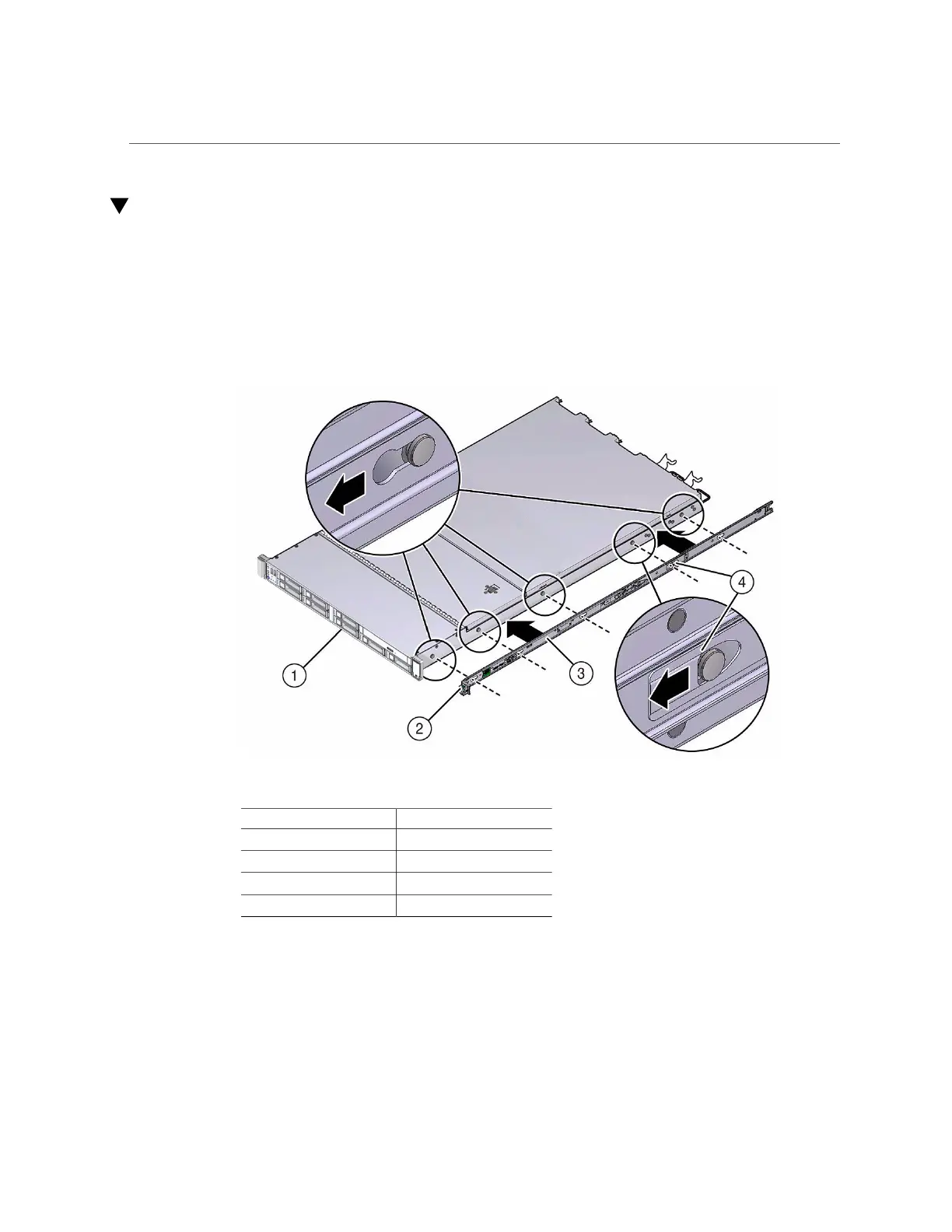

Position a mounting bracket against the chassis so that the slide-rail lock is
at the server front, and the five keyhole openings on the mounting bracket are
aligned with the five locating pins on the side of the chassis.
Number Description
1 Chassis front
2 Slide-rail lock
3 Mounting bracket
4 Mounting bracket clip
2.
With the heads of the five chassis locating pins protruding through the five
keyhole openings in the mounting bracket, pull the mounting bracket toward
the front of the chassis until the mounting bracket clip locks into place with an
audible click.
