Oracle X5-2 User Manual

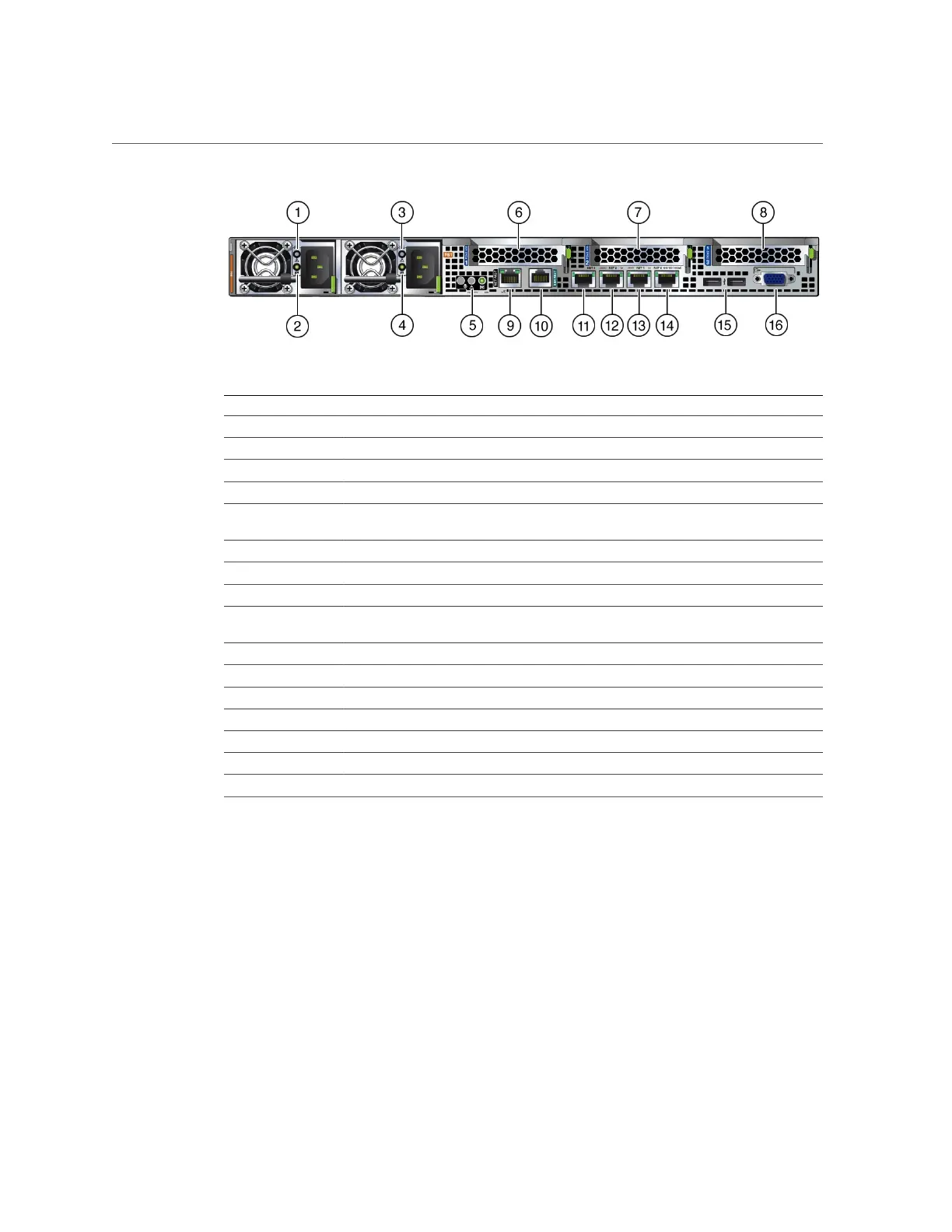

Back Panel Status Indicators, Connectors, Drives, and PCIe Slots
Call Out Description
1 Power Supply (PS) 0
2 Power Supply (PS) 0 status indicators: Service Required LED: amber AC OK LED: green
3 Power Supply (PS) 1
4 Power Supply (PS) 1 status indicators: Service Required LED: amber AC OK LED: green
5 System status indicators: Locator LED: white; Service Required LED: amber; Power/OK
LED: green
6 PCIe card slot 1 (Nonfunctional in single-processor systems)
7 PCIe card slot 2
8 PCIe card slots 3 and 4
9 Oracle Integrated Lights Out Manager (ILOM) service processor (SP) network management
(NET MGT) 10/100/1000BASE-T port
10 Serial management (SER MGT)/RJ-45 serial port
11 Network (NET) 100/1000/10000 port: NET 3 (Nonfunctional in single-processor systems)
12 Network (NET) 100/1000/10000 port: NET 2 (Nonfunctional in single-processor systems)
13 Network (NET) 100/1000/10000 port: NET 1
14 Network (NET) 100/1000/10000 port: NET 0
15 USB 2.0 connectors (2)
16 DB-15 video connector
Related Information
■
“Front Panel Status Indicators, Connectors, and Drives” on page 29
■
“Server Components” on page 27
Server Features and Components 31

Oracle X5-2 Specifications

General

Number of Processors	2
Cores per Processor	Up to 18
Form Factor	2U Rackmount
Processor	Intel Xeon E5-2600 v3
Memory	Up to 768 GB DDR4
Power Supply	1200W
Operating System	Oracle Linux, Oracle Solaris
Network	4 x 10Gb Ethernet ports
