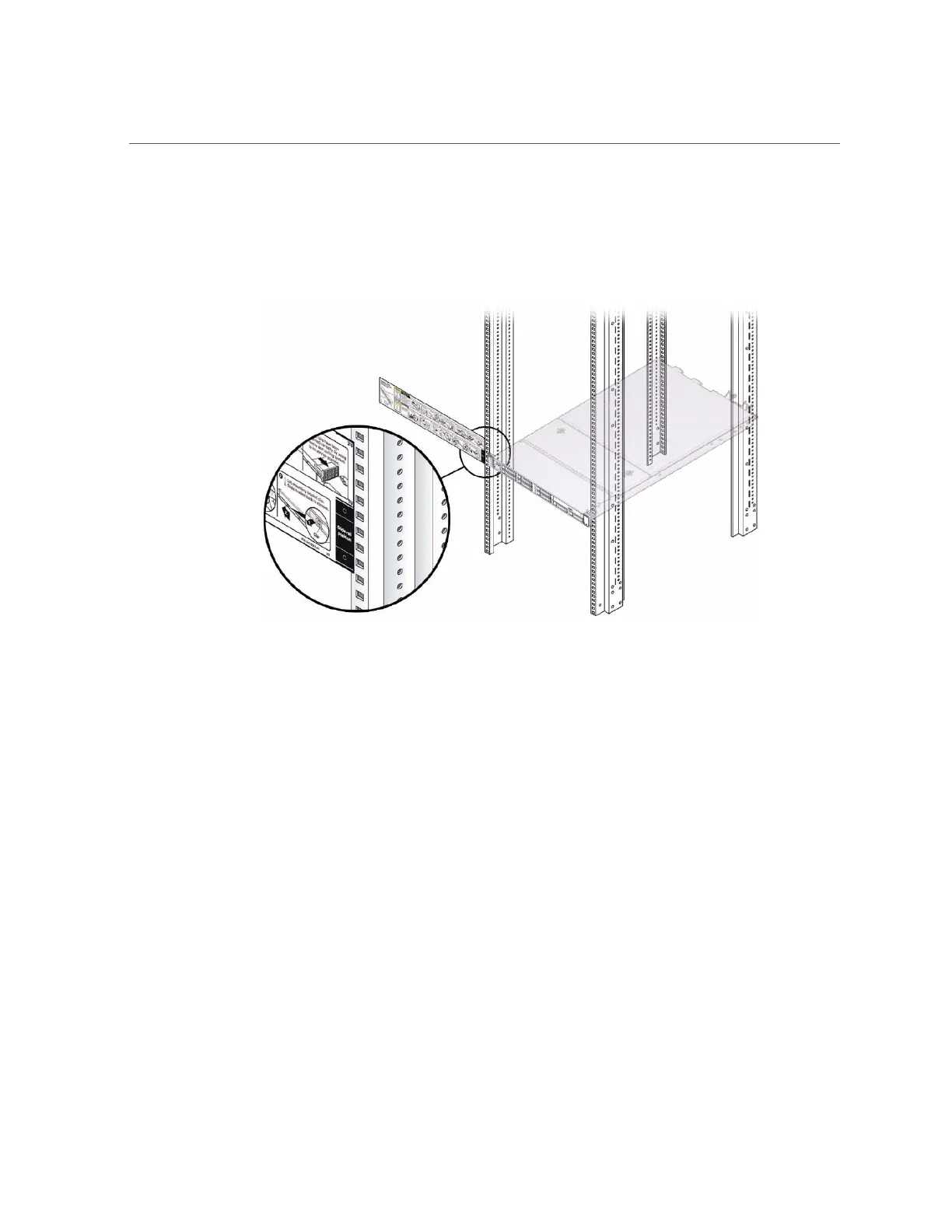

Mark the Rackmount Location
The bottom edge of the card corresponds to the bottom edge of the server. Measure up from the
bottom of the installation card.
3.
Mark the mounting holes for the front slide-rails.
4.
Mark the mounting holes for the rear slide-rails.
Related Information
■
“Rack Requirements” on page 40
■
“Install Mounting Brackets On the Server ” on page 44
■
“Attach Tool-less Slide-Rail Assemblies” on page 49
