3 Select the Inputs tab.
4 Enter a nickname for the input that is to be used.
5 Select a Type for the input. The input type that you select changes the displayed status of
the input on the Home page.
The options are:
SWITCH - The Home page displays ON when the input is high and OFF when the input is
low.
NORMALLY OPEN - The Home page displays CLOSED when the input is high and OPEN
when the input is low.
NORMALLY OPEN - The Home page displays OPEN when the input is high and CLOSED
when the input is low.
BOOLEAN - The Home page displays TRUE when the input is high and FALSE when the
input is low.
11.2.5 Configuring an output on the auxiliary I/O board
1 Configure a page on the Home page for an output on the auxiliary I/O board.

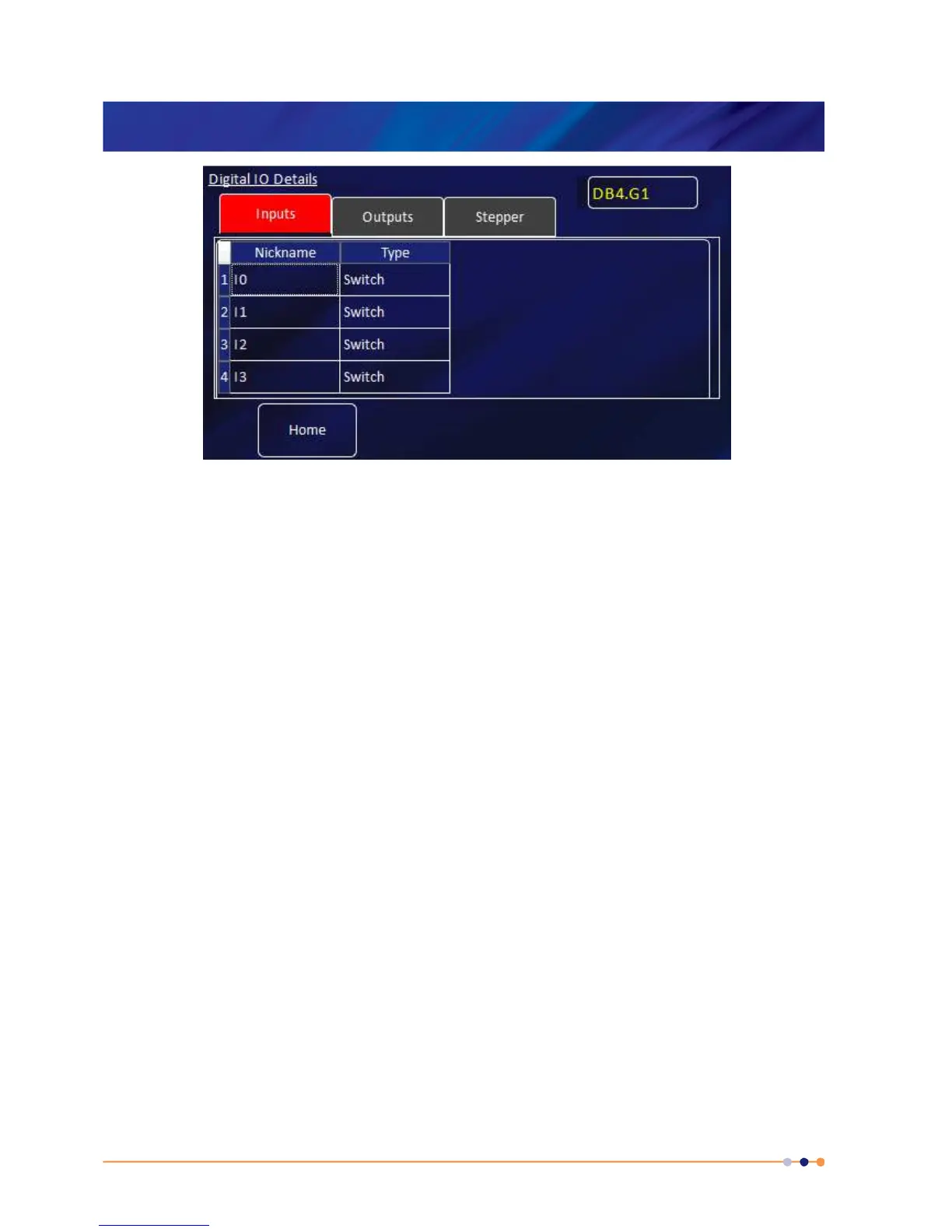

2 Tap the configured page once. The Digital IO Details page is displayed.
