• P(W)
This parameter box displays the power that is currently being applied to the heater, both in
watts and as a percentage of the maximum. This value cannot be edited.
The page also contains the following buttons:
• Control
Tap once to display the Control Loop Configuration page (see section 4.5 for heater control
and 4.9 for gas control).
• Calibrate
Tap once to calibrate this measurement circuit. This routine takes approximately one minute
for each heater. An error message is generated if the calibration fails for any reason.
4.4 Configuring a heater

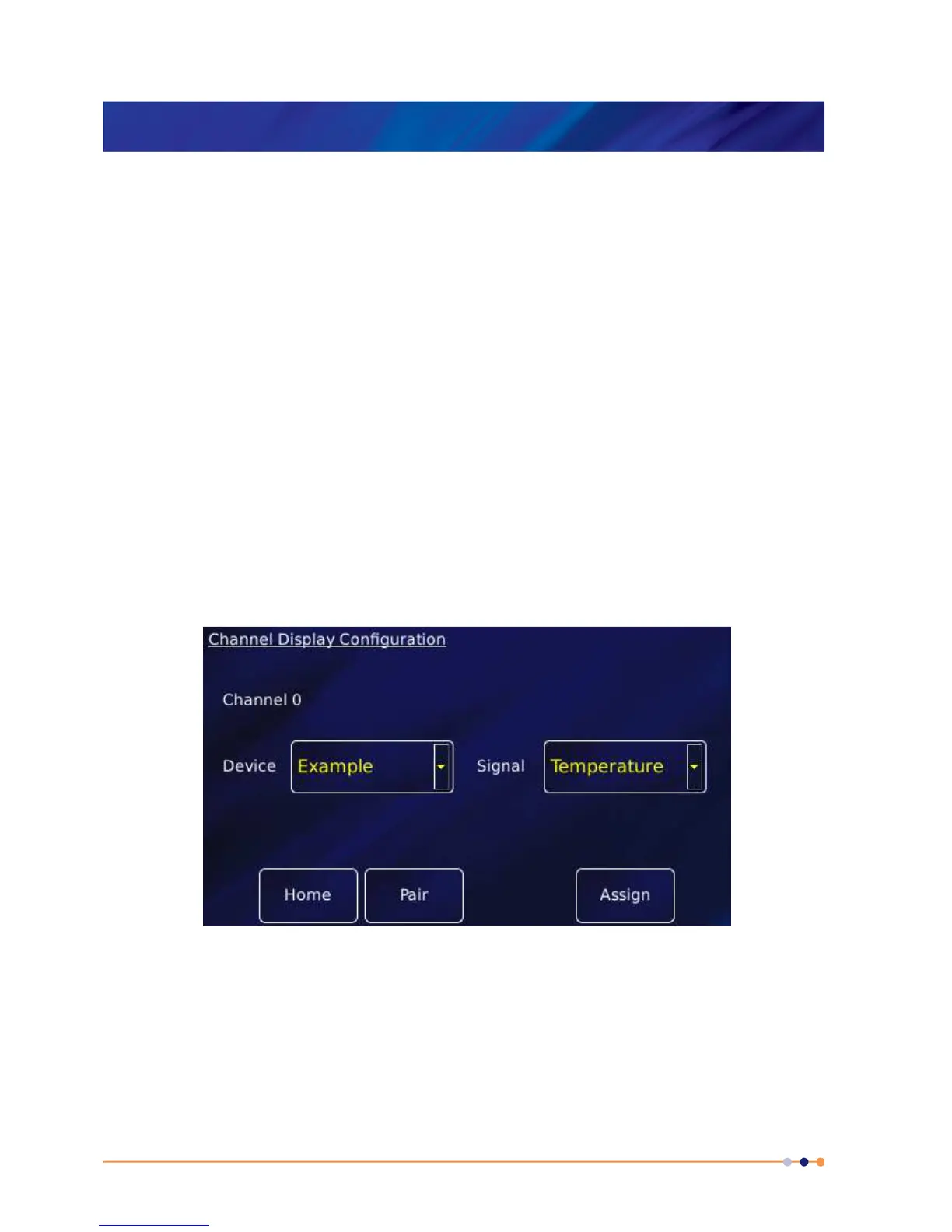

1 Double-tap a configured widget on the Home page. The Channel Display Configuration
page is displayed.
2 Tap Pair. The Device Pair Configuration page is displayed. This is used to “pair” or “join up”
a heater and a sensor. A temperature sensor is normally paired with a heater. The page
contains a table with 7 columns. You must scroll to the right to see them all. The
appearance of the page with no configured pairings is shown below.
