MercuryiTC
©2014 Oxford Instruments Omicron NanoScience. All rights reserved.
Page 84

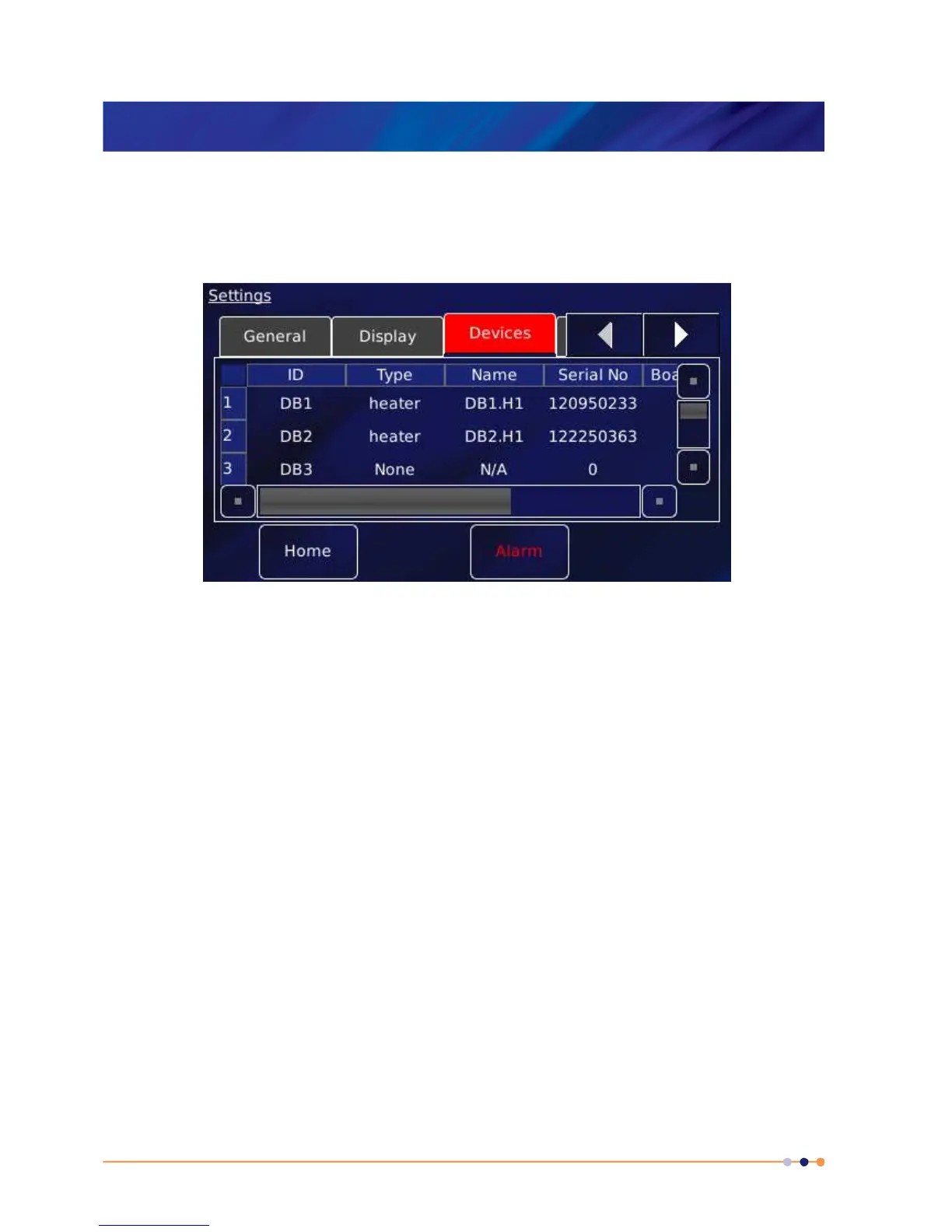

6.3 Devices
The Devices page is viewed by selecting the Devices tab.
Each row of this table corresponds to an expansion slot in the iTC. The table lists which boards
are fitted in which slot. The columns show:
• Row number
The number of the slot.
• ID
The ID (identity) of the board fitted in this slot, MB for mother board, DB for daughter board,
and a number.
• Type
The type (function) of the board fitted in this slot.
• Name
The name (or user-defined nickname) of the device associated with the board fitted in this
slot.
• Serial No
The serial number of the board fitted in this slot.
• Board Rev.
The revision number of the board.
