Oxford Instruments Omicron NanoScience MercuryiTC User Manual

Operator's Manual
Issue 05 /
Feb 2015 / UMC0071
MercuryiTC
©2014 Oxford Instruments Omicron NanoScience. All rights reserved.
Page 54
This command sets Ramp mode ENAbled (RENA) OFF for the control loop. The system
returns
STAT:SET:DEV:MB1.T1:TEMP:LOOP:RENA:VALID
4.9 Configuring a gas valve
1 Double tap any configured widget on the Home page.

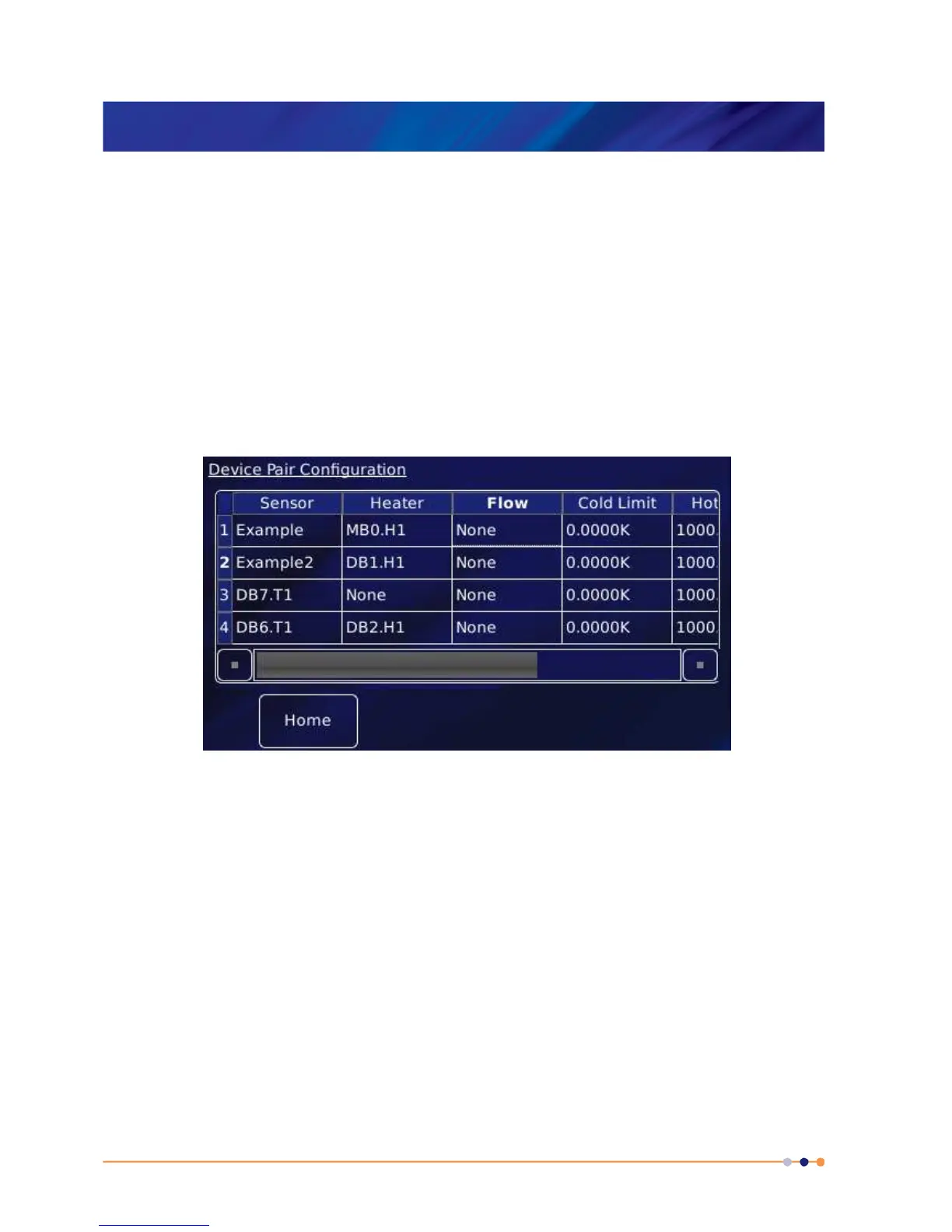

2 Tap Pair. The Device Pair Configuration page appears.
3 In the row for the desired sensor, tap the cell in the Flow column. Select the gas controller
from the drop-down menu (not shown).
4 Tap OK to save the configuration. The example below shows a gas controller in daughter
board number 4.
