2.9 Main components

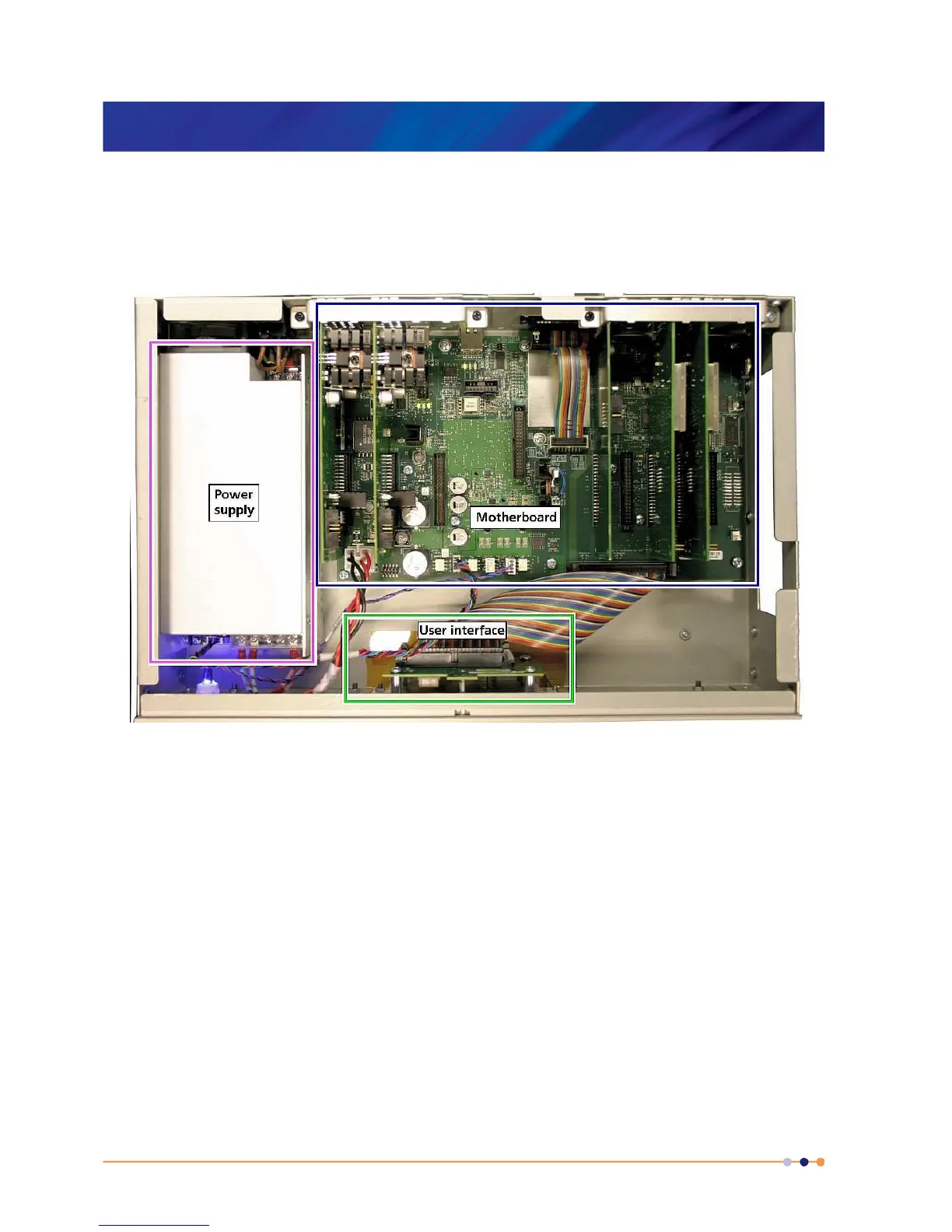

This section gives a brief description of the internal components of the MercuryiTC. Figure 3
shows how these components are arranged inside the MercuryiTC enclosure.
Figure 3 View of internal layout of MercuryiTC
The MercuryiTC consists of:
• a 2U high 19 inch rack or desktop enclosure
• a touch-screen user interface
• a power supply
• a motherboard PCB which contains the basic iTC functionality
• optional additional temperature sensor input(s) (on daughter boards)
• optional additional heater output(s) (on daughter boards)
• optional auxiliary I/O (stepper motor drive and logic I/O)
• optional GPIB (IEEE-488) interface.
