MercuryiTC
©2014 Oxford Instruments Omicron NanoScience. All rights reserved.
Page 76

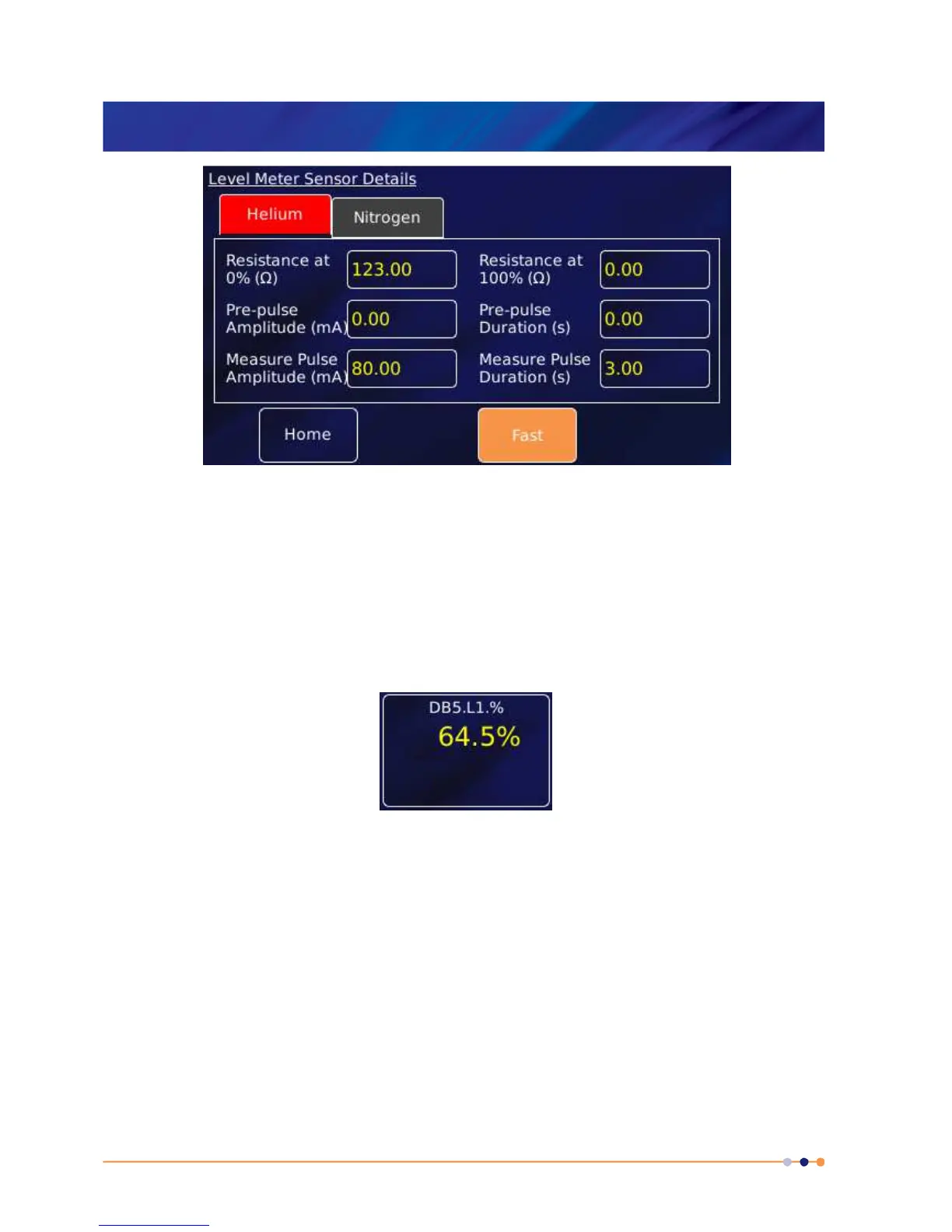

13 Tap Home to return to the Home page.
14 Tap the level meter widget twice to return to the Channel Display Configuration page.
15 Tap Signal and select Helium Level.
16 Tap Assign to save the changes and return to the Home page. The level meter widget now
reads the helium level (%).
5.5 Configuring MercuryiTC for nitrogen level meter
1 Tap an unconfigured widget on the Home page to display the Channel Display
Configuration page.
2 Tap the Device box and select a level meter device from the drop down list (an example is
shown).
3 Tap the Signal box and select Pulse
To Next Page
