MercuryiTC
©2014 Oxford Instruments Omicron NanoScience. All rights reserved.
Page 43
4.3 Setting heater properties
This page displays a set of values for every configured heater, in particular voltage limits for
individual heaters. If your MercuryiTC is supplied as part of a system, this page will be set up
already.

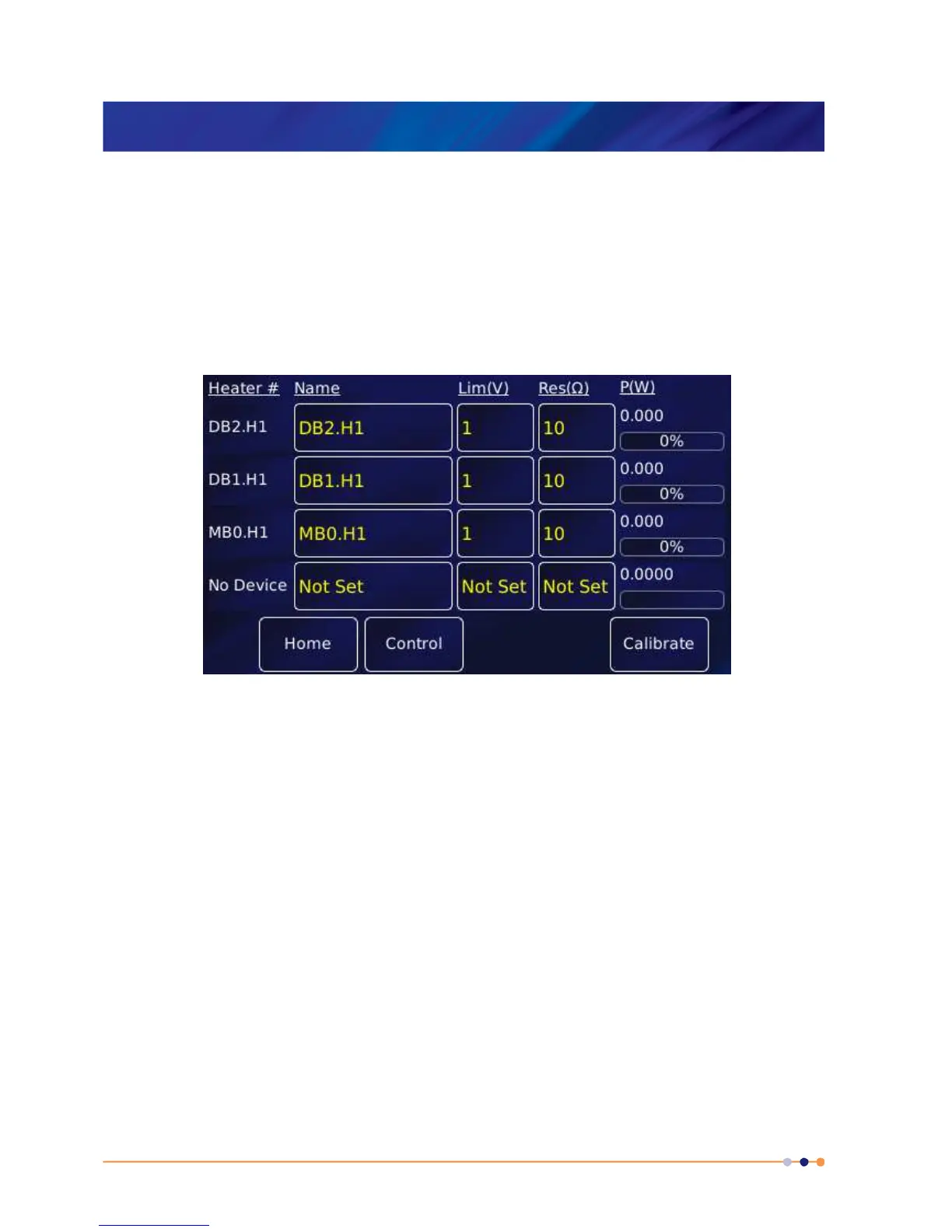

Tap Heater on the Home page to view the heater properties page.
The following parameter boxes and values are displayed for each heater:
• Heater #
This displays the UID of the heater. This number cannot be edited.
• Name
A name to identify the heater. Tap this parameter box once to display an alpha-numeric
keypad and enter a new name, if required.
• Lim (V)
The maximum voltage to be applied to the heater. Tap this parameter box once to display a
numeric keypad and enter a new value, if required.
• Res (Ω
ΩΩ
Ω)
The electrical resistance of the heater in ohms. Tap this parameter box once to display a
numeric keypad and enter a new value, if required
