Panasonic Lumix S1H

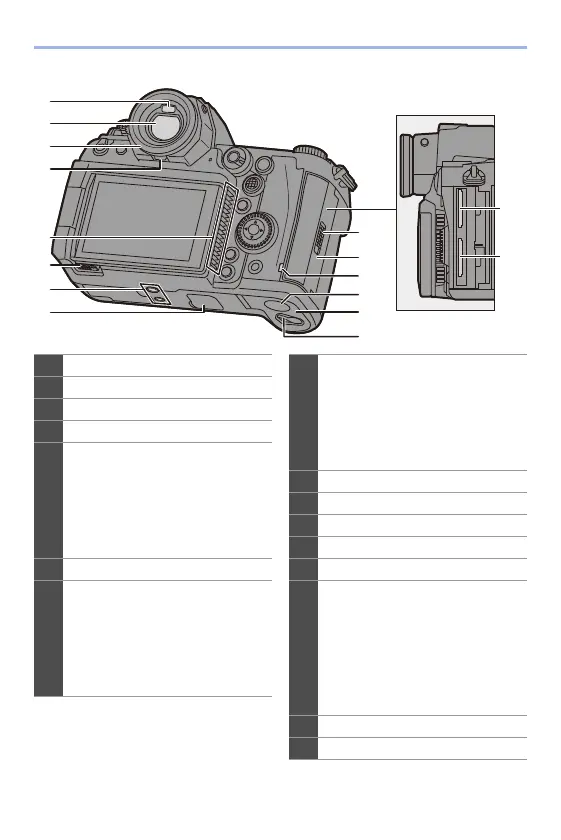

1. Introduction
30
7
8
2
3
6
4
1
10
11
12
13
14
15
16
9
5
1
Eye sensor (l 69)
2 Viewfinder (l 32, 69, 542)
3
Eye cup (l 572)
4
Eye cup lock lever (l 572)
5
Fan inlet
0 The fan inlet for the cooling fan.
0 Do not obstruct this unit’s
ventilation openings with
newspapers, tablecloths,
curtains, and similar items.
6
Monitor lock lever (l 55)
7
Tripod mount (l 576)
0 If you attempt to attach a tripod
with a screw length of 5.5 mm
(0.22 inch) or more, you may not
be able to securely fix it in place
or it may damage the camera.
8
Battery grip connector (cover for
the battery grip connector)
(l 539)
0 Keep the cover for the battery
grip connector out of reach of
children to prevent swallowing.
9
Card slot 1 (l 48)
10
Card slot 2 (l 48)
11 Card door lock lever (l 48)
12
Card door (l 48)
13
Card access light (l 49)
14
DC Coupler cover (l 541)
0 When using an AC adaptor,
ensure that the Panasonic DC
Coupler (DMW-DCC16:
optional) and AC Adaptor
(DMW-AC10: optional) are
used.
15
Battery door (l 39)
16
Battery door release lever (l 39)
