8.2 Programming with MotionWiz
The
serial kit is supplied to enable communication between a PC and the drive. The kit
includes an RS-422/RS-232 converter, relative 230V~ power supply and serial connection
cable. The enclosed communication software (supplied free of charge) designated
MotionWiz
has the following HW/SW requirements: PII microprocessor or higher, Windows2000 or more
recent version, mouse and serial port for drive connections. The main features of MotionWiz
are:
- serial connection of up to 32 drives
- reading and setting of basic parameters and drive commands
- reading and setting of commands and parameters of operating modes
- functional block diagrams
- pico-PLC program displayed as ladder diagrams
- display of pico-PLC program status during operation
- I/O status
- file storage of parameterisation including pico-PLC program
- uploading of parameterisation including pico-PLC program from a file that can be selected
from among those previously stored
- oscilloscope function

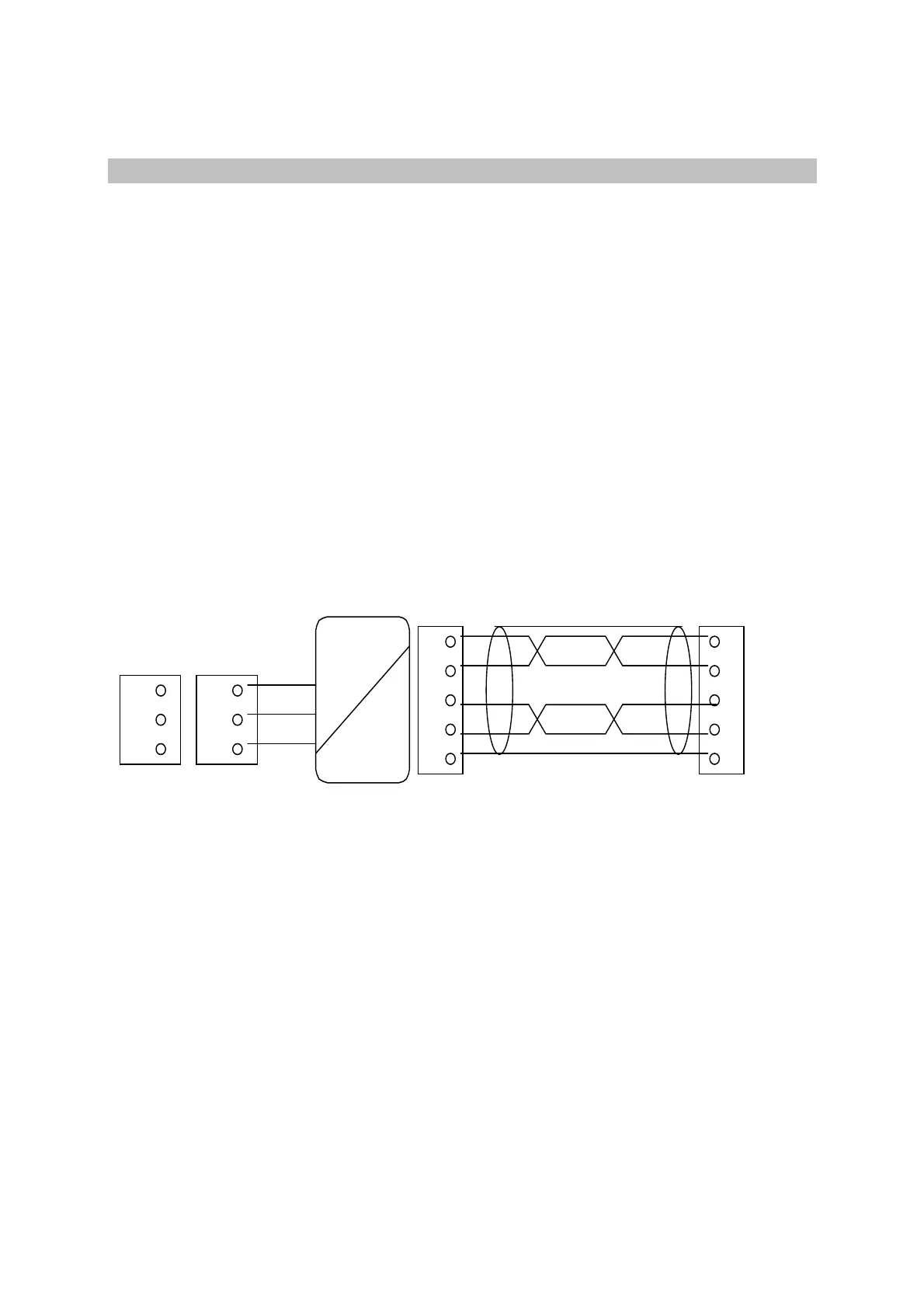

RS-232
RS-422
17
2
14
5
7
1
2
3
4
9
DB9 DB25
2
3
7
3
2
5
Serial link
personal computer
tx
rx
0V
CL-422
