Parker Hannifin S.p.A. Divisione S.B.C. user’s manual TWIN-N and SPD-N
29

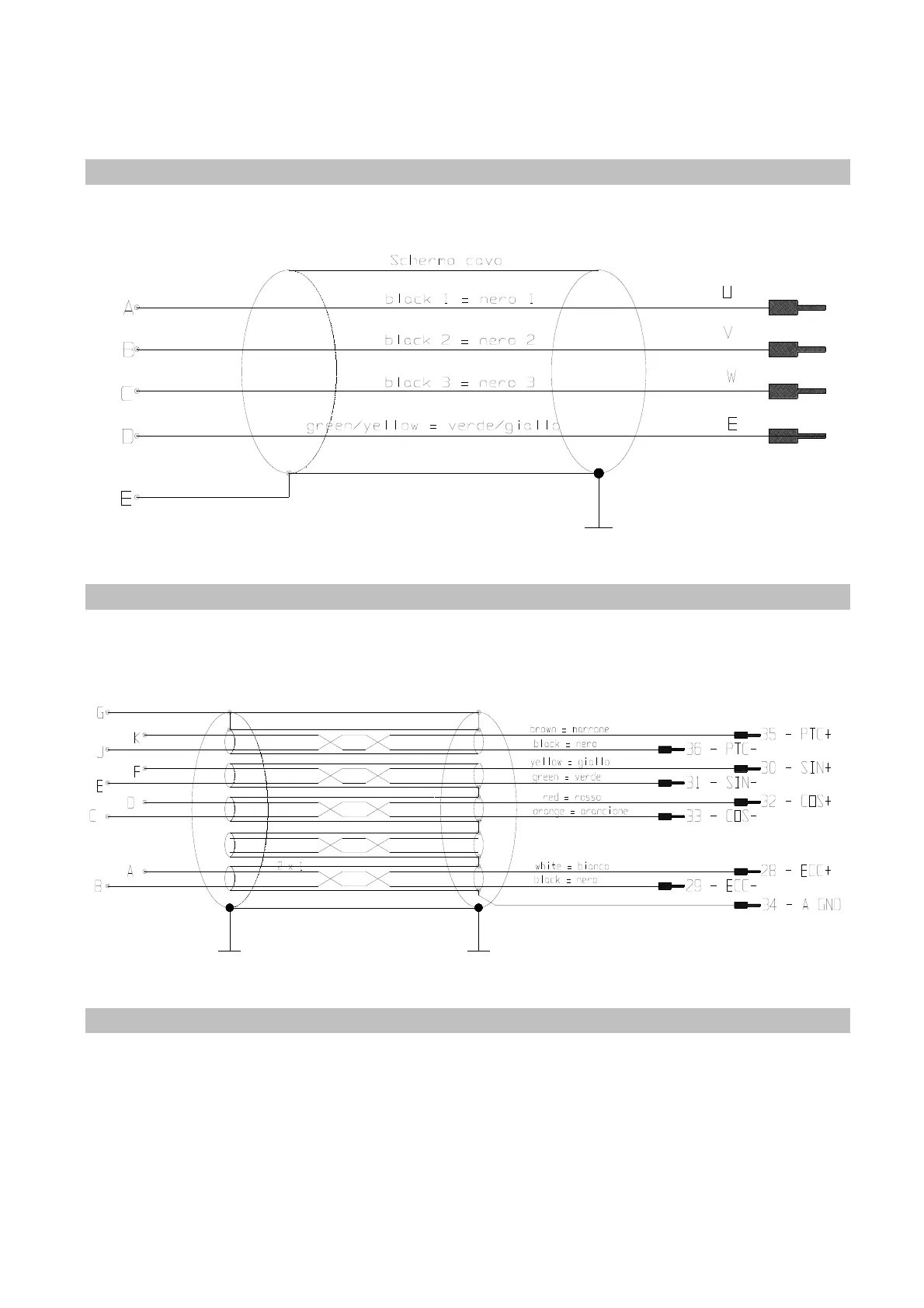

2.6 Motor connection diagrams
2.7 Resolver connection diagrams
2.8 Signal cables connection
The cable used for the analogue reference must be a shielded twisted pair. The cable used to connect
the signals of the simulated encoder must consist of three twisted pairs with a general shield.
Shielded cables are also recommended for digital inputs and outputs.
All cables must have a minimum section of 0.22 mm
2
MIL motor connector
MIL resolver
connecto
r
