Parker Hannifin S.p.A. Divisione S.B.C. user’s manual TWIN-N and SPD-N
40

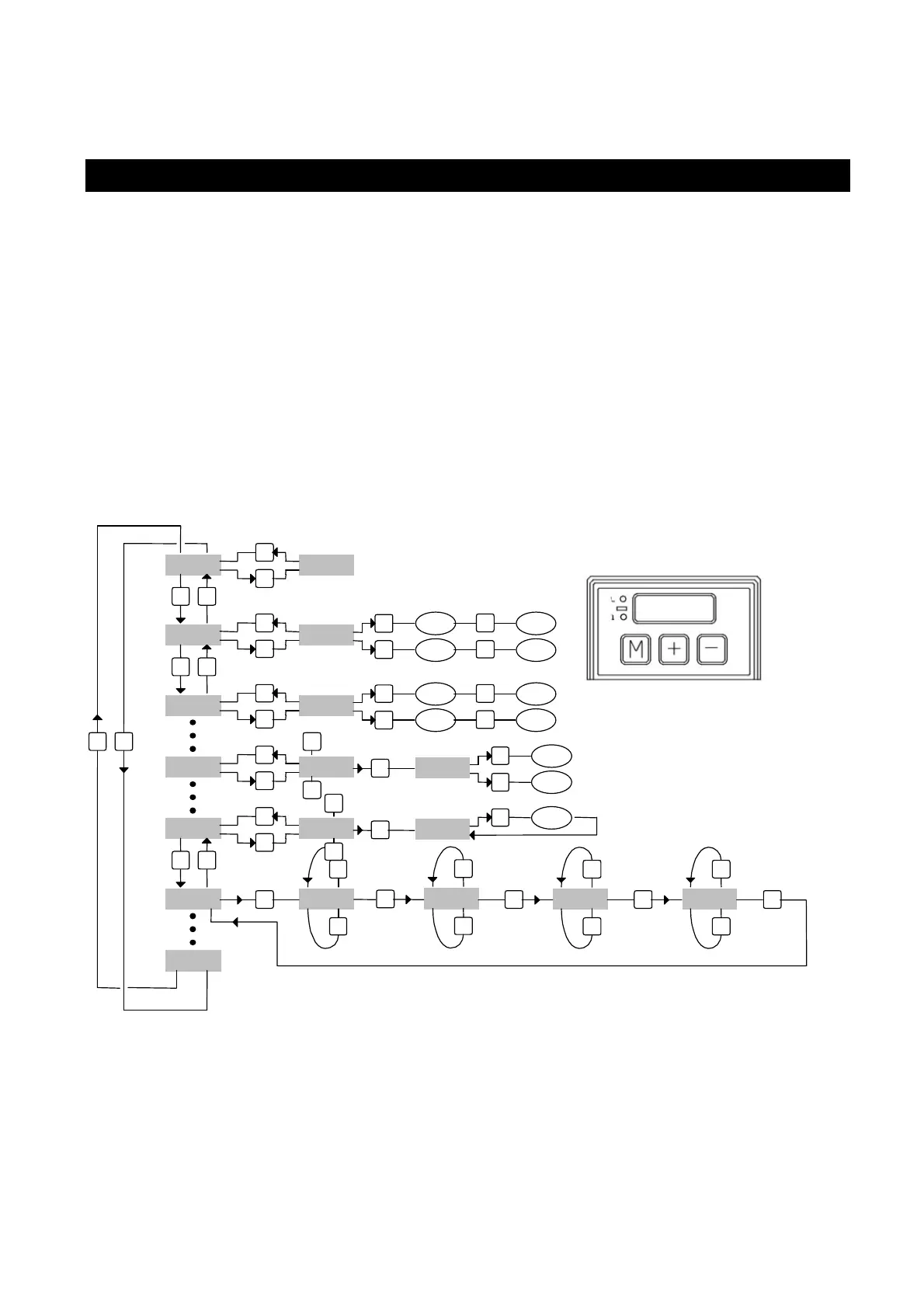

3 Using the keyboard
The keyboard-display module is easy to use. It is used to program the functional data, control the
status of the converter and send commands. It consists of only three keys located directly beneath the
display. The keys are marked: [M], [+], [-]. The [M] key is use to modify the display and
consequently the function of the [+] e [-] keys.
There are two types of display: parameter mode and parameter value mode.
When the converter is powered on, if there is no alarm, the user sees ‘IDLE’ or ‘RUN’ on the screen,
depending on whether the converter is on or off. This is also the position of the Pr0 parameter.
To view all the parameters, press the [+] o [-] keys. If you want to verify the value, press the [M] key.
When the value is displayed, it can be modified by using the [+] e [-] keys. To return to parameter
mode, press the [M] key again.
The type of display depends on the type of parameter displayed.
If you need to increment or decrement quickly the value of a parameter, you can do this by pressing
the [M] key while the increment [+] key or decrement [-] key is held down.
M
Pr. 01
Pb. 40
+
-
+
-
Pr. 02
+
-
In. 00
In. XX
+
-
M
XXXXX
M
M
XXXXX
+
-
+ 1
+ 9
M
- 1
- 9
M
M
M
XXXXX
+
-
+ 1
+ 9
M
- 1
- 9
M
M
M
b40.XX
+
-
1
0
M
M
XX
+
done
M
PLC inst.
M
+
-
1st oper.
M
+
-
2nd oper.
M
+
-
3rd oper.
M
+
-
Pb. 99
M
XX
+
-
b99.XX
M
+
-
IDLE
Keypad
