6 PARAMETERS AND PROGRAMMING
The torque, speed, acceleration and position control functions are carried out by special digital
electronics.
In this section we explain how parameters are set and the meaning of each parameter. We also
provide the functional block diagram and the description of advanced functions. The system is easy
to use and flexible.

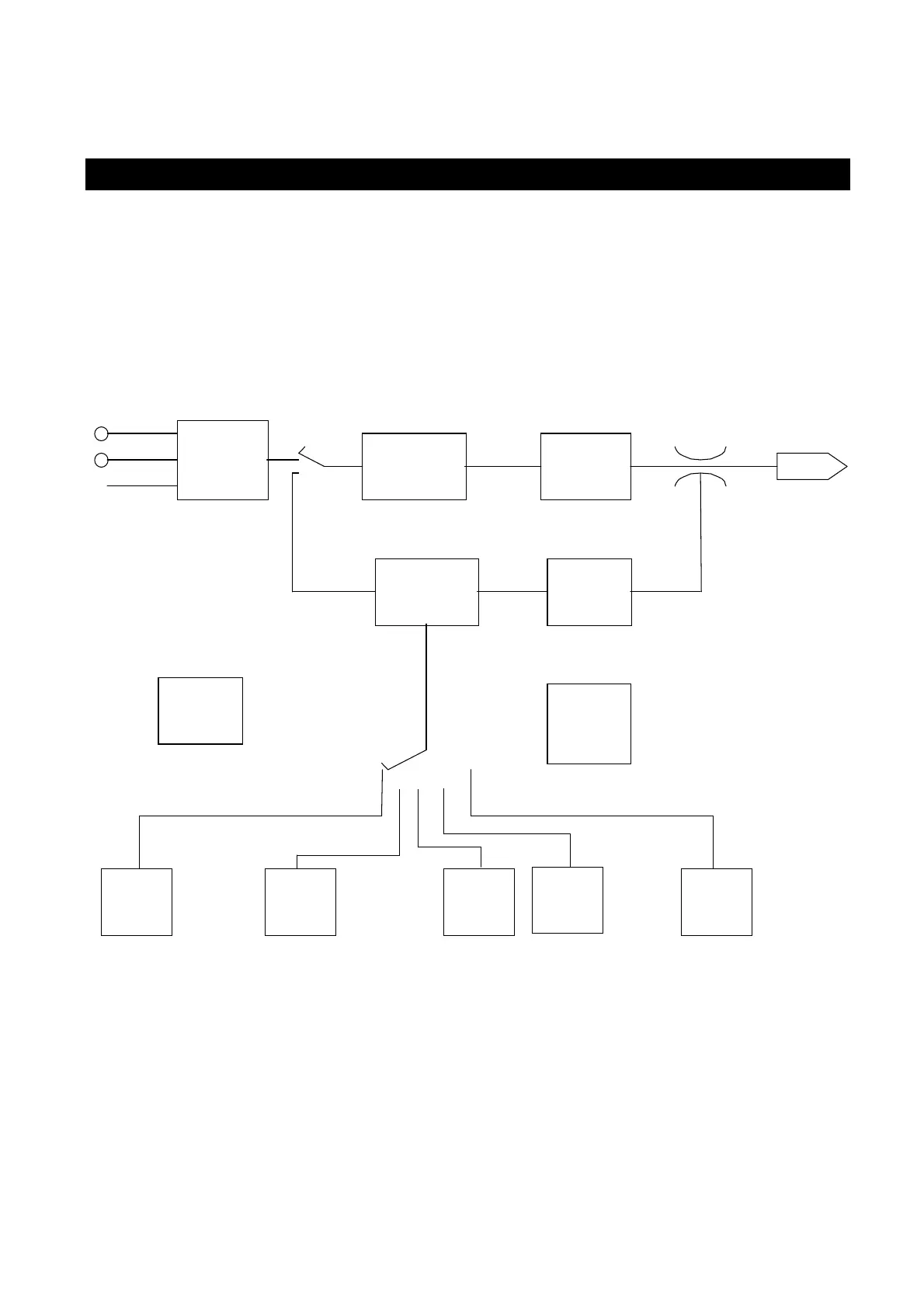

In the diagram below the general block diagram of the part of the converter that is controlled by
parameters is presented.
The main block diagram and the diagrams for special functions (operating modes) are described later
in more detail.
How to associate inputs/outputs to the parameters of the converter is described in the chapter,
The
pico-PLC
.
The parameters are divided on the basis of their function in the following way.
REFERENCE
MANAGEMENT
LIMIT SWITCH
&
STOP
SPEED
REGULATOR
OPERATING
MODE
MANAGEMENT
LIMIT
TORQUE
TORQUE
analogue
digital
internal
SPEED
WINDOW
TORQUE
CONTROL
DIGITAL
LOCK
CAM
ELECTR.
CAN
MANAGEMENT
ALARMS
b40.2
Pr31
DEMAND
and
POSITIONER
REAL TIME
CAM
ELECTR.
DOUBLE
