Parker Hannifin S.p.A Divisione S.B.C. user’s manual TWIN-N and SPD-N
107
b70.9

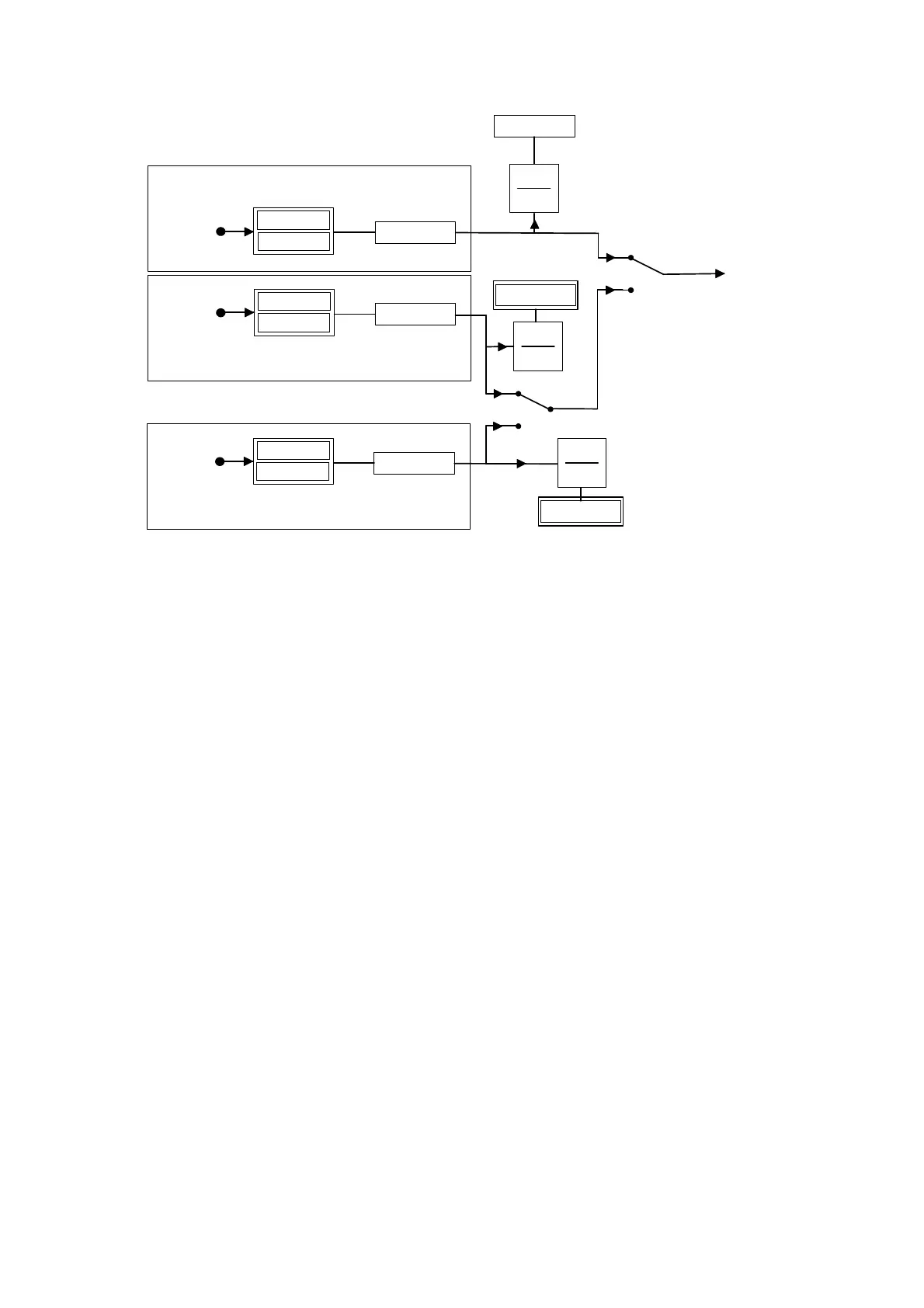

Master
speed
d
dt
Pr159
Pr157:156
Pr67:66
Pr154
Pr155
Pr53
Pr52
X2
X1
Reference multiplier
encoder IN
Counter encoder
IN
Counter CAN
input
Master speed
Reference divider encoder IN
Reference CAN
divider
reference CAN multiplier
Encoder
input
b42.5
encoder
Encoder
CAN input
d
dt
Pr54
Pr216
Pr215:214
Pr212
Pr213
IN2/IN3
counter Fre/dir
Master speed
Reference Fre/dir
divider
Freq/Dir
Quadra.
b42.4
Freq/dir – Quadrature
Reference Fre/dir multiplier
b70.13
d
dt
Master reference
(operative mode)
7.7.10 Encoder CAN
If this function is enable, it is possible to generate and receive the “encoder like” signals by
the CAN line, which replaces quadratures signal.
The running is transparent, respect to the traditional encoder signals: the CAN line must be
connected instead of quadratures signals, and must be considered that every encoder signal is
available every 1,024msec over the CAN, and the signal has 4byte for data.
It is possible to have up to a maximum of three encoder signals, if the speed of the CAN is
1Mbs, and only one encoder signal if the speed is 500kbs.
This function is not available when OPM15 is active.
The drive needs some bit and parameters about the correct operation:
b70.8: enable the encoder CAN function, it activates at the successive switching on
after save the setting of the bit.
b70.9: selects the counter by CAN or encoder input for the OPM.
b70.10: enable the encoder CAN virtual through the parameter pointed from Pr158.
Pr154: reduction ratio numerator of the input encoder counting by CAN.
Pr155: reduction ratio denominator of the input encoder counting by CAN.
Pr156:157: counter encoder CAN
Pr158: pointer to the parameter to send as virtual encoder on the CAN.
Pr159: speed encoder IN via CAN
