Parker Hannifin S.p.A. Divisione S.B.C. user’s manual TWIN-N and SPD-N
55

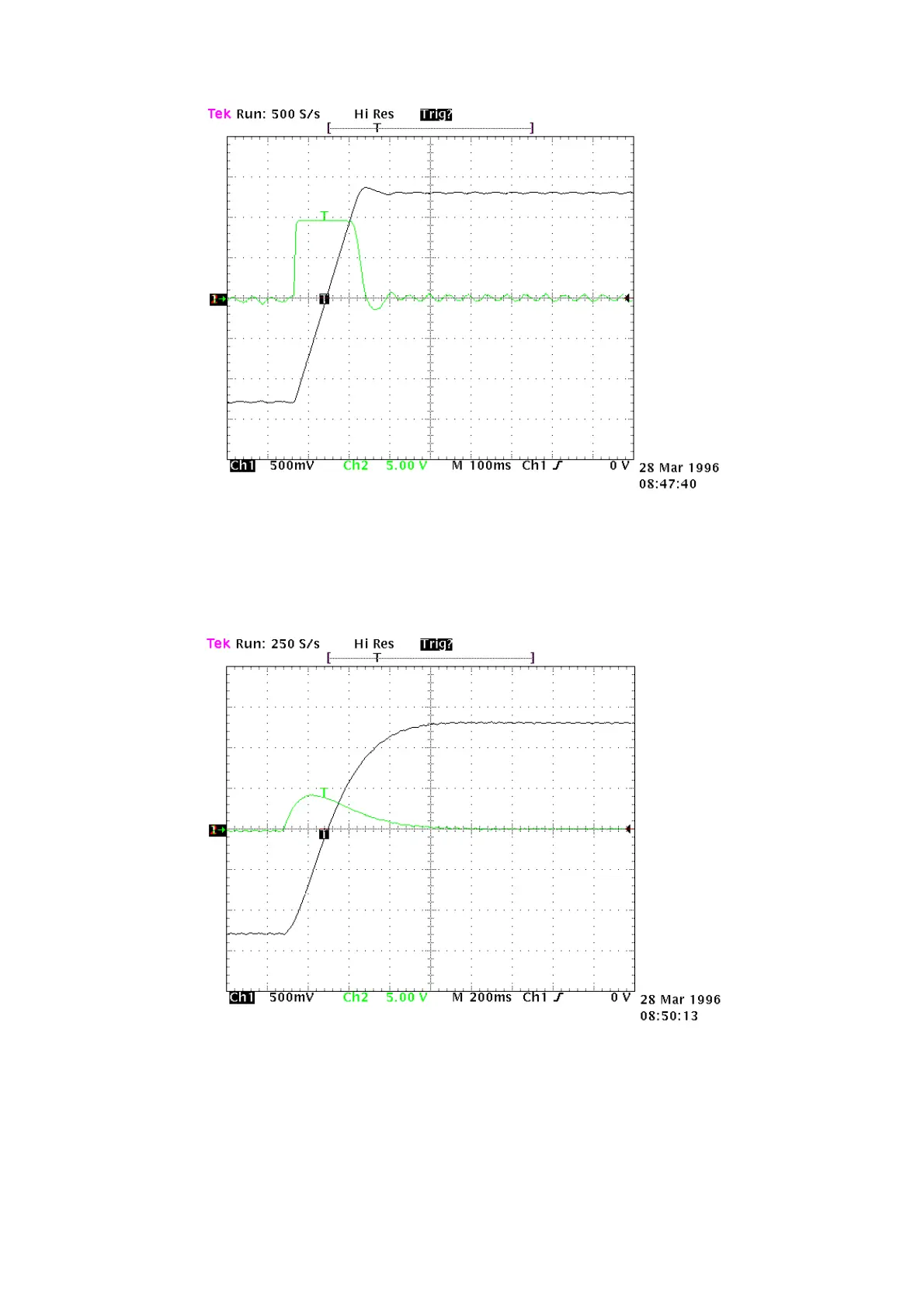

Fig. 6
If mechanical parts are used which very easily tend to enter into oscillation, we recommend you
use very low values of Pr16. In this configuration the SLVD_N typically dampens the torque request
of the motor in order to avoid triggering mechanical oscillations. This configuration is shown in
figure 7.
Fig. 7
