SEcnON I
GENERAL DESCRIPTION AND SPECIFICAnONS
1.1 INTRODUCnON
This section provides a physical description, functional description, and specifications for
the
03000 Series Disk Drive, Models 03300 and 03400, manufactured by the PERTEC
Division of PERTEC Computer Corporation, Chatsworth, california.
1.1.1 MODEL IDENTIFICATION
To simplify identification of 03000 Series Disk Drives, Figure 1-1 Illustrates the breakdown
of code combinations employed by PERTEC.
03XXX-XXXX-XXX
'L- Optional Designator
WX = Write Protect Switches
XU = Unit Number Selector Switch
SC = Special Configuration-
OptionallnputiOutput Interface
N
= Normal
C
= Compatible--
S
= Special-
Number of Sectors
Sector Configuration
I = Electronic on Index Only Cartridge
E
= Electronic on Multi-Notched Cartridge
M = Mechanical
Speed Classification (Spindle rpm)
1 = 1500
2 = 2400
Removable Cartridge I Fixed Disk Configuration
1 = 5440-type Cartridge Only (100 tpi)
2
= 5440-type Plus Fixed Disk (100 or 200 tpi)
3 = 2315-typeCartridge Only (100tpi)
4 = 2315-type Plus f'lxed Disk (100 or 200 tpi)
Density
3
= 2200 bpi, 100 tpi
4
= 2200 bpi, 200 tpi
Basic Designator
• As specifically ordered; not described in this manual.
--Electrically compatible with controllers designed to interlace to another manufacturer's
disk drive.

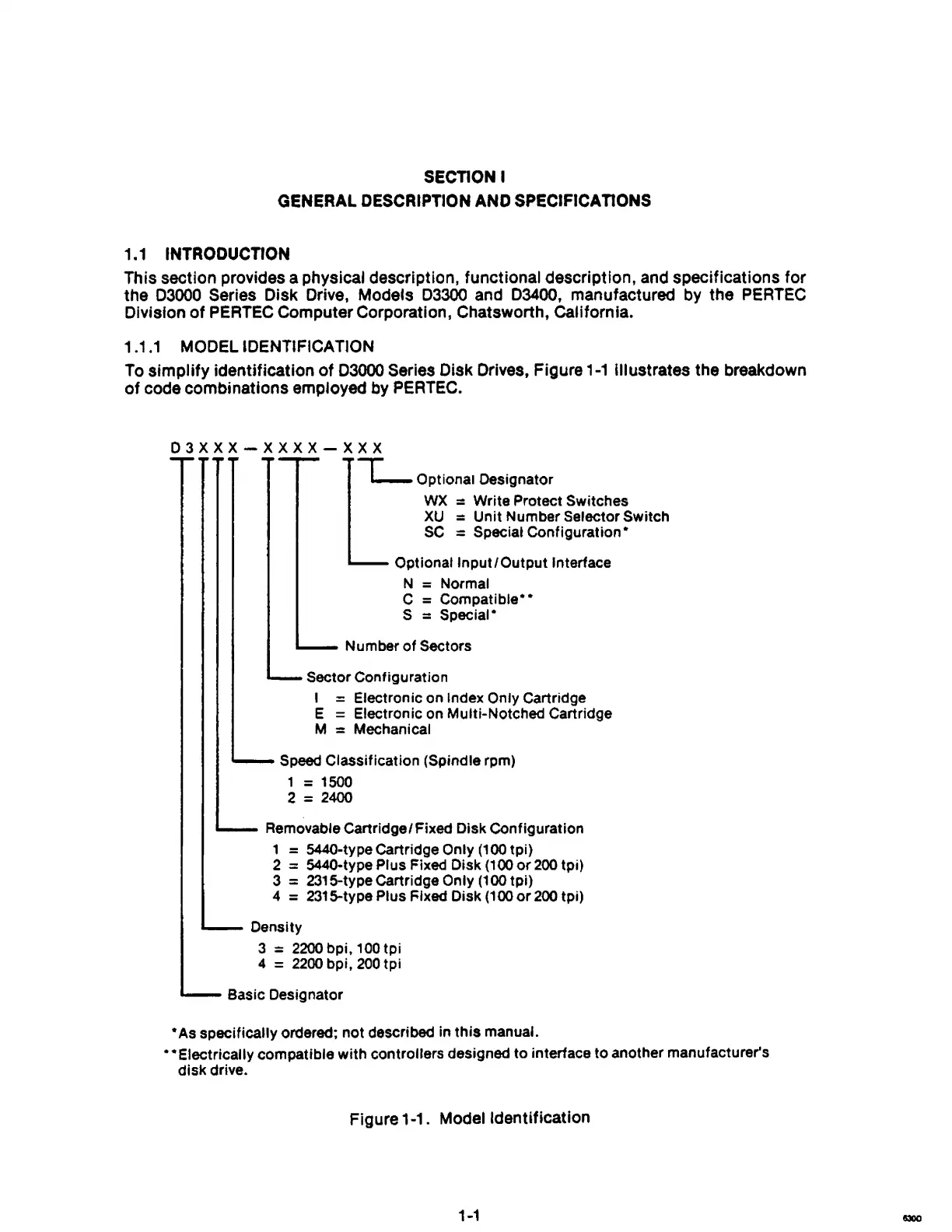

Figure 1-1. Model Identification
1-1
