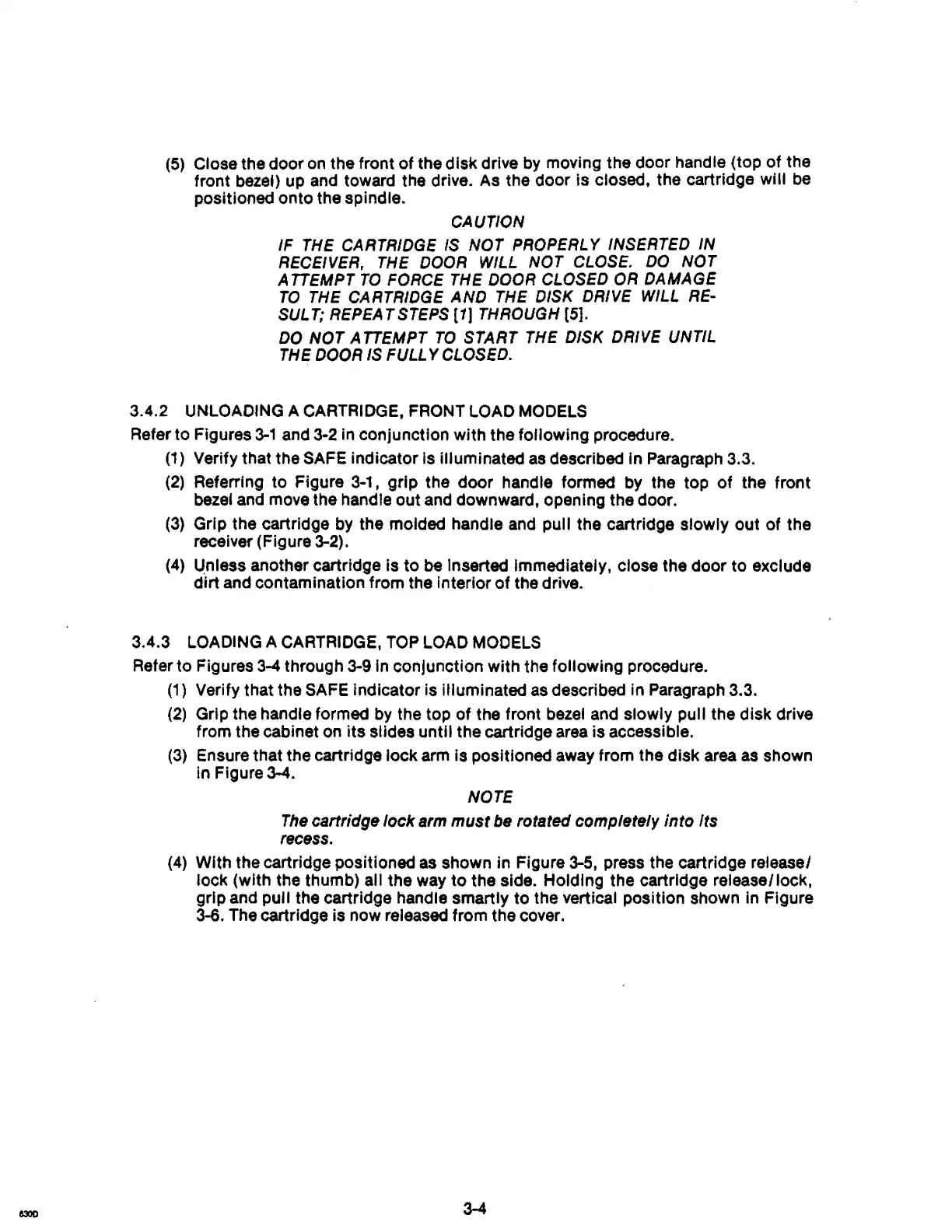

(5)
Close the door
on
the front
of
the disk drive
by
moving the door handle (top
of
the
front bezel) up
and
toward the drive. As the door is closed, the cartridge will
be
positioned onto the spindle.
CAUTION
IF
THE CARTRIDGE IS
NOT
PROPERLY INSERTED IN
RECEIVER, THE DOOR WILL
NOT
CLOSE. DO
NOT
A TTEMPT
TO
FORCE THE DOOR CLOSED OR DAMAGE
TO
THE CARTRIDGE
AND
THE DISK DRIVE WILL RE-
SUL
T;
REPEA T STEPS
(1)
THROUGH
[5}.
DO
NOT
ATTEMPT
TO
START THE DISK DRIVE UNTIL
THE DOOR IS FULL Y CLOSED.
3.4.2 UNLOADING A CARTRIDGE, FRONT LOAD MODELS
Refer to Figures
3-1
and 3-2 in conjunction with the following procedure.
(1) Verify that the SAFE indicator Is Illuminated
as
described In Paragraph 3.3.
(2) Referring to Figure 3-1, grip the door handle formed by the top
of
the front
bezel and move the handle out and downward, opening the door.
(3) Grip the cartridge by the molded handle and pull the cartridge slowly
out
of the
receiver (Figure 3-2).
(4) Llnless another cartridge is
to
be Inserted Immediately, close the door to exclude
dirt and contamination from the interior of the drive.
3.4.3 LOADING A CARTRIDGE,
TOP
LOAD MODELS
Reter
to
Figures 3-4 through 3-9
In
conjunction with the following procedure.
(1)
Verify that the SAFE Indicator is illuminated
as
described in Paragraph 3.3.
(2) Grip the handle formed
by
the top
of
the front bezel and slowly pull the disk drive
from the cabinet on its
slides until the cartridge area is accessible.
(3) Ensure that the cartridge lock
arm
Is positioned away from the disk area
as
shown
in Figure
3-4.
NOTE
The
cartridge lock arm
must
be rotated completely
into
Its
recess.
(4)
With the cartridge positioned as shown in Figure 3-5, press the cartridge releasel
lock (with the thumb) all the way
to
the side. Holding the cartridge releasellock,
grip and
pull the cartridge handle smartly
to
the vertical position shown
In
Figure
~.
The cartridge is now released from the cover.
3-4
