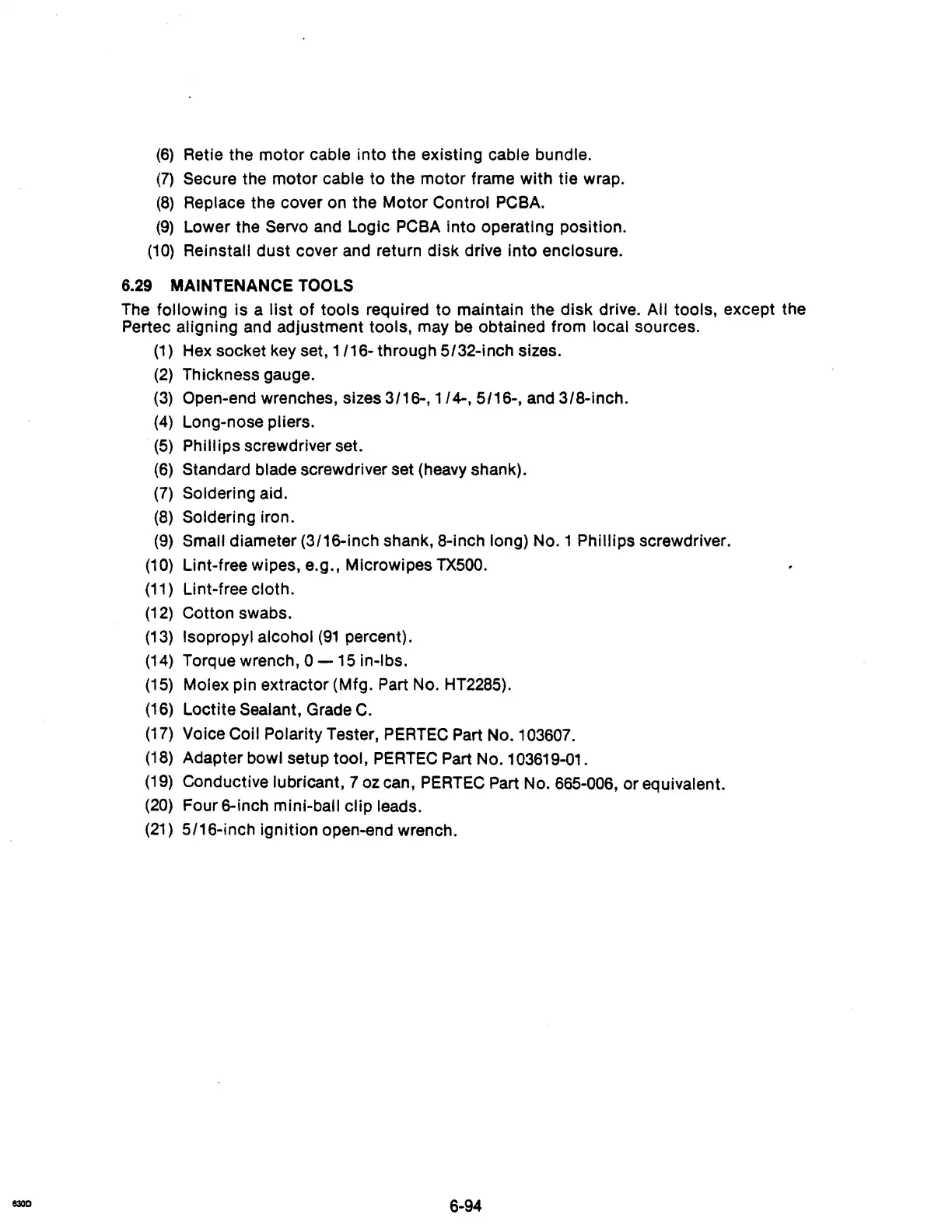

(6)
Retie the motor cable into the existing cable bundle.
(7)
Secure the motor cable to the motor frame with tie wrap.
(8)
Replace the cover on the Motor Control PCBA.
(9)
Lower the Servo and Logic PCBA into operating position.
(10)
Reinstall dust cover and return disk drive into enclosure.
6.29
MAINTENANCE TOOLS
The following is a
list
of
tools required to maintain the
disk
drive. All tools, except the
Pertec
aligning
and
adjustment tools, may
be
obtained from local sources.
(1)
Hex socket key set,
1/16-
through 5/32-inch sizes.
(2)
Thickness gauge.
(3)
Open-end wrenches, sizes
3/16-,
1/4-,
5/16-,
and 3/8-inch.
(4)
Long-nose pliers .
.
(5)
Phillips screwdriver set.
(6)
Standard blade screwdriver set (heavy shank).
(7)
Soldering aid.
(8)
Soldering iron.
(9)
Small diameter (3/16-inch shank, 8-inch long) No.1 Phillips screwdriver.
(10)
Lint-free wipes, e.g., Microwipes
TX500.
(11)
Lint-free cloth.
(12)
Cotton swabs.
(13)
Isopropyl alcohol
(91
percent).
(14)
Torque wrench, 0
-15
in-Ibs.
(15)
Molex pin extractor (Mfg. Part No. HT2285).
(16)
Loctite Sealant, Grade
C.
(17)
Voice Coil Polarity Tester,
PERTEC
Part No. 103607.
(18)
Adapter bowl setup tool,
PERTEC
Part No. 103619-01.
(19)
Conductive lubricant, 7
oz
can,
PERTEC
Part No. 665-006, or equivalent.
(20)
Four 6-inch mini-ball clip leads.
(21)
5/16-inch ignition open-end wrench.
6-94
