PCC D3400 - Page 244

MOTOR CONTROL PCSA
(COVER REMOVED PCBA
COMPONENTS NOT
SHOWN I
EXIT POSITION OF DRIVE
MOTOR CABLE AND
ROUTING TO MOTOR
CONTROL PCBA
1834

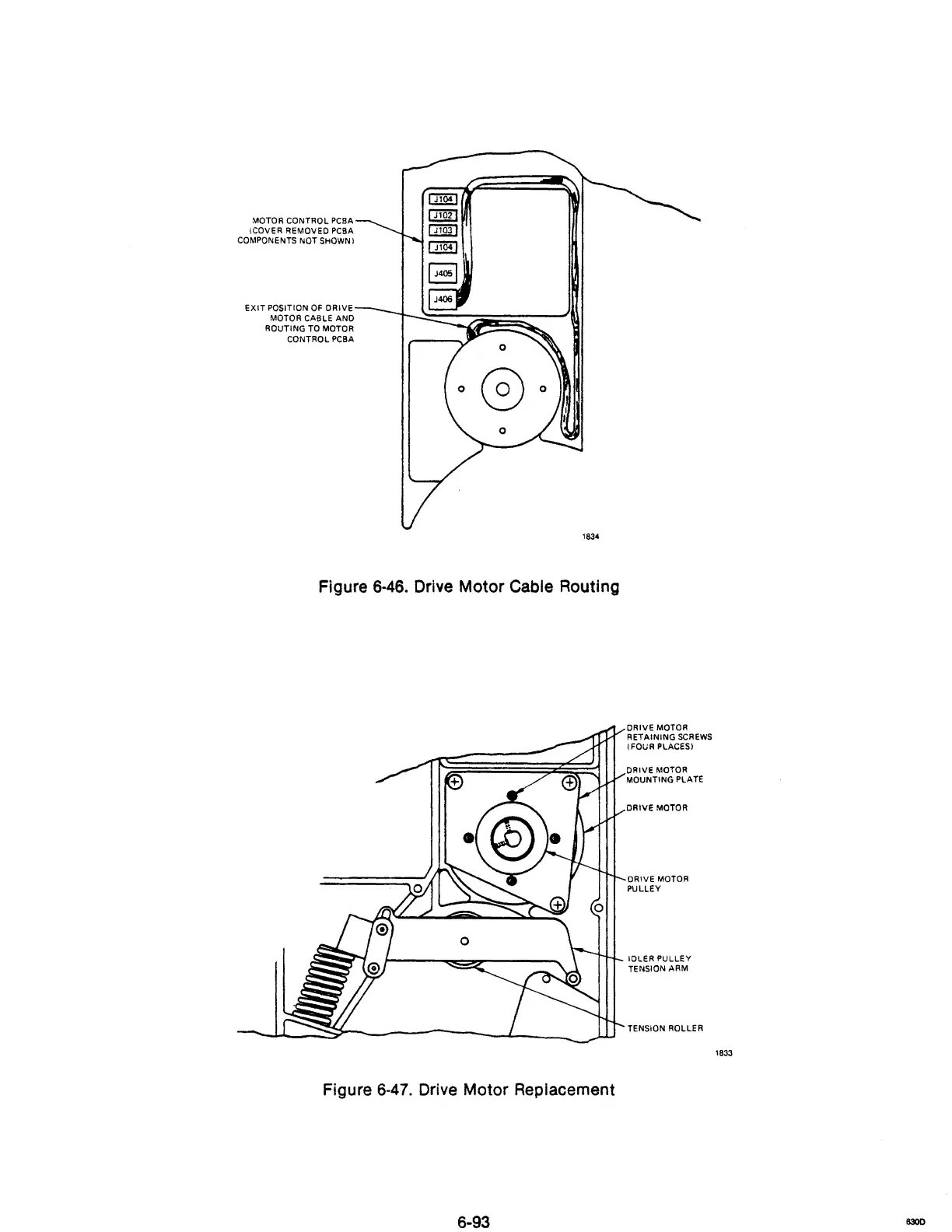

Figure 6-46. Drive Motor Cable Routing
Figure
6·47. Drive Motor Replacement
6-93
DRIVE MOTOR
RETAINING
SCREWS
(FOUR PLACES)
DRIVE MOTOR
MOUNTING PLATE
DRIVE MOTOR
DRIVE MOTOR
PULLEY
IDLER PULLEY
TENSION ARM
TENSION ROLLER
1833
8300
