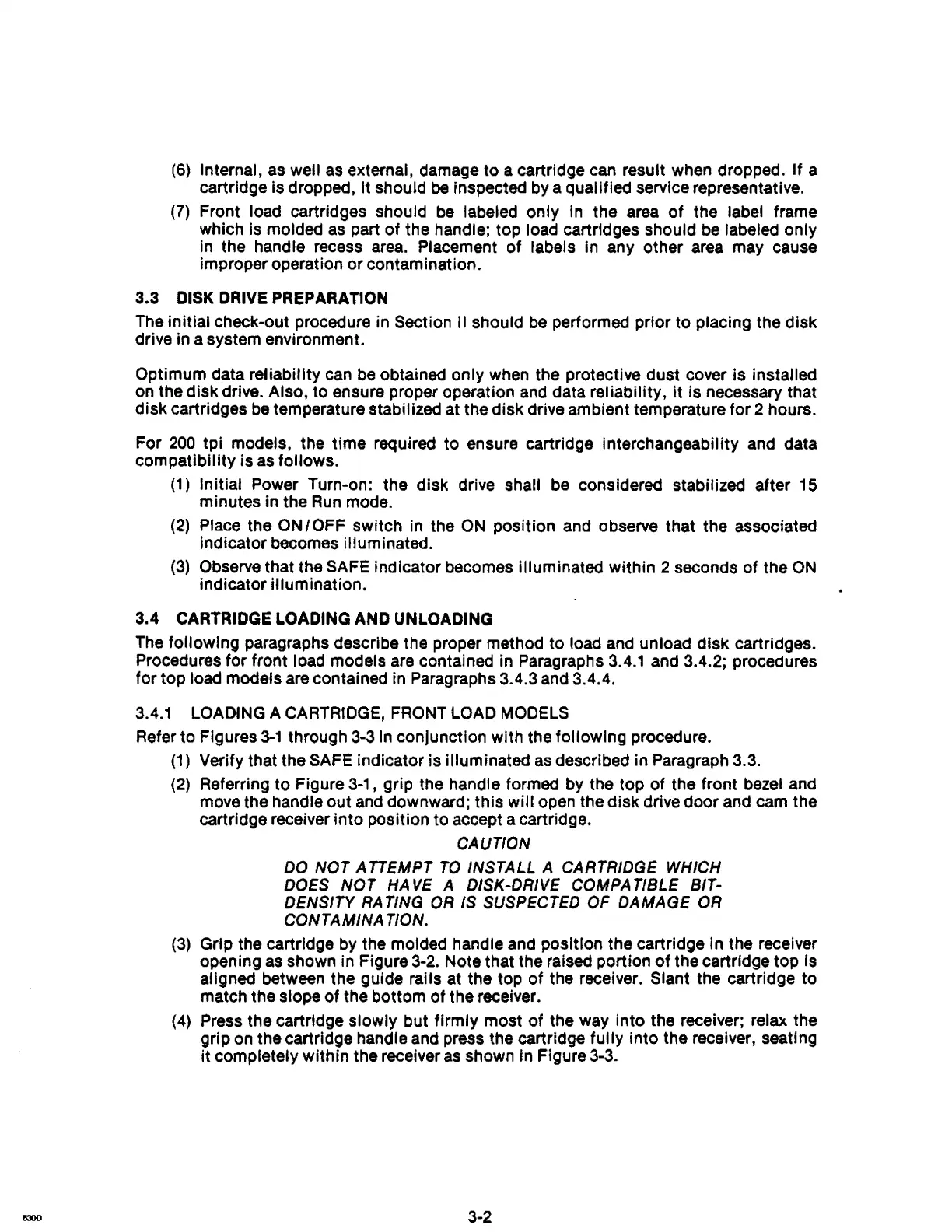

(6)
Internal,
as
well as external, damage to a cartridge can result when dropped. If a
cartridge is dropped, it should
be Inspected
by
a qualified service representative.
(7)
Front load cartridges should
be
labeled only
in
the area
of
the label frame
which is molded
as
part of the handle; top load cartridges should
be
labeled only
in
the handle recess
area.
Placement of labels in any other area may cause
improper operation or contamination.
3.3
DISK
DRIVE
PREPARATION
The initial check-out procedure in Section
II
should
be
performed prior to plaCing the disk
drive in a system environment.
Optimum data reliability
can
be
obtained only when the protective dust cover is installed
on
the disk drive. Also, to ensure proper operation
and
data reliability,
it
is necessary that
disk cartridges
be temperature stabilized at the disk drive ambient temperature for 2 hours.
For
200
tpi models, the time required to ensure cartridge interchangeability and data
compatibility is
as
follows.
(1)
Initial Power Turn-on: the disk drive shall be considered stabilized after
15
minutes in the
Run
mode.
(2)
Place the
ON
IOFF switch in the
ON
position and observe that the associated
indicator becomes illuminated.
(3)
Observe that the SAFE indicator becomes illuminated within 2 seconds of the
ON
indicator illumination.
3.4
CARTRIDGE
LOADING
AND
UNLOADING
The
following paragraphs describe the proper method to load
and
unload disk cartridges.
Procedures for front load models
are
contained in Paragraphs
3.4.1
and 3.4.2; procedures
for top load models are contained in Paragraphs 3.4.3 and 3.4.4.
3.4.1
LOADING A CARTRIDGE, FRONT LOAD
MODELS
Refer to Figures
3-1
through
3-3
in
conjunction with the following procedure.
(1)
Verify that the SAFE indicator is illuminated
as
described in Paragraph 3.3.
(2)
Referring
to
Figure 3-1, grip the handle formed by the top of the front bezel and
move the handle out
and
downward; this will open the disk drive door and cam the
cartridge receiver into position to accept a cartridge.
CAUTION
DO
NOT ATTEMPT
TO
INSTALL A CARTRIDGE
WHICH
DOES
NOT
HA
VE
A DISK-DRIVE
COMPA
TIBLE BIT-
DENSITY
RA
TlNG
OR
IS
SUSPECTED
OF
DAMAGE
OR
CON
TA
MINA
TION.
(3)
Grip the cartridge
by
the molded handle and position the cartridge in the receiver
opening
as
shown in Figure 3-2. Note that the raised portion
of
the cartridge top is
aligned between the guide
rails at the top of the receiver. Slant the cartridge to
match the slope of the bottom of the receiver.
(4)
Press the cartridge slowly but firmly most of the way into the receiver; relax the
grip on the cartridge handle and press the cartridge
fully into the receiver, seating
it
completely within the receiver
as
shown in Figure 3-3.
3-2
