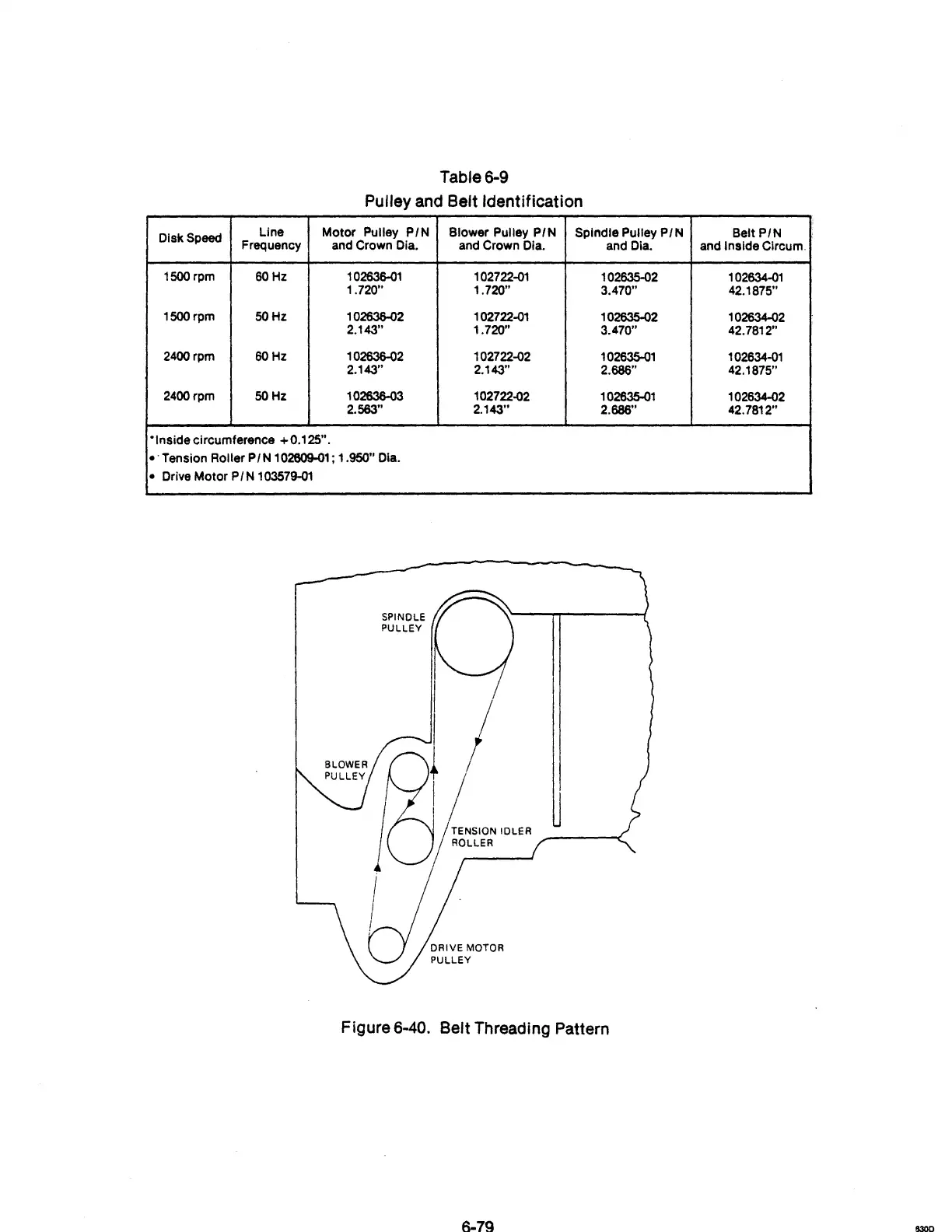

PCC D3400 - Pulley and Belt Identification

Table 6-9
Pulley and Belt Identification
Disk Speed
Line
Motor Pulley PIN Blower Pulley PIN
Spindle Pulley PIN
Belt PIN
Frequency
and Crown Dia. and Crown Dia.
and Dia.
and
Inside Circum
1500 rpm
60Hz 102636-01
102722-01
102635-02 102634-01
1.720"
1.720"
3.470" 42.1875"
1500 rpm
50Hz
102636-02
102722-01
102635-02 102634-02
2.143"
1.720"
3.470" 42.7812"
2400 rpm 60Hz
102636-02 102722-02
102635-01 102634-01
2.143" 2.143"
2.686" 42.1875"
24QOrpm 50Hz
102636-03 102722-02
102635-01 102634-02
2.563" 2.143"
2.686" 42.7812"
"Inside circumference + 0.125" .
•. Tension Roller PIN 102609-01; 1.950" Dla.
•
Drive Motor PIN 103579-01
Figure 6-40. Belt Threading Pattern
6-79
