~6

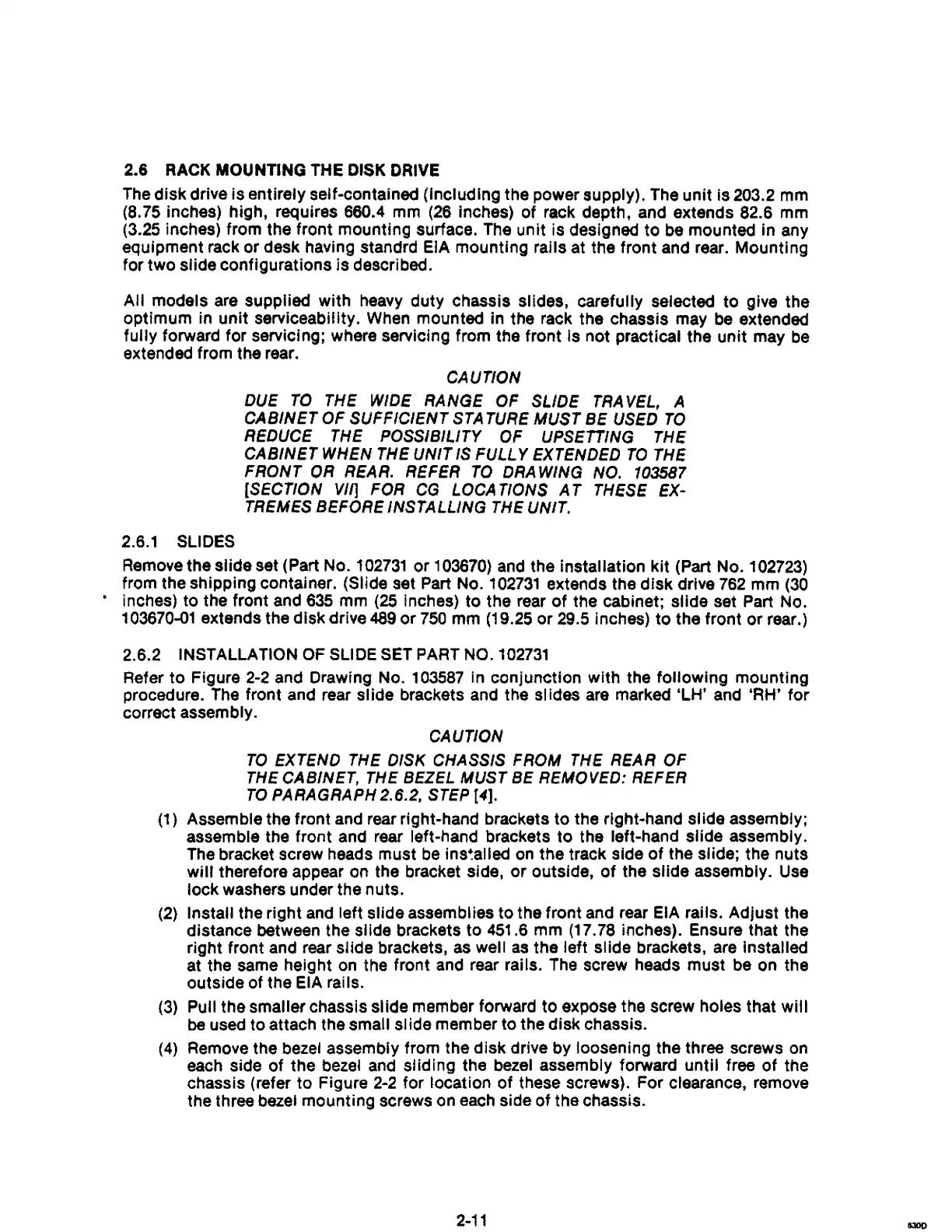

RACKMOUNTINGTHED~KDRWE
The disk drive
is
entirely self-contained (Including the power supply). The unit is 203.2 mm
(8.75 inches) high, requires
660.4
mm
(26
inches) of rack depth, and extends 82.6
mm
(3.25 inches) from the front mounting surface. The unit is designed to
be
mounted in any
equipment rack or desk having standrd
EIA mounting rails at the front and rear. Mounting
for two slide configurations is described.
All models are supplied with heavy duty chassis slides, carefully selected to give the
optimum in unit serviceability.
When
mounted in the rack the chassis may
be
extended
fully forward for servicing; where servicing from the front Is not practical the unit may
be
extended from the rear.
2.6.1
SLIDES
CAUTION
DUE
TO
THE WIDE RANGE
OF
SLIDE TRAVEL, A
CABINET
OF
SUFFICIENT
STATURE
MUST
BE
USED
TO
REDUCE THE POSSIBIL/TY OF UPSETTING THE
CABINET
WHEN THE UNIT IS FULL Y EXTENDED
TO
THE
FRONT
OR REAR. REFER
TO
DRA WING NO. 103587
[SECTION V/I] FOR
CG
LOCA TlONS A T THESE EX-
TREMES BEFORE
INSTALLING
THE UNIT.
Remove the slide set (Part No.
102731
or 103670)
and
the installation kit (Part No. 102723)
from the shipping container.
(Slide set Part No.
102731
extends the disk drive
762
mm
(30
• inches) to the front and
635
mm
(25
inches) to the rear
of
the cabinet; slide set Part No.
103670-01
extends the disk drive
489
or
750
mm (19.25 or 29.5 inches) to the front or rear.}
2.6.2
INSTALLATION
OF
SLICE
SET
PART
NO.
102731
Refer
to
Figure
2-2
and Drawing No.
103587
in conjunction with the following mounting
procedure. The front and rear
slide brackets and the slides
are
marked 'LH' and 'RH' for
correct assembly.
CAUTION
TO
EXTEND THE DISK CHASSIS FROM THE REAR
OF
THE CAB/NET, THE BEZEL
MUST
BE REMOVED: REFER
TO
PARAGRAPH
2.6.2, STEP [4].
(1)
Assemble the front and rear right-hand brackets to the right-hand slide assembly;
assemble the front and rear left-hand brackets to the left-hand slide assembly.
The bracket screw heads must
be
ins~alled
on
the track side
of
the slide; the nuts
will therefore appear on the bracket side,
or
outside,
of
the slide assembly. Use
lock washers under the nuts.
(2)
Install the right and left slide assemblies to the front and rear
EIA
rails. Adjust the
distance between the
slide brackets to 451.6 mm (17.78 inches). Ensure that the
right front and rear
slide brackets,
as
well
as
the left slide brackets, are installed
at the same height
on
the front
and
rear rails.
The
screw heads must
be
on the
outside of the
EIA
rails.
(3)
Pull the smaller chassis slide member forward to expose the screw holes that will
be
used to attach the small sl ide member to the disk chassis.
(4)
Remove the bezel assembly from the disk drive by loosening the three screws
on
each side of the bezel
and
sliding the bezel assembly forward until free
of
the
chassis (refer to Figure
2-2
for location of these screws). For clearance, remove
the three
bezel mounting screws on each side of the chassis.
2-11
