T'ERMINATIOK
BOARD
CAPTIVE
R£TAIIilING
SCR£W

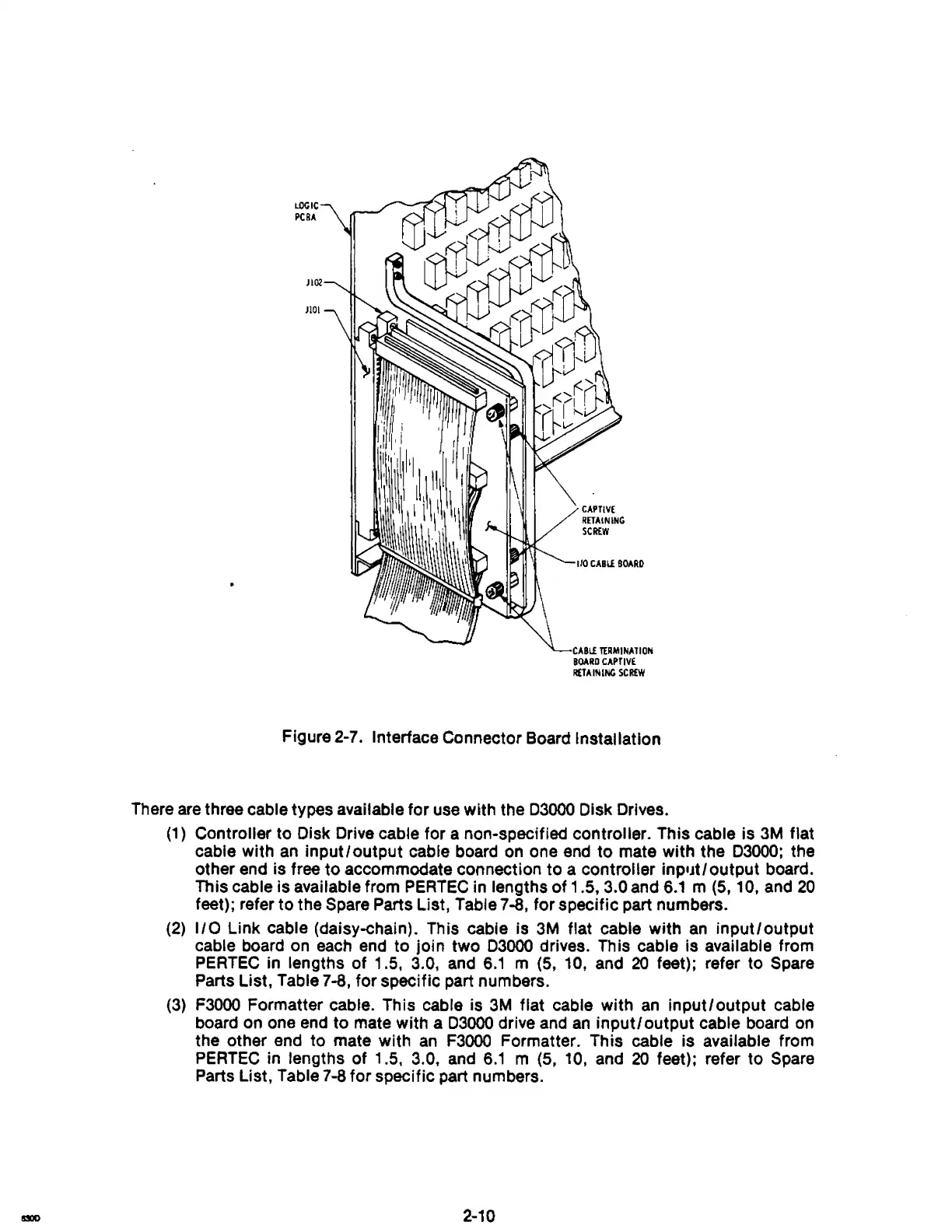

Figure 2-7. Interface Connector Board Installation
There
are
three cable types available for use with the 03000 Disk Drives.
(1)
Controlier to Disk Drive cable for a non-specified controller. This cable is
3M
flat
cable with
an
input/output cable board
on
one
end
to mate with the 03000; the
other end is free
to
accommodate connection to a controller inplJt/output board.
This cable is available from
PEATEC
in lengths of 1.5, 3.0 and
6.1
m
(5,
10, and
20
feet); refer to the
Spare
Parts List, Table
7-8,
for specific part numbers.
(2)
110 Link cable (daisy-chain). This cable is
3M
flat cable with
an
input/output
cable board
on
each
end
to
join two 03000 drives. This cable is available from
PERTEC
in
lengths of 1.5, 3.0,
and
6.1
m
(5,
10,
and
20
feet); refer to Spare
Parts List, Table
7-8,
for specific part numbers.
(3)
F3000
Formatter cable. This cable is
3M
flat cable with
an
Input/output cable
board
on
one
end
to mate with a 03000 drive
and
an
inputloutput cable board
on
the other
end
to mate with
an
F3000
Formatter. This cable is available from
PERTEC
in lengths of 1.5, 3.0.
and
6.1
m (5, 10, and
20
feet); refer to Spare
Parts List, Table
7-8
for specific part numbers.
2-10
